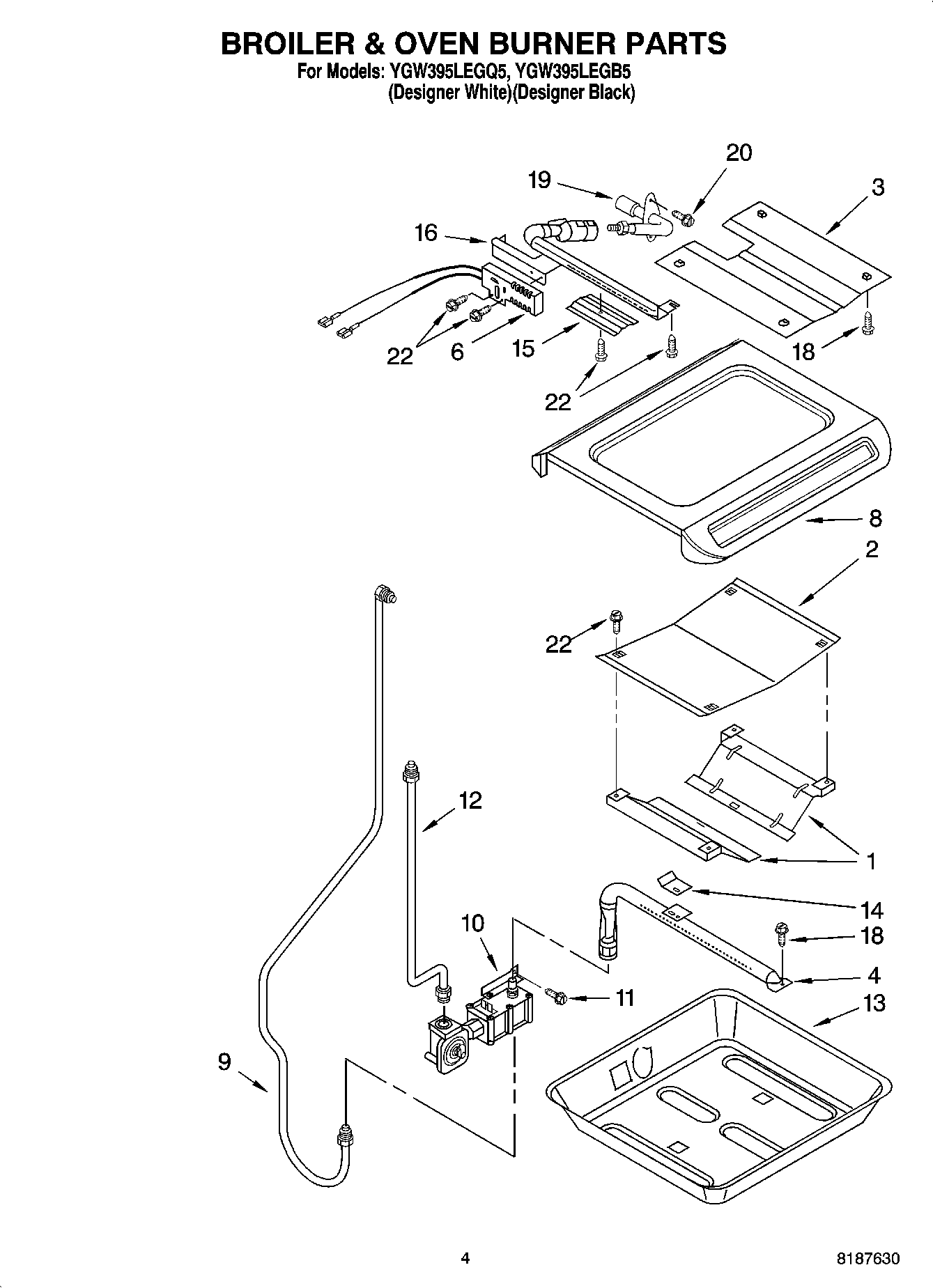

YGW395LEGQ5 04 – BROILER & OVEN BURNER PARTSadmin2025-04-26T11:07:00+00:00YGW395LEGQ5 04 – BROILER & OVEN BURNER PARTS
Products
| Position | Product |
|---|
| 1 | Shield, Oven (2) |
| 2 | Flame Shield, Bake |
| 3 | Shield, Flame |
| 4 | Burner, Bake |
| 6 | WP9782065 Whirlpool Oven Igniter |
| 8 | Pan, Oven Bottom |
| 9 | Tubing, Broil |
| 10 | WP9755424 Whirlpool Gas Valve |
| 11 | Screw. 1/4-20 x 1/2 (4) |
| 12 | Tubing, Valve |
| 13 | Pan Support, Bake |
| 14 | Bracket, Bake |
| 15 | Deflector, Broil |
| 16 | Burner, Broil |
| 18 | Screw, 10-24 x 1/2 |
| 19 | Fitting, Broiler |
| 20 | WP4159387 Whirlpool Compactor Screw |
| 22 | Screw, 10 x 3/8 |
