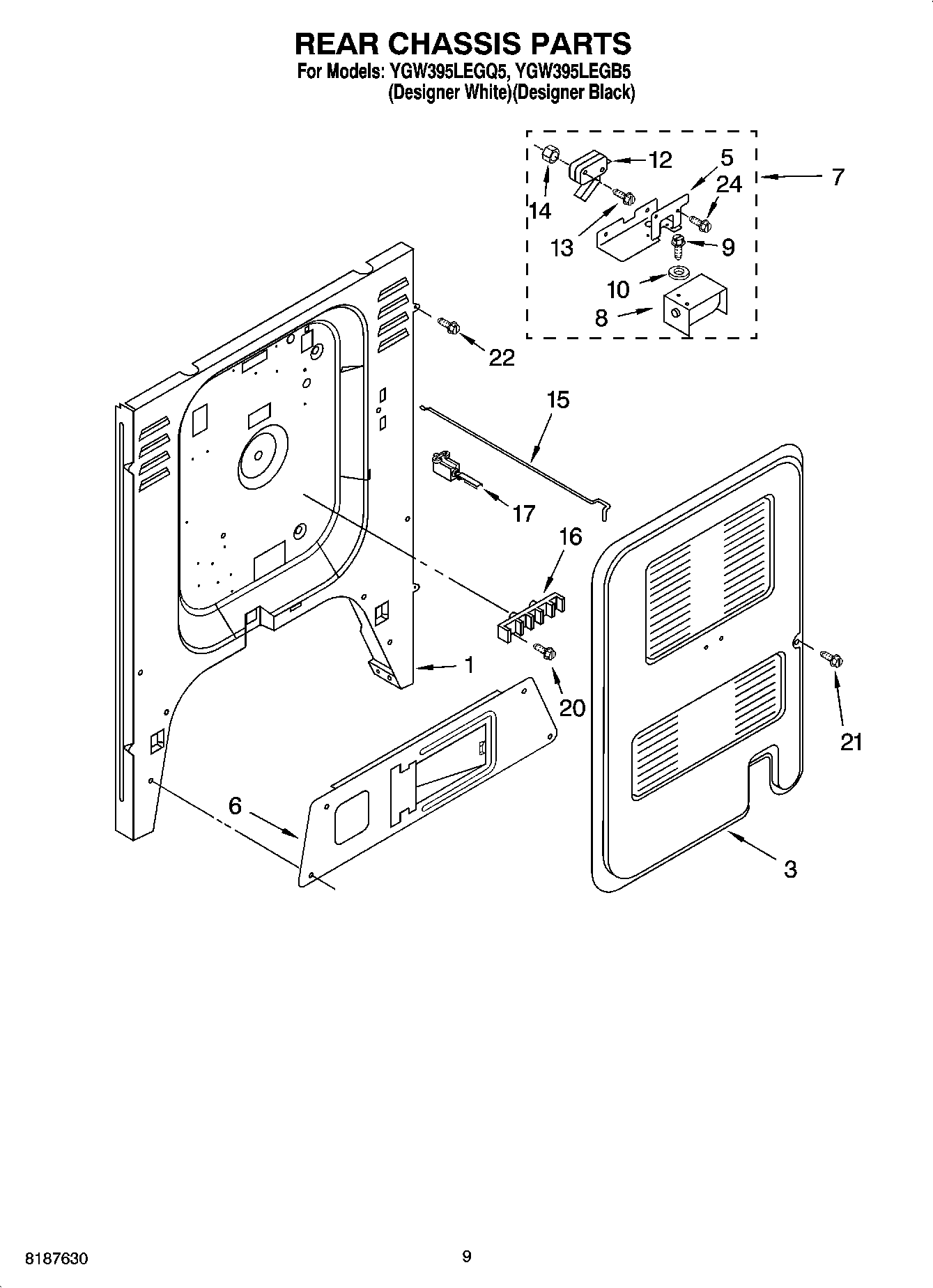

YGW395LEGQ5 07 – REAR CHASSIS PARTS

YGW395LEGQ5 07 – REAR CHASSIS PARTS

Written by

in

YGW395LEGQ5 07 – REAR CHASSIS PARTS

Products

Position	Product
	WPL ARI136692A
	WPL 9753267PT
	WPL 9753267PB
	WPL 9753054
	WPL 9752769
	WPL 9753267PW
	WPL 9752717
	WPL 9751868
	Grease
	Insulation
	WPL 9750744
	Insulation, Rear
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	WPL 9754013
	WPL 9781055
	WPL ARI136691A
	WPL ARI136690A
	WPL ARI136689A
	WPL ARI136688A
	WPL ARI136687A
	WPL ARI136686A
	WPL ARI136685A
	WPL ARI136684A
	WPL ARI136683A
	WPL ARI136682A
	WPL 9782345
	WPL 9782344
	WPL 9755256
	WPL 9754289
	18 Ga. 80~c Rating (Red)
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	285006 Whirlpool Spray
	8528351 Whirlpool Clip
	Clip, Wire
	WPL 9751745
	3400964 Whirlpool Oven Clip
	Hanger, Cable
	Wire, 25` Roll (Black 14 Ga.)
	WA906B Whirlpool Cooktop Glass Scraper
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	WPL 799832
	FOIL, ALUMINUM OVEN (18“ X 25 )
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Green)
	Almond (Uncut)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Blue)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	Back panel, Chassis
3	Panel, Rear Cover
5	Bracket, Lock
6	Bracket, Regulator Valve
7	Oven Lock Assembly (Includes No.21)
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
16	WP8203546 Whirlpool Terminal Block
17	Single Position Device (Not Serviced)
20	Screw, (2) 10-16 x 1
21	340184 Whirlpool Screw
22	Screw (4) 10 x 3/8
24	WP4159387 Whirlpool Compactor Screw
