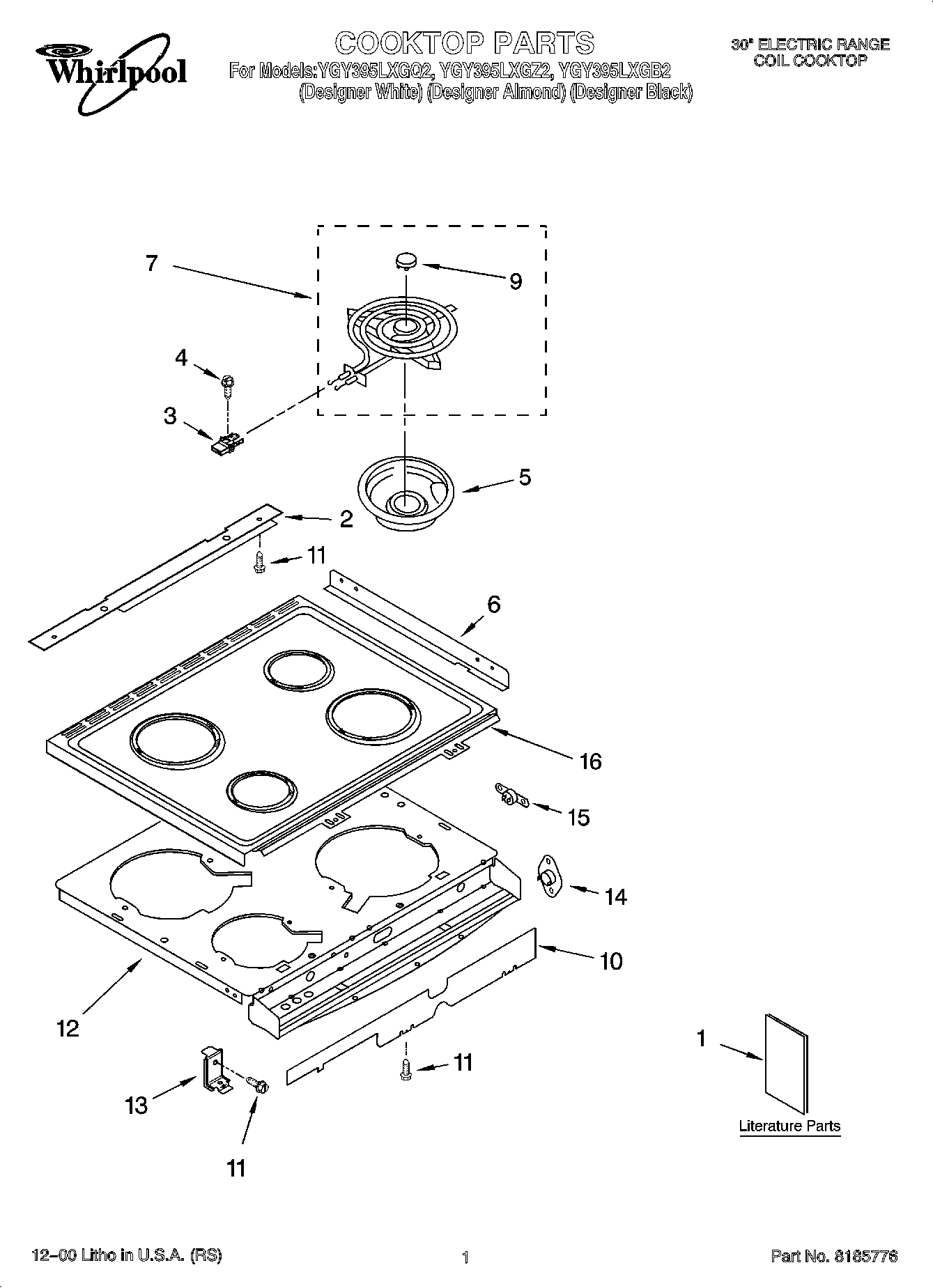

YGY395LXGB2 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Template, Anti-Tip)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Back Cover Install Instructions)
1	Literature Parts (Use & Care Guide (French))
1	Literature Parts (Use & Care Guide)
2	Trim, Rear
3	Receptacle Clip
4	WP313808 Whirlpool Screw
5	WPW10290350 Whirlpool Stove Drip Bowl
5	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6	Trim, Side (2)
7	WPW10259868 Whirlpool Surface Heating Element
7	Element, Surface (Coil, 6“ LR (Accu-Simmer))
7	WPW10259865 Whirlpool Range 8" Surface Element
9	Medallion, (1) (Accu-Simmer)
9	Medallion, (4)
10	Shield, Cover
11	WP4159387 Whirlpool Compactor Screw
12	Support, Cooktop
13	Bracket, Pivot
14	WP9759944 Whirlpool Thermostat
15	Thermostat SPST (205)
16	Cooktop, Coil
16	Cooktop, Coil (Black)
16	Cooktop, Coil (Almond)
