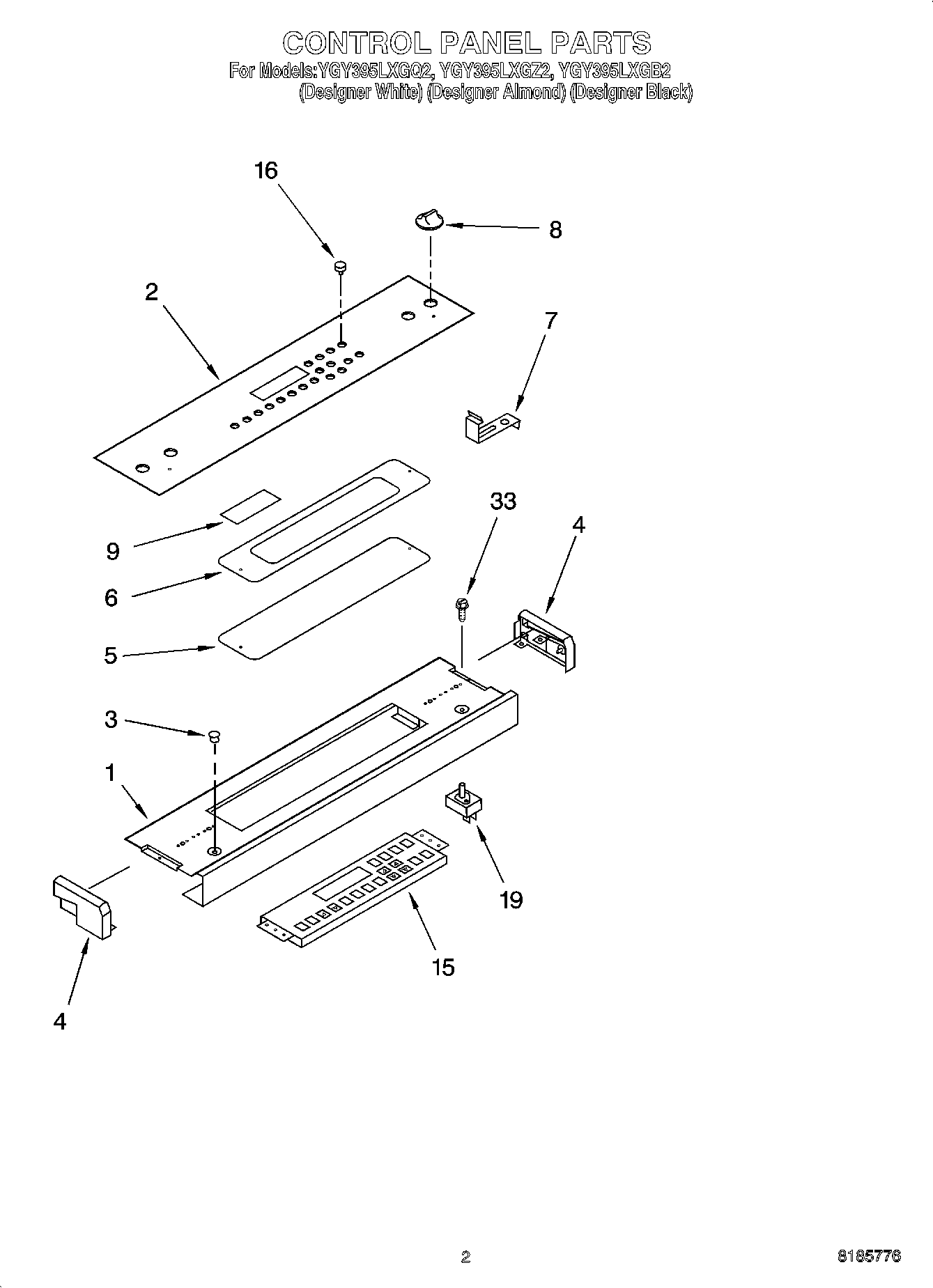

YGY395LXGB2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Almond)
1	Panel, Control
1	Panel, Control (Black)
2	Glass-Console
2	Glass-Console (Black)
2	Glass-Console (Almond)
3	Len`s Indicator (4)
4	(End Cap Right) (Black)
4	End Cap Left (Black)
4	(End Cap Right) (Almond)
4	End Cap Left (Almond)
4	814562 Whirlpool Oven Endcap Panel (Left & Right)
5	Gasket, Cover
6	Cover, Control
7	Clip, Glass (2)
8	Knobs, Control (4) (Black)
8	WP9752405FW Whirlpool Knob
8	Knobs, Control (4) (Almond)
9	Label-WPSI Control
15	Control, Range
16	Knob, Timer (18) (Almond)
16	Knob, Timer (17) (White)
16	Knob, Timer (17) (Black)
19	WP9750643 Whirlpool Infinite Switch
19	WP9750646 Whirlpool Infinite Switch
33	WP3400882 Whirlpool Screw
