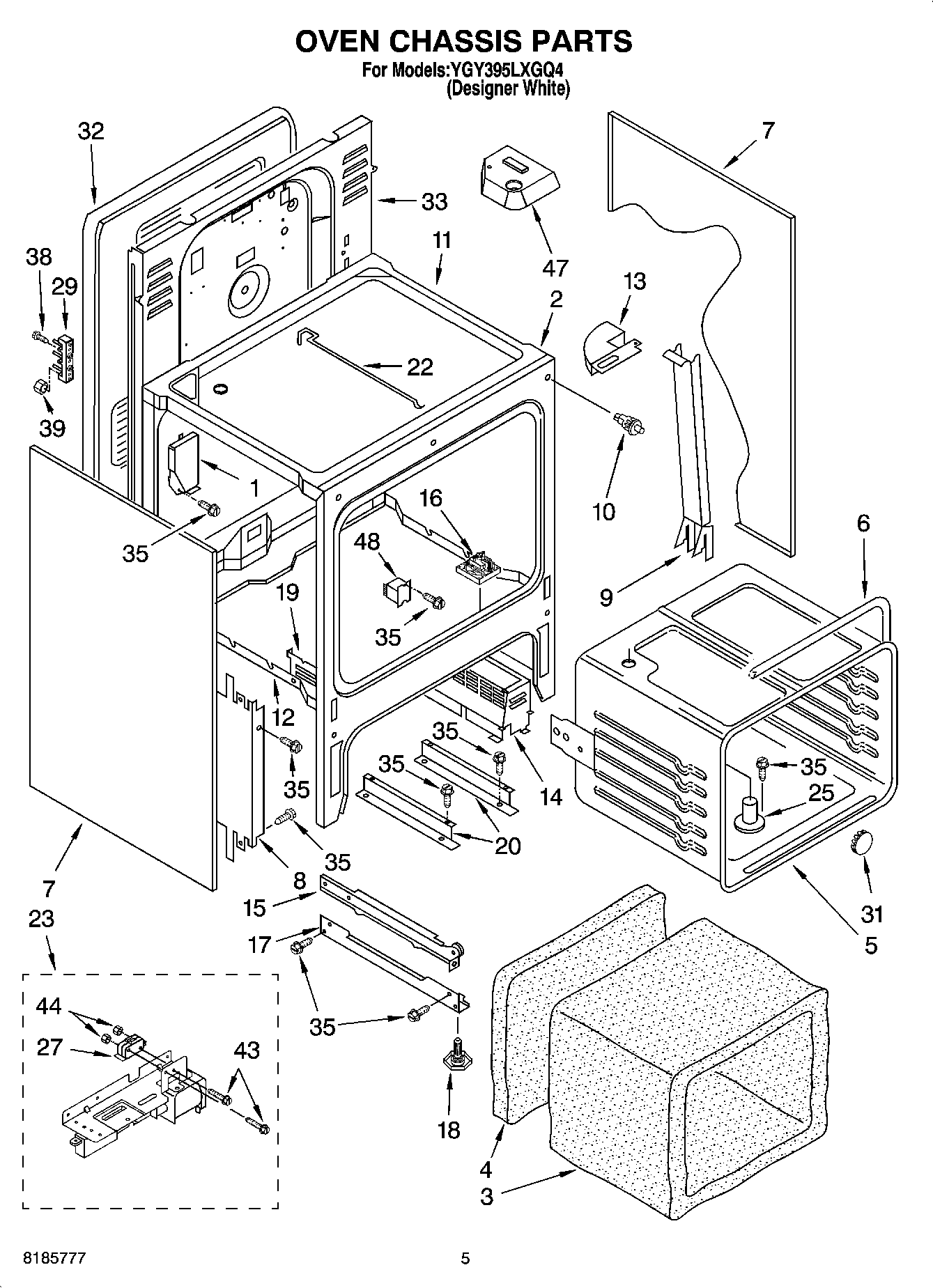

YGY395LXGQ4 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Vent Box, Oven
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Shield, Insulation
9	Duct, Side Fan
10	Door Switch (Oven Light)
11	Burner Box
12	Oven Bottom
13	Duct, Top
14	Support, Fan
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
22	Rod, Lock
23	Oven Lock Assembly
25	Vent Tube
27	Switch, Interlock
29	WP8203546 Whirlpool Terminal Block
31	Button, Plug
32	Panel, Rear Cover
33	Back panel, Chassis
35	WP4159387 Whirlpool Compactor Screw
38	Screw, (2) 10-16 x 1
39	WP112432 Whirlpool Nut Assembly
43	Screw, (2)
44	Nut (2)
47	Block, Balance
47	340184 Whirlpool Screw
48	Relay
