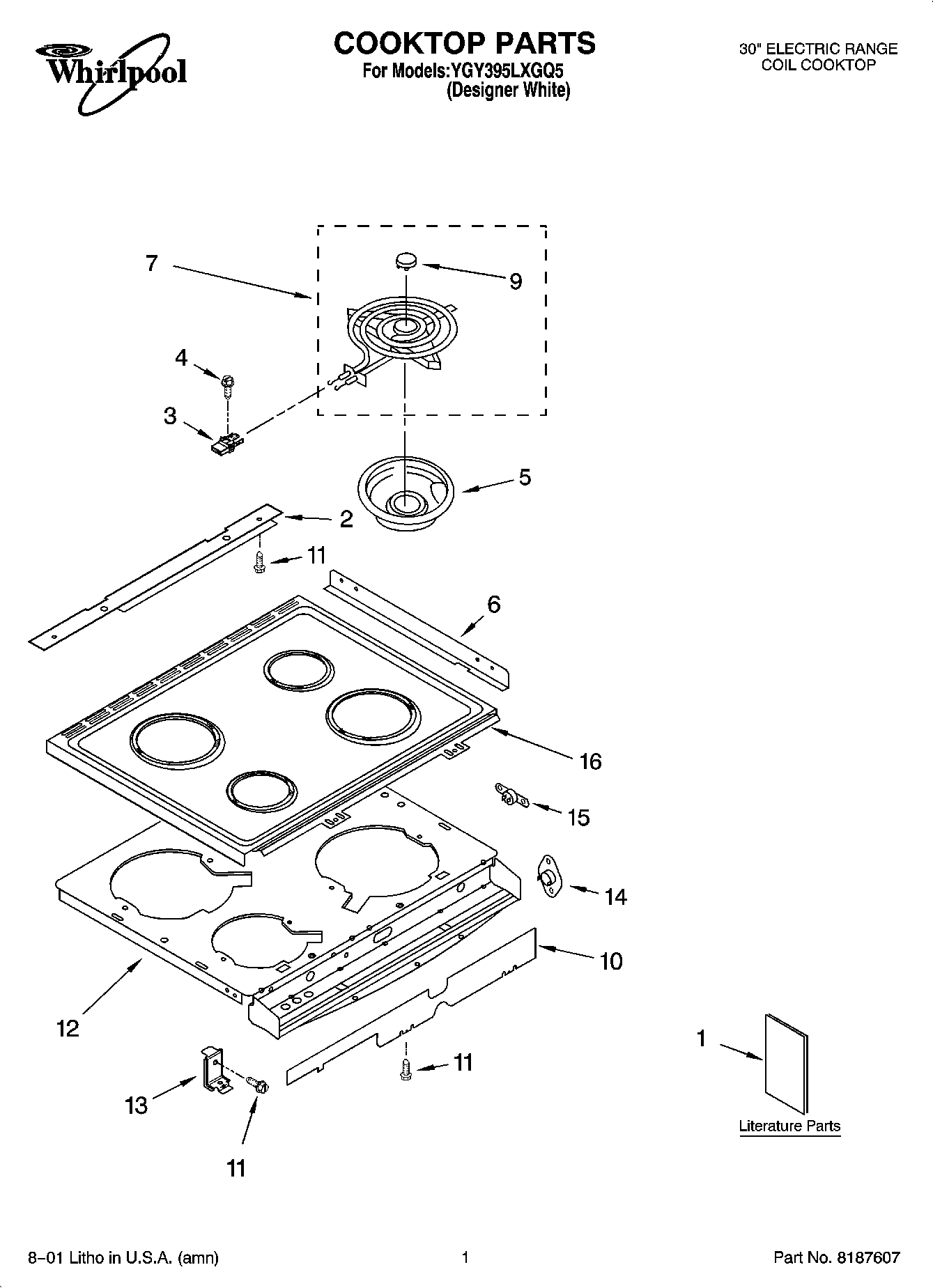

YGY395LXGQ5 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Tech sheet)
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Back Cover Install Instructions)
1Literature Parts (Installation Instructions)
1Literature Parts (Installation Instructions)
1Literature Parts (Template, Anti-Tip)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2Trim, Rear
3Receptacle, Clip
4WP313808 Whirlpool Screw
5WPW10290350 Whirlpool Stove Drip Bowl
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6Trim, Side (2)
7Element, Surface (Coil 8“ RF-LR)
7Element, Surface (Coil, 6“ RF)
7Element, Surface (Coil, 6“ LR (Accu Simmer))
9Medallion, (1) (Accu-Simmer)
9Medallion, (4)
10Shield, Cover
11WP4159387 Whirlpool Compactor Screw
12Support, Cooktop
13Bracket, Pivot
13Washer, Pivot
14WP9759944 Whirlpool Thermostat
15Thermostat SPST (205)
16Cooktop, Coil
