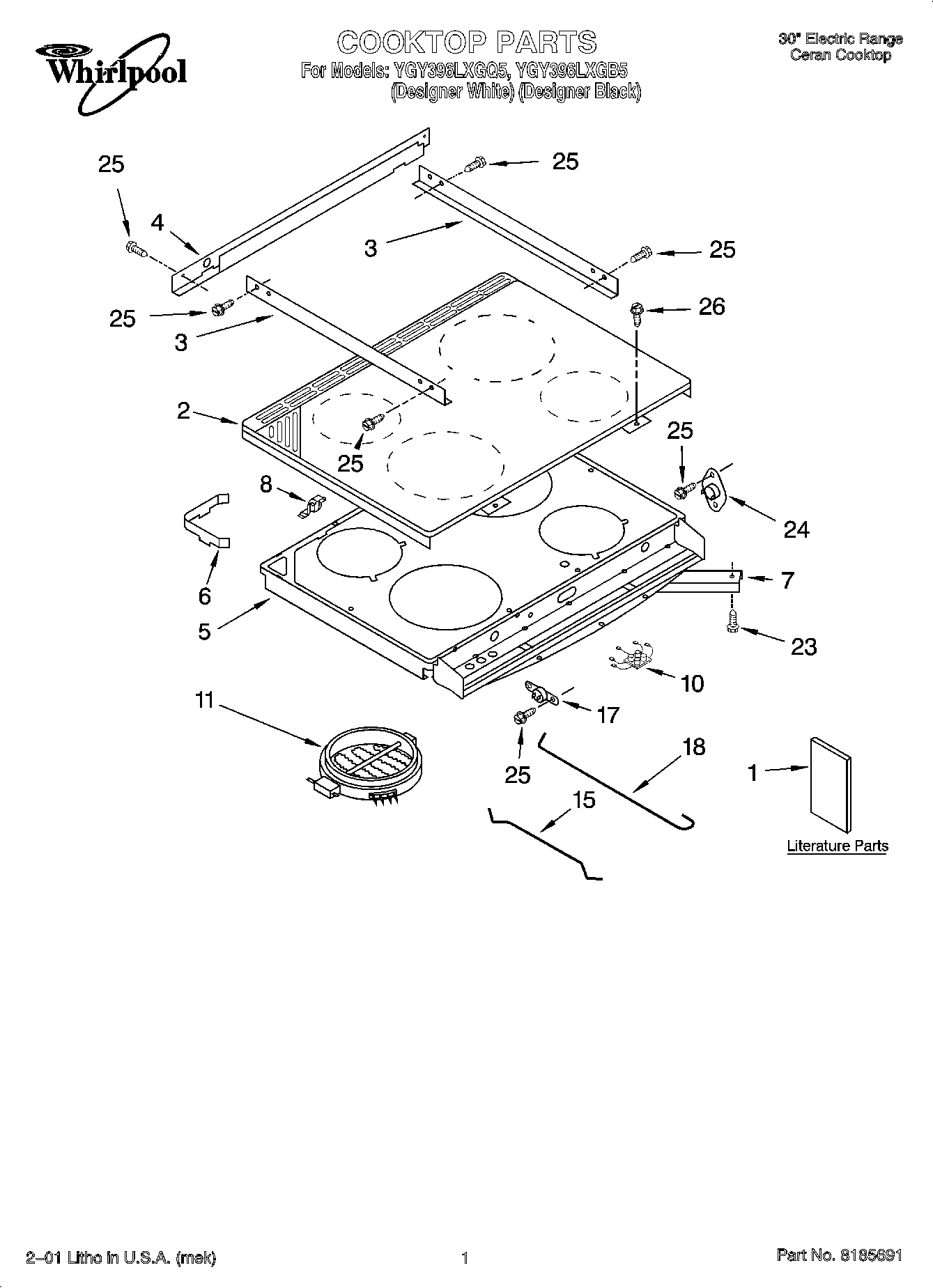

YGY396LXGQ5 01 – COOKTOP PARTS

YGY396LXGQ5 01 – COOKTOP PARTS

Written by

in

YGY396LXGQ5 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Back Cover Install Instructions)
1Literature Parts (Installation Instructions)
1Literature Parts (Template, Anti-Tip)
1Literature Parts (Tech Sheet)
1Literature Parts (Wiring Diagram)
2Cooktop, Ceran (White)
2Cooktop, Ceran (Black)
3Trim, Side (2)
4Trim, Rear
5Support, Element
6Sleeve, Vent
7Brace, Support
8Bracket, Pivot
10Hot Light
11W10823696 Whirlpool Radiant Surface Element
11W10823697 Whirlpool Surface Element
11W10823699 Whirlpool Right Front Surface Element
11W10823698 Whirlpool Surface Element Right Rear
15Rod, Small Ceran Element
17Thermostat SPST (205)
18Rod, Large Ceran Element
23Screw (4) 10 x 1/2
24WP9759944 Whirlpool Thermostat
25WP4159387 Whirlpool Compactor Screw
26Screw
