YGY396LXGQ5 04 – OVEN CHASSIS PARTS

YGY396LXGQ5 04 – OVEN CHASSIS PARTS

Written by

in

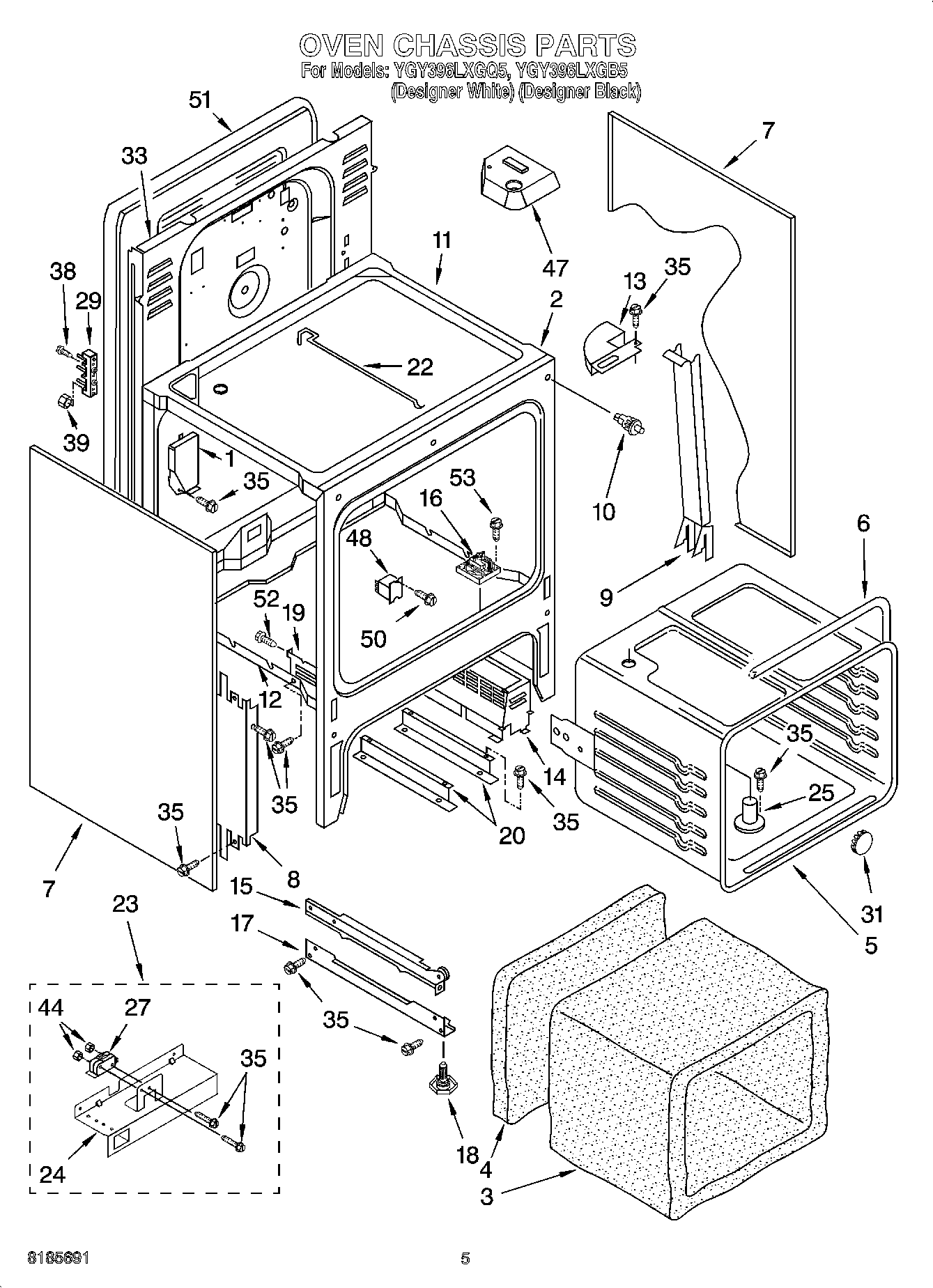

YGY396LXGQ5 04 – OVEN CHASSIS PARTS

Products

PositionProduct
1Vent Box, Oven
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Body, Side (White)
7Body, Side (Black)
8Shield, Insulation
9Duct, Side Fan
10Door Switch (Oven Light)
11Burner Box
12Oven Bottom
13Duct, Top
14Support, Fan
15Drawer Rail, Left
15Rail, Drawer (Right)
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
20Support Rail
22Rod, Lock
23Oven Lock Assembly (Includes Key No. 21)
24Bracket, Lock (Includes Solenoid)
25Vent Tube
27Switch, Interlock
29WP8203546 Whirlpool Terminal Block
31Button, Plug
33Back panel, Chassis
35WP4159387 Whirlpool Compactor Screw
38Screw, (2) 10-16 x 1
39WP112432 Whirlpool Nut Assembly
43Screw, (2)
44Nut (2)
47Block, Balance
48Relay
50Screw (2) 8 x 3/8
51Panel, Rear Cover
52Screw (4) 10 x 1/2
53Screw, (3) No.8 x 1“
