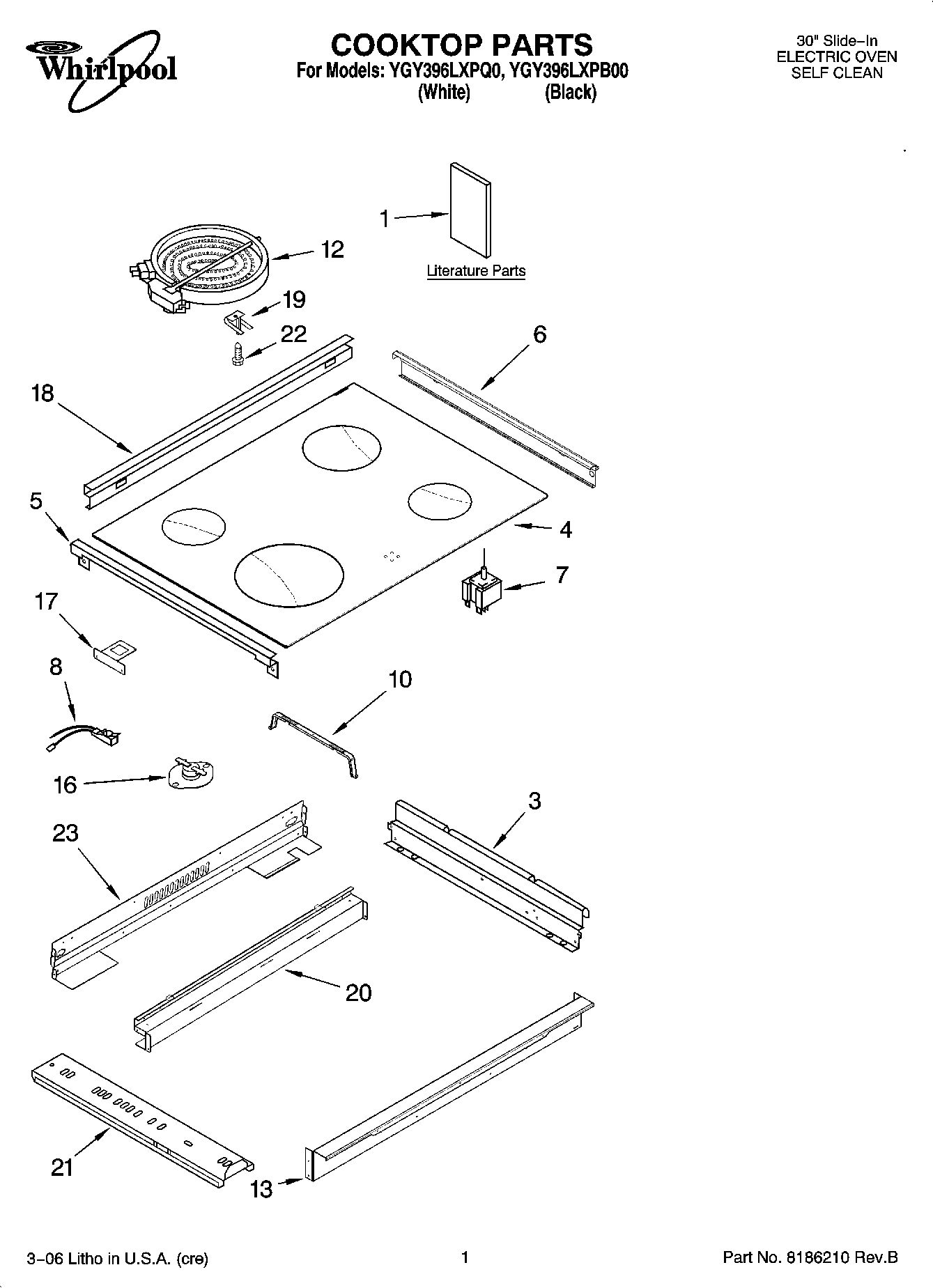

YGY396LXPB00 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet
1	Anti-Tip Instruct.
1	Safe Cooking Tips
1	Installation Instructions
1	Use & Care Guide
1	Use & Care Guide
3	Bracket, Mounting
4	Gasket
4	WPW10539072 Whirlpool Cooktop
4	Cooktop (White)
5	Clip, Ceran (2)
6	Trim-CkTop, SI (White LH)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (White RH)
6	WP3400805 Whirlpool Screw Assembly
6	Trim-CkTop, SI (Black LH)
7	WP9750641 Whirlpool Infinite Switch
7	WP9750638 Whirlpool Infinite Switch
7	WP9750639 Whirlpool Infinite Switch
8	Light, Indicator (Hot Surface)
10	WP9756821 Whirlpool Support
10	WP4449809 Whirlpool Screw
12	W10823698 Whirlpool Surface Element Right Rear
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
12	W10823696 Whirlpool Radiant Surface Element
13	Bracket, Front Support
16	WP9759944 Whirlpool Thermostat
17	Bracket, Ind. Lamp
18	W10491985 Whirlpool Screw
18	Trim, Cooktop Rear (Black)
18	Trim, Cooktop Rear (White)
19	Spring, Locator
20	Bracket, Rear Sprt
21	Rail, Element (2)
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cooktop Rear
23	Screw (4)
