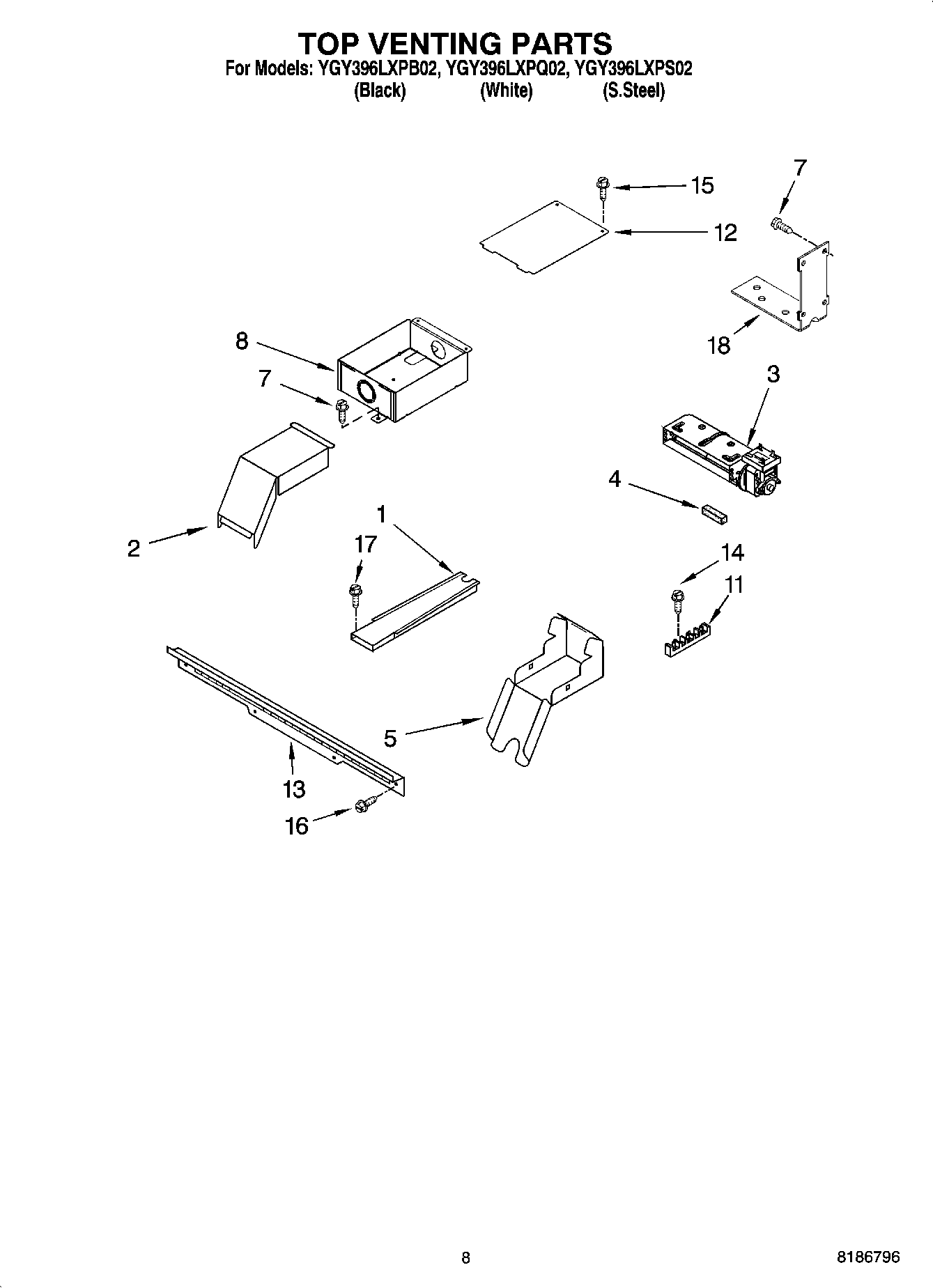

YGY396LXPB02 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

YGY396LXPB02 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

YGY396LXPB02 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI136763A
W10113901A Whirlpool Fill Kit
261900 Whirlpool Microwave Spray
W11244557 Whirlpool Screw
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
W10113902A Whirlpool Fill Kit Assembly
W10113903A Whirlpool Range Filler Kit
WP9759877 Whirlpool Retainer
WPL ARI136762A
WPL ARI136761A
WPL ARI136760A
Filler, Counter Top Biscuit
Conduit
Harness, Wire (Cooktop Right)
Harness, Wire (Cooktop Power)
Harness, Wire (Cooktop Left)
Harness, Wire (Main)
Cord, Power
Wire (14 Ga. 150 c Green)
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
Spacer, Harness
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
W11447673 Whirlpool Range Tip Anchor
Clip, Ground Wire
WP4448950 Whirlpool Screw
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
8Box, Terminal
11WP8203546 Whirlpool Terminal Block
12Cover, Terminal Box
13Vent, (Control Panel)
14Screw
15W10491985 Whirlpool Screw
16WP4450038 Whirlpool Screw
17Screw
18WP4455352 Whirlpool Mounting Bracket
