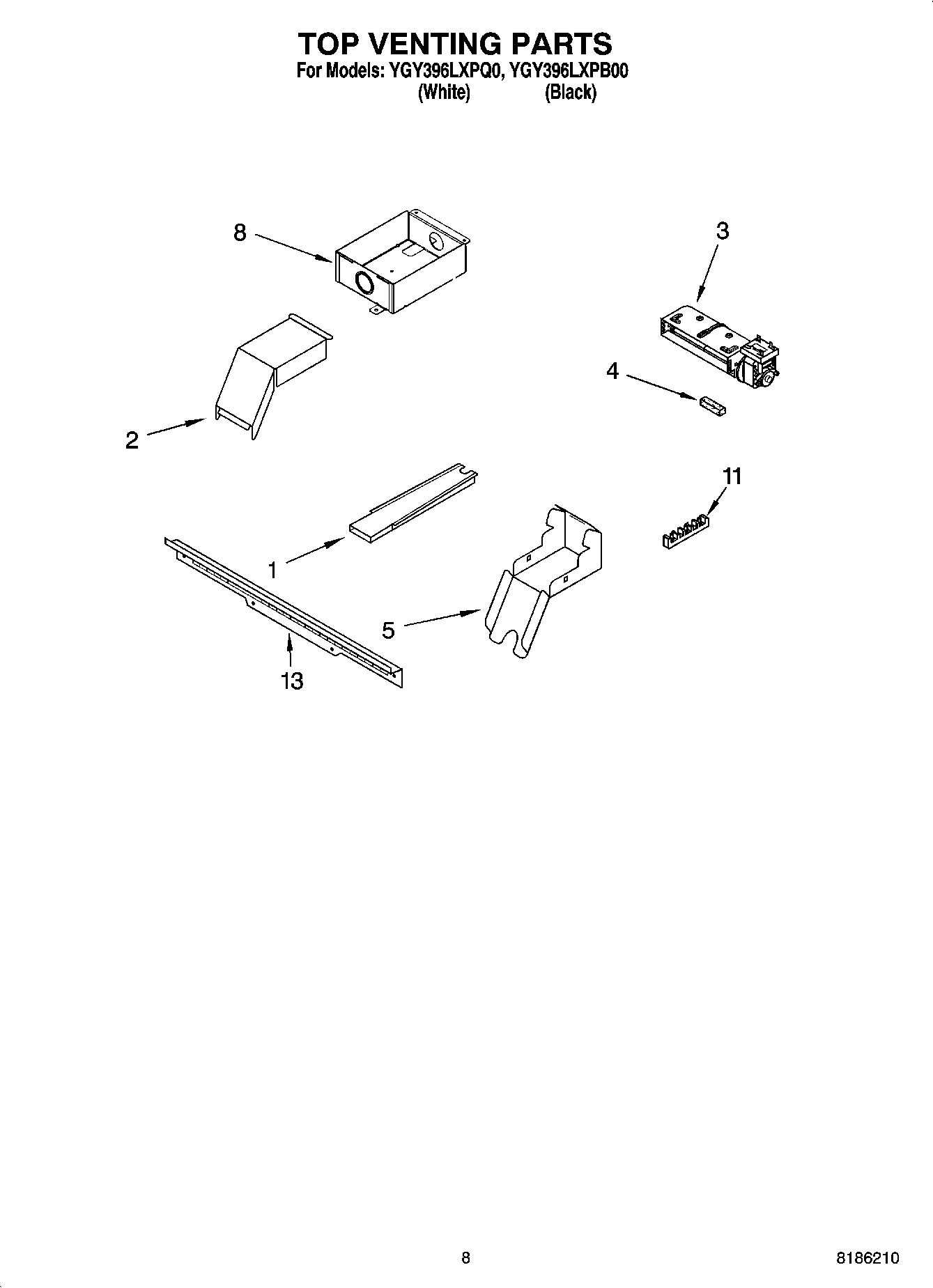

YGY396LXPQ0 06 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI136776A
	261900 Whirlpool Microwave Spray
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	W10113903A Whirlpool Range Filler Kit
	WP9759877 Whirlpool Retainer
	WPL 9756350
	WPL ARI136775A
	WPL ARI136774A
	WPL ARI136773A
	Harness, Wire (Main)
	Conduit
	Harness, Wire (Cooktop Right)
	Harness, Wire (Cooktop Power)
	Harness, Wire (Cooktop Left)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	350930 Whirlpool White Spray Paint
	WP112432 Whirlpool Nut Assembly
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	WP4449809 Whirlpool Screw
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	72017 Whirlpool Appliance Touch-Up Paint White
	Clip, Ground Wire
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	814381 Whirlpool Pin
	285006 Whirlpool Spray
1	4451759 Whirlpool Oven Exhaust Vent
1	Screw
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
8	Box, Terminal
11	WP8203546 Whirlpool Terminal Block
11	Screw
13	Vent, (Control Panel)
13	WP4450038 Whirlpool Screw
