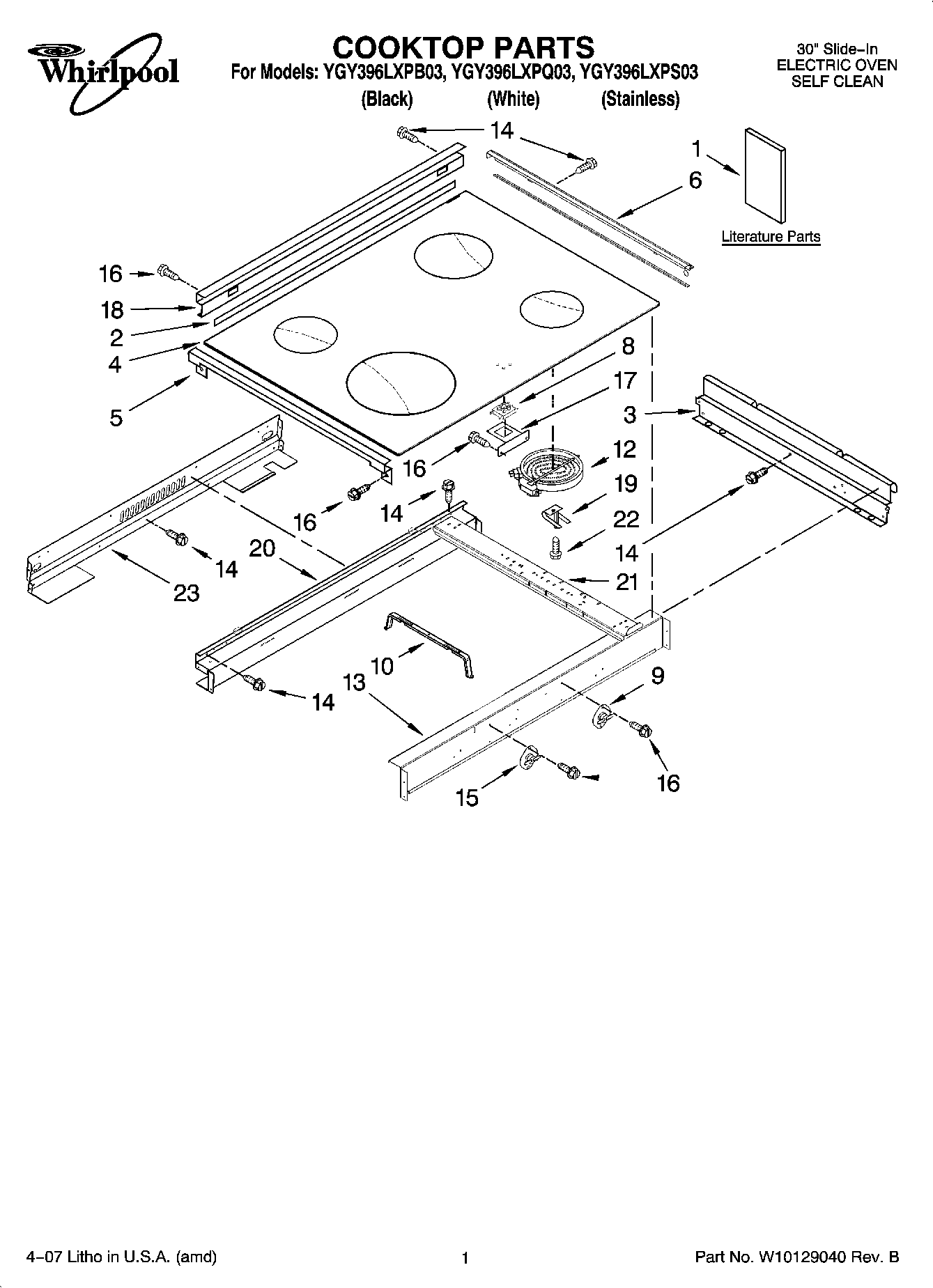

YGY396LXPS03 01 – COOKTOP PARTS

YGY396LXPS03 01 – COOKTOP PARTS

Written by

in

YGY396LXPS03 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide (French)
1Tech Sheet
1Safe Cooking Tips
1Anti-Tip Instruct.
1Safe Cooking Tips (French)
1Use & Care Guide (English)
2Gasket
3Bracket, Mounting
4Cooktop (White)
4WPW10539072 Whirlpool Cooktop
5Clip, Ceran (2)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (White LH)
8Light, Indicator (Hot Surface)
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
12W10823711 Whirlpool Surface Element Left Front and Right Rear
12W10823696 Whirlpool Radiant Surface Element
12W10823698 Whirlpool Surface Element Right Rear
13Bracket, Front Support
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
17Bracket, Ind. Lamp
18Trim, Cooktop Rear (White)
18Trim, Cooktop Rear (Black)
18Trim. Cooktop Rear (S.Steel)
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (2) (Side (3))
22WP486754 Whirlpool Compactor Screw
23Cover, Cooktop Rear
