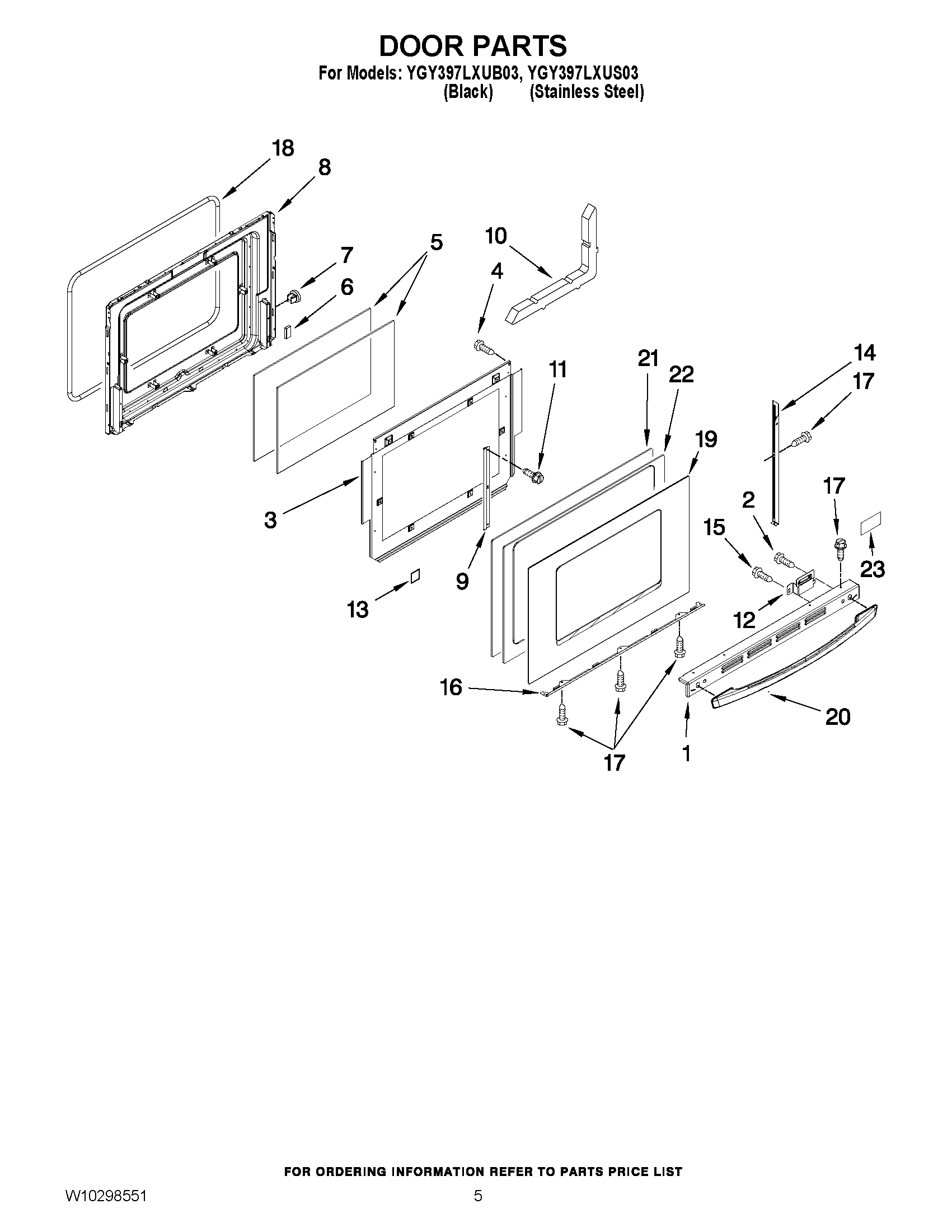

YGY397LXUB03 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
13	Spacer, Rubber
14	Trim, Door Side (Left)
14	Trim, Door Side (Right)
15	SCREW, HANDLE
16	Trim, Door Bottom
17	SCREW (BLACK)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR (BLACK)
20	W10118431 Whirlpool Door Handle
20	WPW10144883 Whirlpool Door Handle
21	GLASS, DOOR (S.STEEL MDL ONLY)
22	GLASS. OUTER DOOR (S.STEEL MDL ONLY)
23	NAMEPLATE
