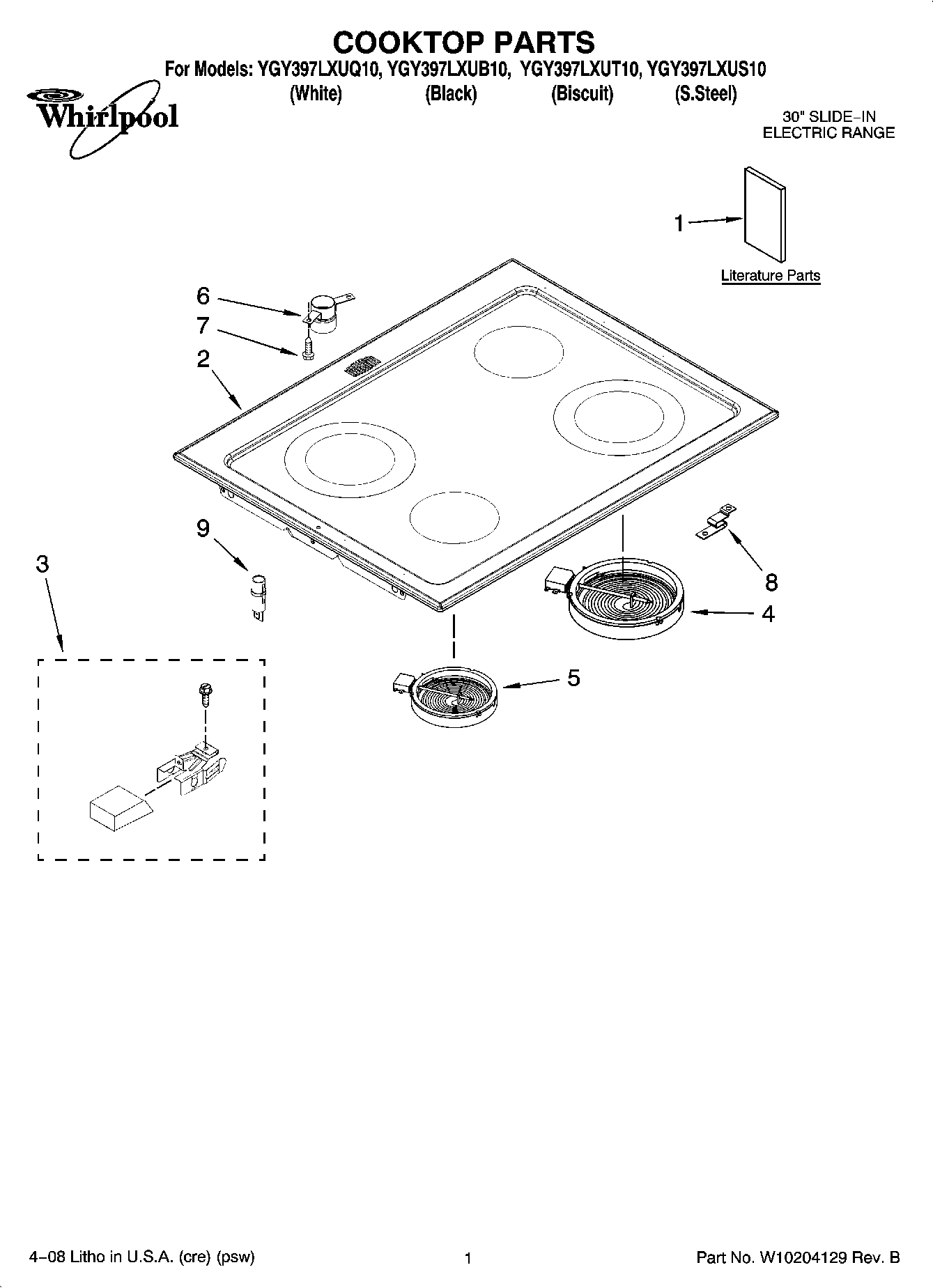

YGY397LXUB10 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
2Cooktop (S.Steel)
2Cooktop (Biscuit)
2Cooktop (Black)
2W10170209 Whirlpool Cooktop
312001676 Whirlpool Range Surface Burner Receptacle Kit
4W10823692 Whirlpool Dual Radiant Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6Tube, Vent Upper
7WP90767 Whirlpool Screw
88004P093-60 Whirlpool Support C
97407P193-60 Whirlpool Light Indicator
