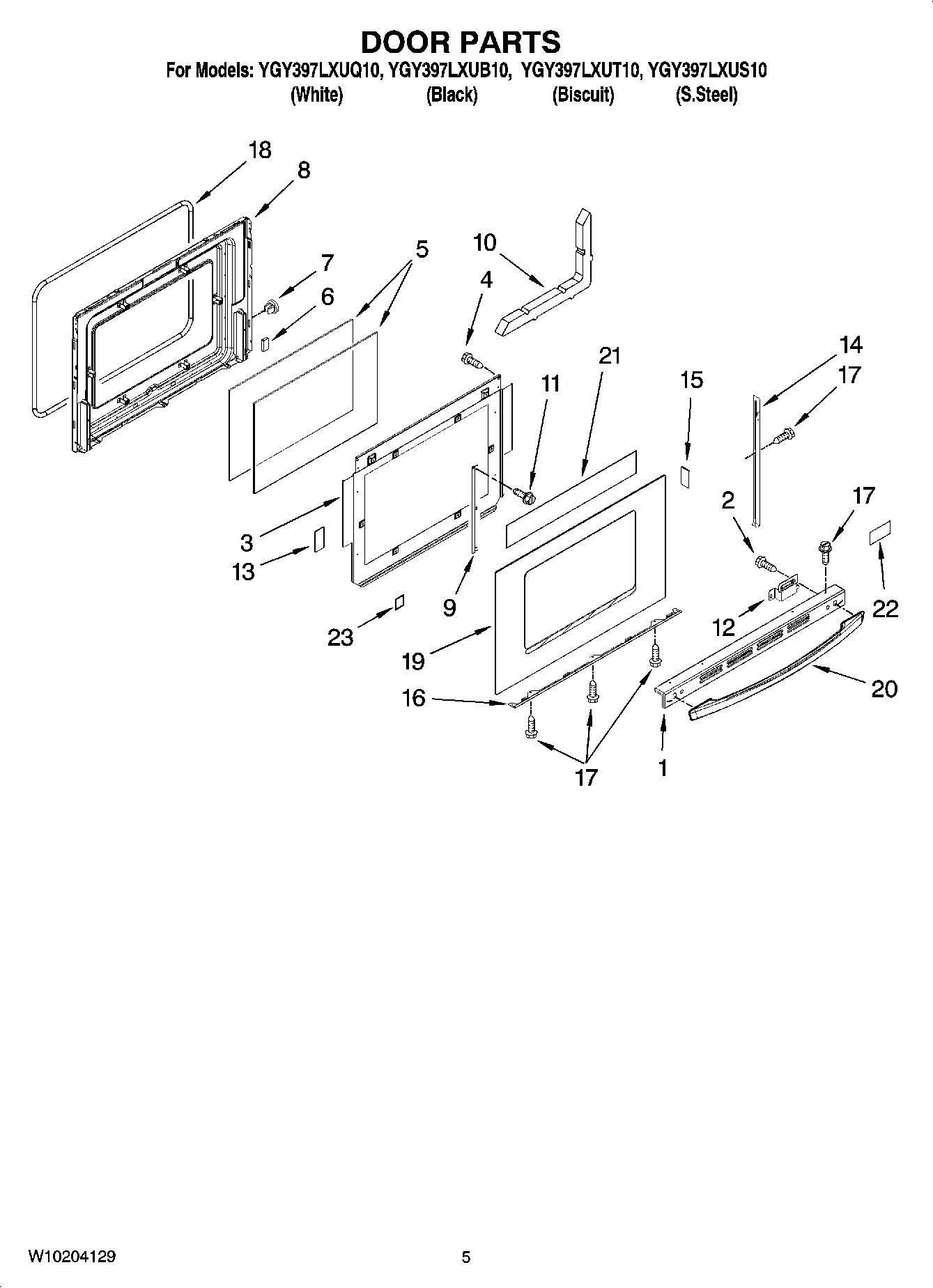

YGY397LXUB10 04 – DOOR PARTS

Products

Position	Product
1	WP3608F141-71 Whirlpool Door Trim
1	Trim, Door Top (Black)
1	Trim, Door Top (S.Steel)
1	Trim, Door Top (Biscuit)
2	W11396735 Whirlpool Screw
3	3601F373-51 Whirlpool Baffle
4	SCREW
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74005546 Whirlpool RU Spacer
7	WP74001574 Whirlpool Snap Nut
8	Liner, Door
9	3801F886-51 Whirlpool Mounting Bracket
10	Insulation, Door
11	WP90767 Whirlpool Screw
12	3801F831-45 Whirlpool Bracket Assembly
12	3801F832-45 Whirlpool Bracket
13	Tape, White
14	WP3608F116-71 Whirlpool Door Trim
14	Trim, Door Side (Biscuit, Right)
14	WP3608F117-71 Whirlpool Door Trim
14	WP3608F117-70 Whirlpool Door Trim
14	WP3608F116-70 Whirlpool Door Trim
14	Trim, Door Side (Biscuit, Left)
15	WP74009025 Whirlpool Double Sided Tape
15	Tape, Double Sided (White)
16	WP3807F708-71 Whirlpool Support
16	Trim, Door Bottom (Black)
16	Trim, Door Bottom (Biscuit)
17	WP98008544 Whirlpool Screw Assembly
17	WP74009541 Whirlpool Screw Assembly
17	W10828565 Whirlpool Screw
18	GASKT-DOOR OVEN
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (S.Steel)
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Biscuit)
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (Black)
19	Glass, Door (Order Items 13 & 21 When Replacing Door Glass) (White)
20	WPW10144883 Whirlpool Door Handle
20	W10118431 Whirlpool Door Handle
20	WPW10118430 Whirlpool Door Handle
20	WPL W10118432
21	WPL 74003664
22	Name Plate
23	WPL 74010267
