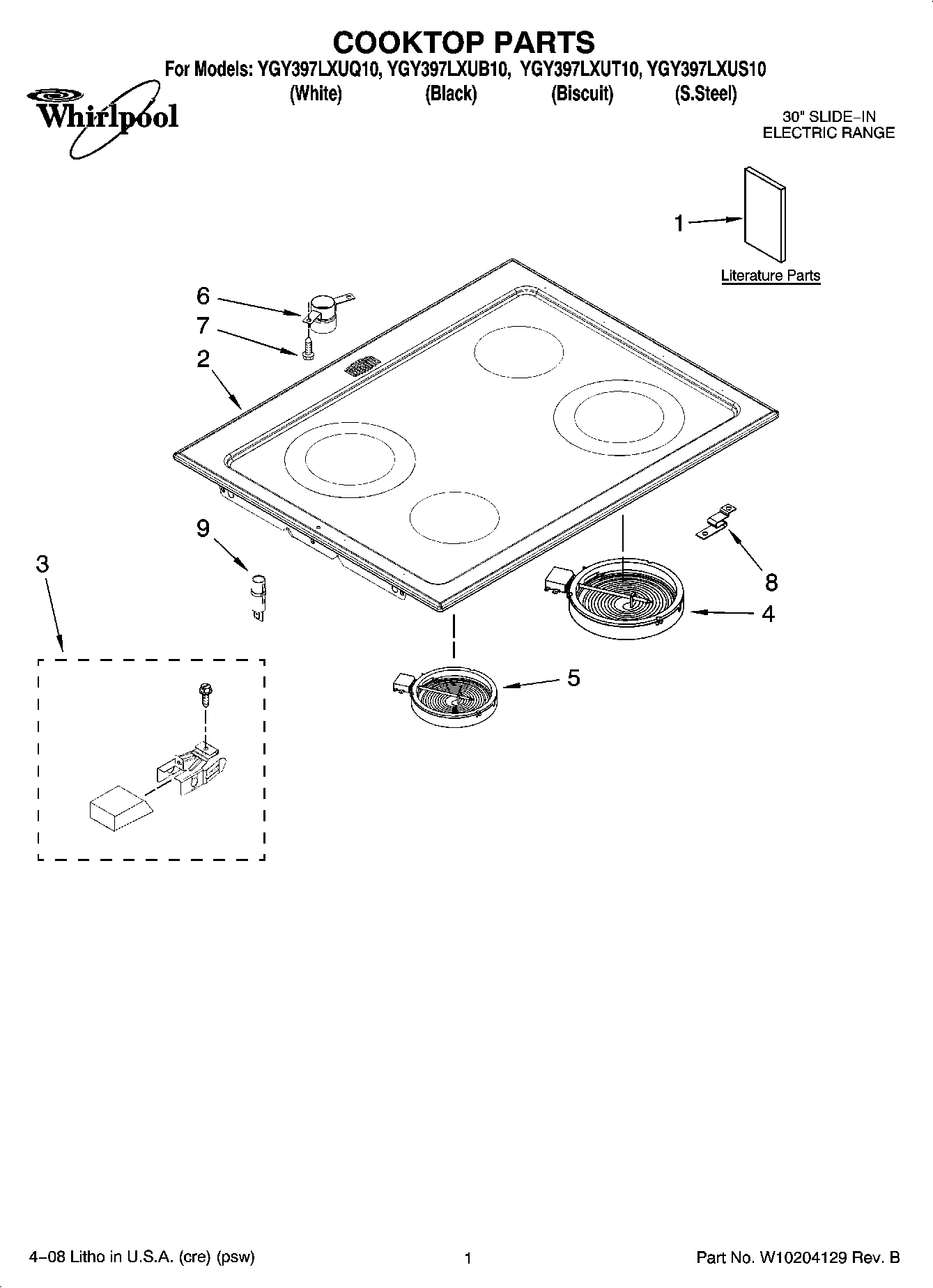

YGY397LXUS10 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Use & Care Guide
2	Cooktop (S.Steel)
2	Cooktop (Biscuit)
2	Cooktop (Black)
2	W10170209 Whirlpool Cooktop
3	12001676 Whirlpool Range Surface Burner Receptacle Kit
4	W10823692 Whirlpool Dual Radiant Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Tube, Vent Upper
7	WP90767 Whirlpool Screw
8	8004P093-60 Whirlpool Support C
9	7407P193-60 Whirlpool Light Indicator
