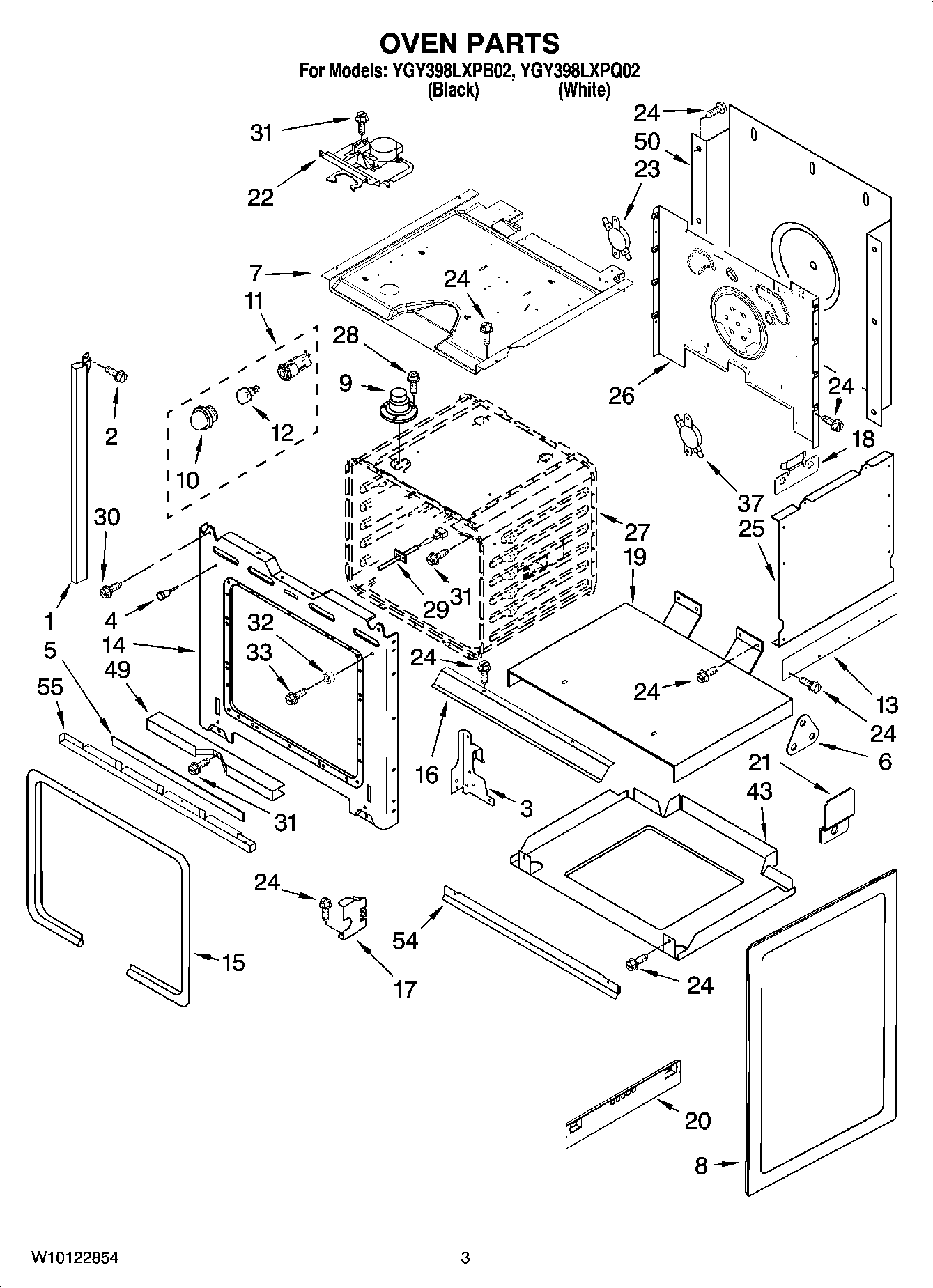

YGY398LXPB02 03 – OVEN PARTS

Products

Position	Product
1	Trim, Side Right (White)
1	Trim, Side Left (Black)
1	Trim, Side Right (Black)
1	Trim, Side Left (White)
2	WP3400805 Whirlpool Screw Assembly
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	Insulation, Bottom Vent
6	BRACKET,SIDE PANEL
7	Top Chassis
8	BODY, SIDE BLACK
8	Body, Side (White)
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Shield, Heat
14	WP4450118 Whirlpool Nut
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	Support, Insulation
20	Brace, Side Panel
21	Clip, Side Panel
22	WP9760889 Whirlpool Door Latch
23	Thermostat SPST (205)
25	WP4449809 Whirlpool Screw
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	SCREW
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Screw
31	WP4449154 Whirlpool Screw
32	4448520 Whirlpool Oven Bumper
33	WP4450038 Whirlpool Screw
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
54	Ve
54	Vent, Bottom Upper (Black)
55	Vent, Bottom Lower (Black)
55	WPL 9756470
55	WPL 9756817
55	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
55	Vent, Bottom Lower (White)
