YGY398LXPQ01 03 – OVEN PARTS

YGY398LXPQ01 03 – OVEN PARTS

Written by

in

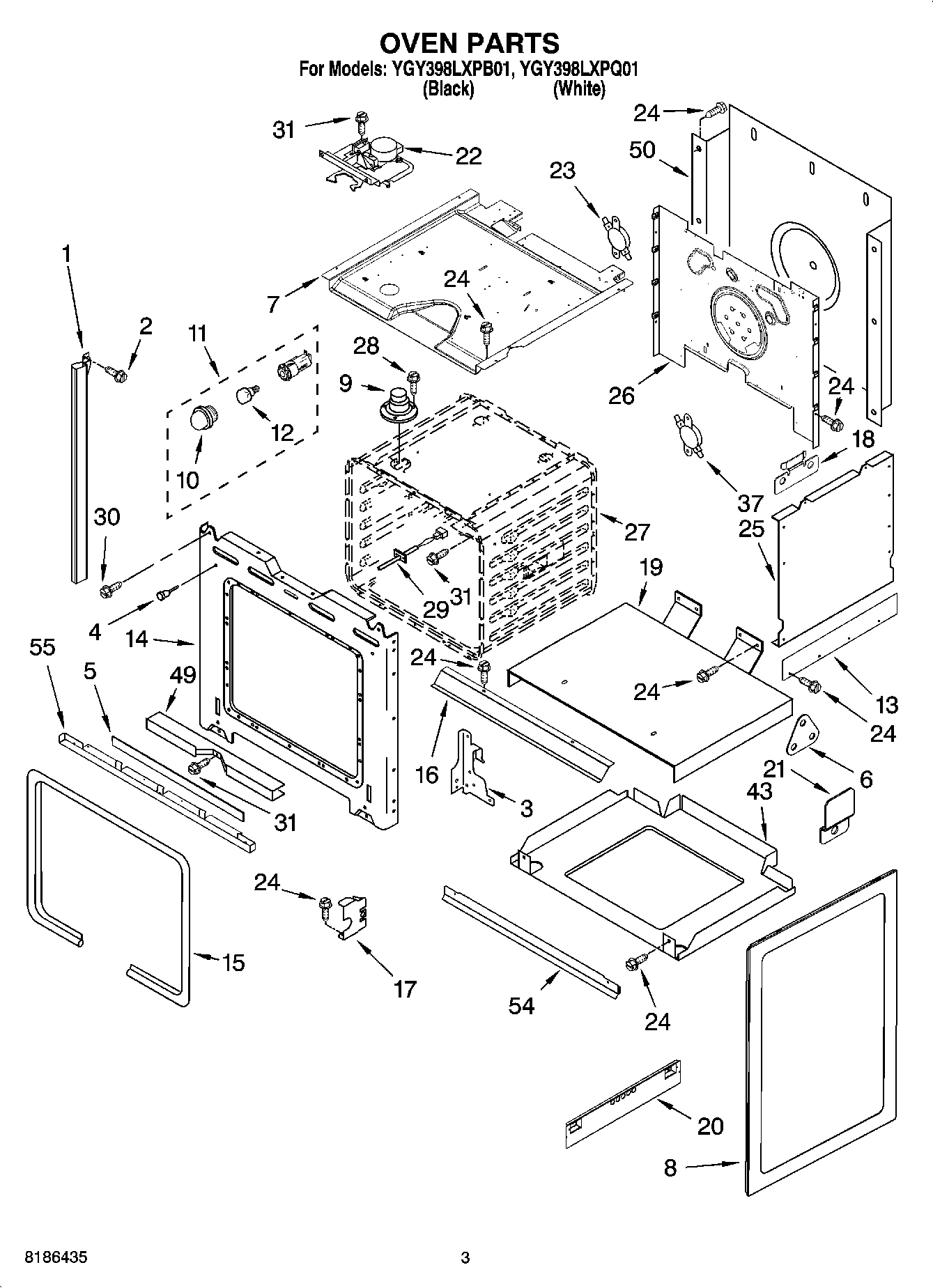

YGY398LXPQ01 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side Left (Black)
1Trim, Side Left (White)
1Trim, Side Right (Black)
1Trim, Side Right (White)
2WP3400832 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Insulation, Bottom Vent
6BRACKET,SIDE PANEL
7Top Chassis
8BODY, SIDE BLACK
8Body, Side (White)
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20Brace, Side Panel
21Clip, Side Panel
22WP9760889 Whirlpool Door Latch
23Thermostat SPST (205)
25WP4449809 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28SCREW
29WPW10131825 Whirlpool Oven Temperature Sensor
30Screw
31WP4449154 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
54Ve
54Vent, Bottom Upper (Black)
55WPL 9756817
55WPL 9756470
55WPL 9756485BL
55WPL 9756485WH
55FOLLOWING PARTS NOT ILLUSTRATED INSULATION
