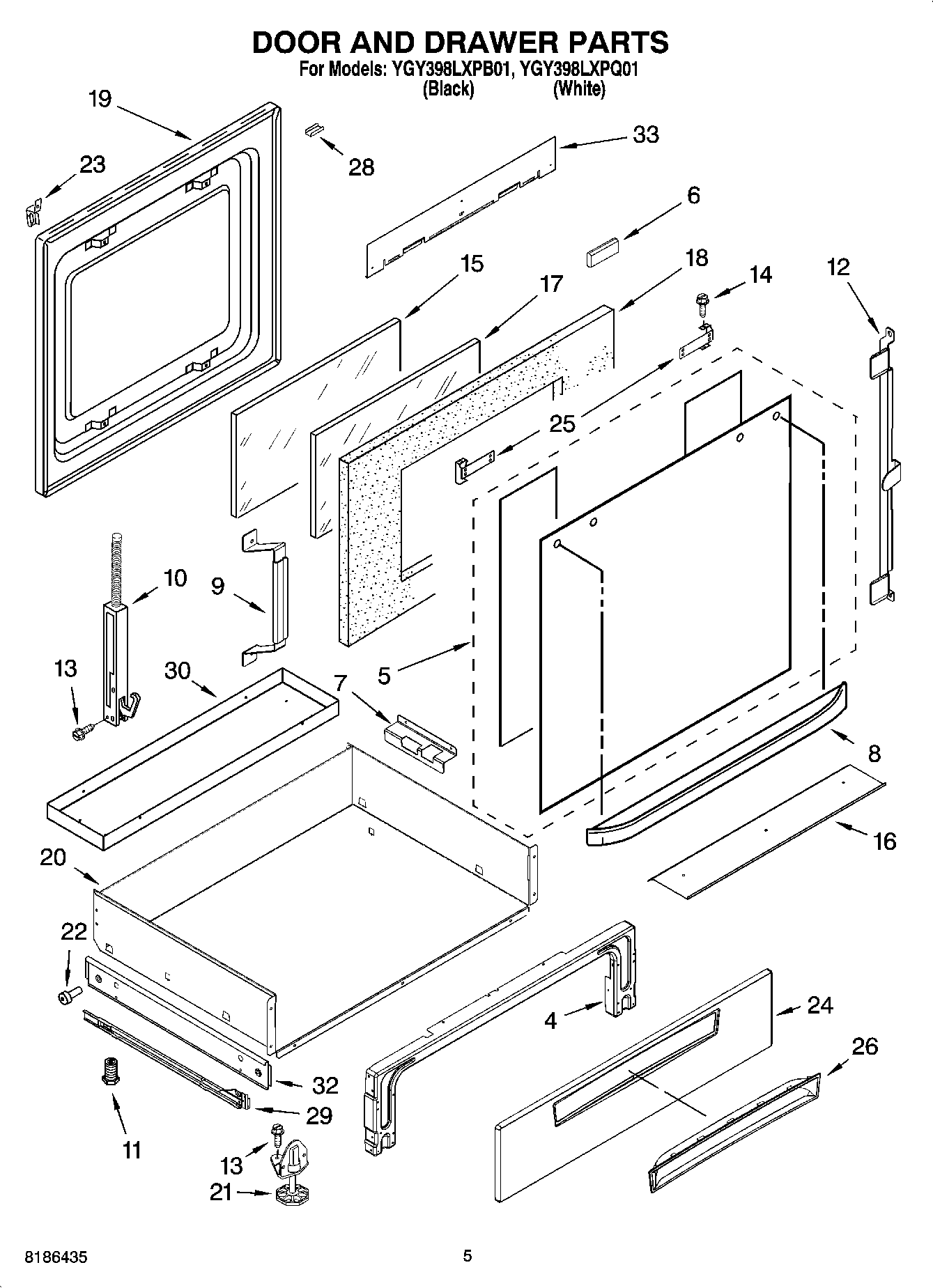

YGY398LXPQ01 04 – DOOR AND DRAWER PARTS

Products

Position	Product
4	Support, Drwr (2)
5	WP9759641 Whirlpool Outer Door Glass
5	Assembly, Door Kit (White)
6	Spacer, Glass
7	Support (L.Hand)
7	Support (R.Hand)
8	Door Handle (Black Model)
8	Door Handle (White Model)
9	Bracket, Central
10	WP9760572 Whirlpool Door Hinge
10	WP9760571 Whirlpool Door Hinge
11	WPW10058460 Whirlpool Appliance Levelling Leg
12	WP9759229 Whirlpool Mounting Bracket
13	WP4449743 Whirlpool Screw
14	Screw
15	WP9757706 Whirlpool Door Inner Glass
16	4457114 Whirlpool Oven Heat Shield
17	WP4449263 Whirlpool Inner Door Glass
18	WP4451722 Whirlpool Door Insulation Assembly
19	WP9759413 Whirlpool Door Liner
20	Drawer
21	WP3196037 Whirlpool Leveling Foot
22	814229 Whirlpool Primary Roller
23	WP4457132 Whirlpool Retainer
24	Front, Drawer (White)
24	Front, Drawer (Black)
25	Bracket, Handle
26	Handle, Drawer (Black)
26	Handle, Drawer (White)
28	Clip, Retainer (Black Model)
29	Track, Drawer (L.Side)
29	Track, Drawer (R.Side)
30	Panel, Drawer
32	Guide, Roller
33	Shield, Heat Top
