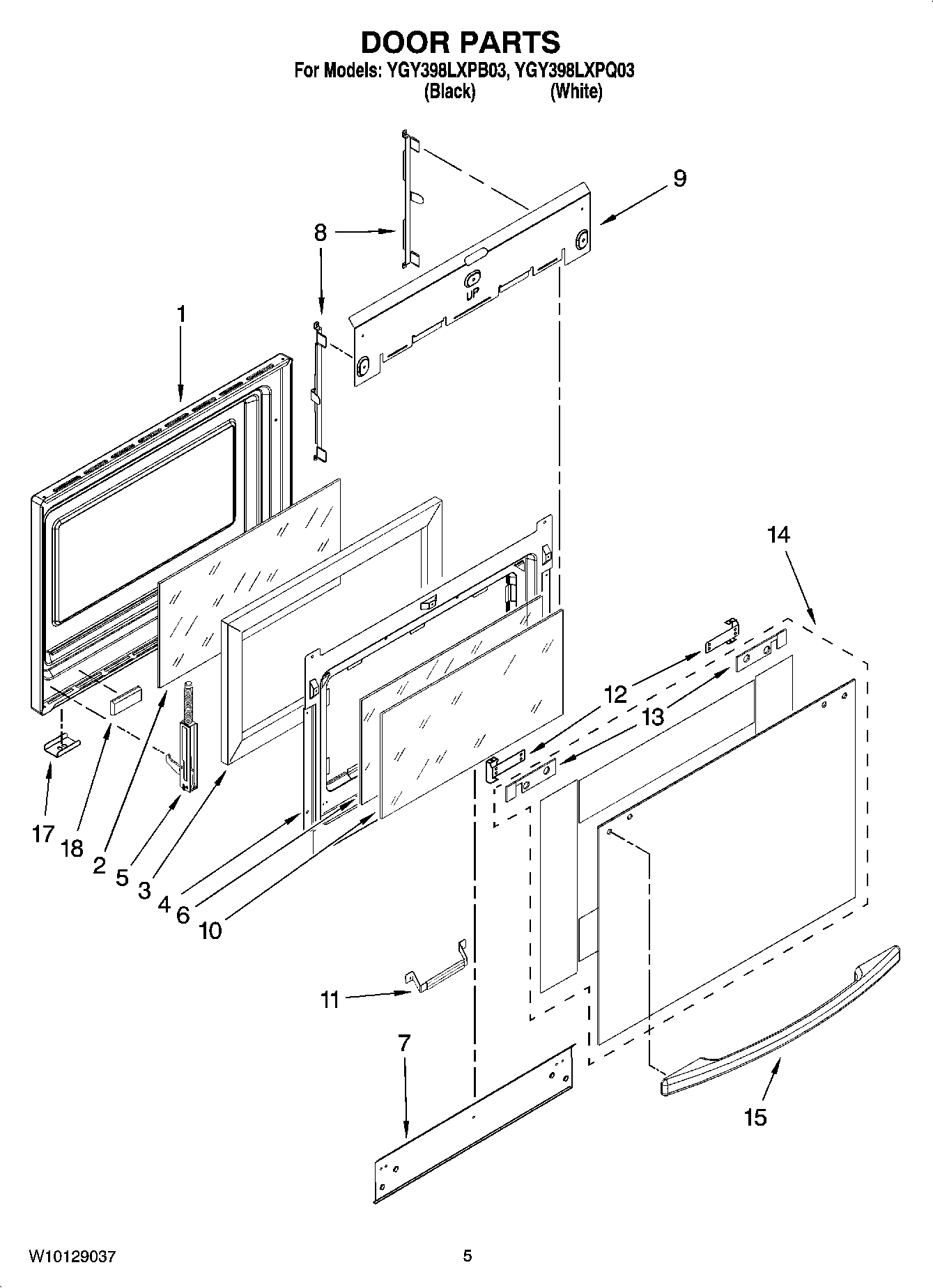

YGY398LXPQ03 04 – DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	WP9760572 Whirlpool Door Hinge
5	WP9760571 Whirlpool Door Hinge
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	Shield, Heat
10	WP9759225 Whirlpool Inner Door Glass
11	Bracket (3rd Glsss)
12	Bracket, Handle
13	Pad, Handle (Right)
13	Pad, Handle (Left)
14	Assembly, Door Kit (White)
14	WP9759641 Whirlpool Outer Door Glass
15	Door Handle (White Model)
15	Door Handle (Black Model)
17	Clip, Retainer (Black Model)
18	Spacer, Glass
