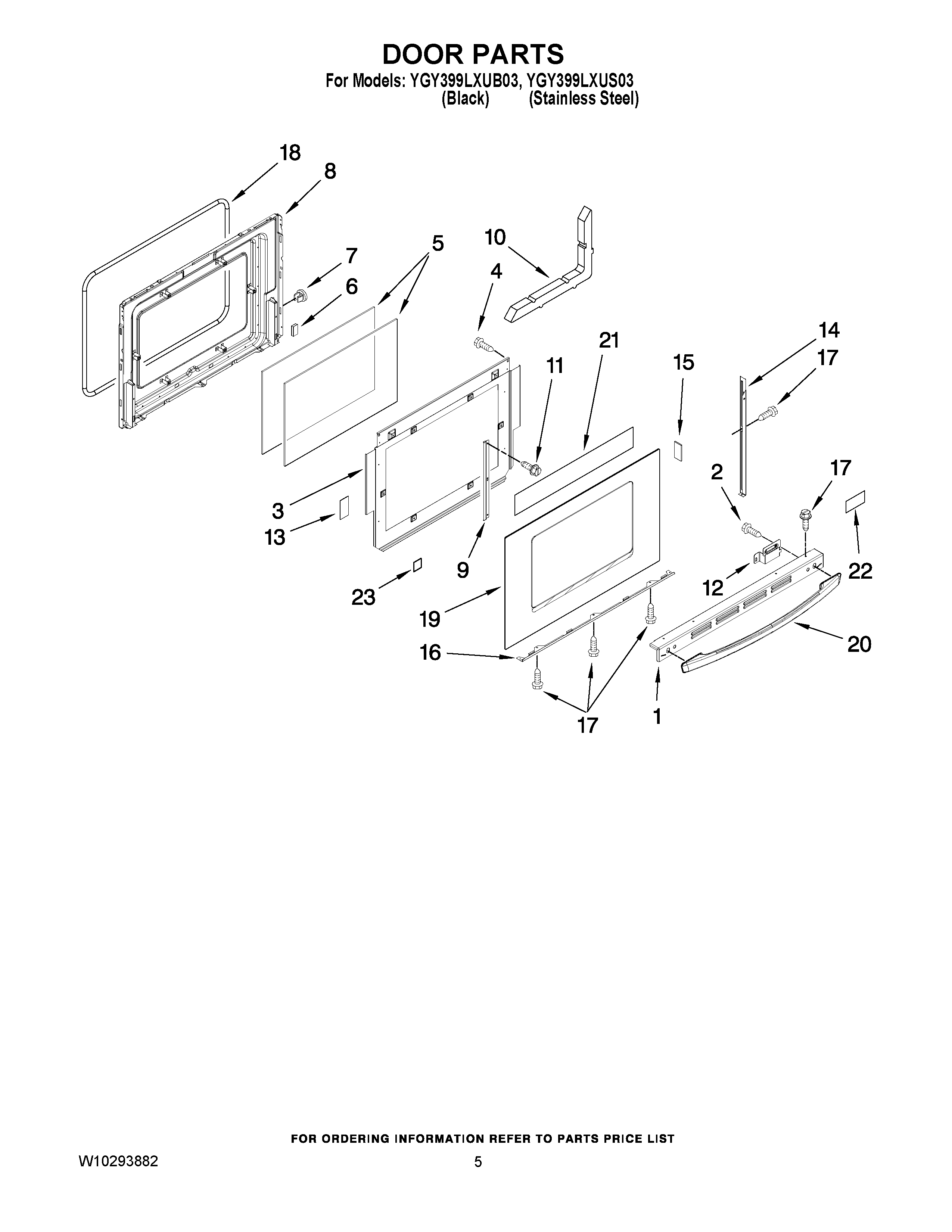

YGY399LXUB03 04 – DOOR PARTS

Products

PositionProduct
1Trim, Door Top
2W11396735 Whirlpool Screw
3Baffel, Retainer
4Screw
5GLASS, INNER
6Spacer, Rubber
7NUT, SNAP
8Lining, Door
9Bracket, Glass
10Insulation, Door
11SCREW
12Bracket, Handle (Left)
12Bracket, Handle (Right)
13Tape, White
14Trim, Door Side (Right)
14Trim, Door Side (Left)
15TAPE, DOUBLE SIDED
16Trim, Door Bottom
17SCREW (BLACK)
17SCREW, PANEL (STAINLESS)
18GASKT-DOOR OVEN
19PANEL, OUTER DOOR (STAINLESS (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS))
19PANEL, OUTER DOOR (BLACK)
20W10118431 Whirlpool Door Handle
20WPW10144883 Whirlpool Door Handle
21Tape, Foil
22NAMEPLATE
23Spacer, Rubber
