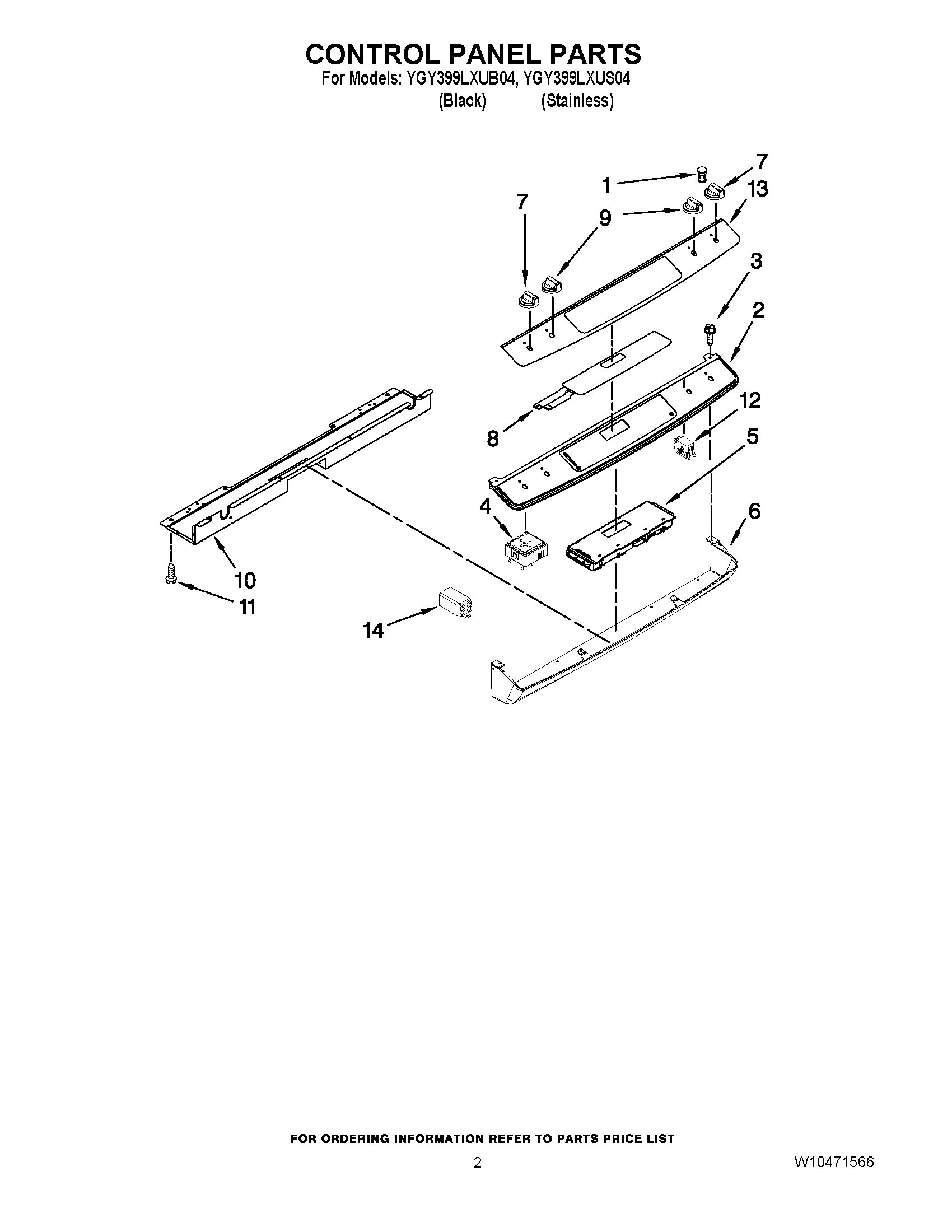

YGY399LXUB04 02 – CONTROL PANEL PARTS

YGY399LXUB04 02 – CONTROL PANEL PARTS

Written by

in

YGY399LXUB04 02 – CONTROL PANEL PARTS

Products

PositionProduct
1LENS
2Panel, Control (Black)
2Panel, Control (S.Steel)
3WPL 7101P30960
4SWITCH, INFINITE (RIGHT REAR)
4WPW10441696 Infinite Switch (Right) Front)
5CONTROL
6PANEL,CONTROL(LWR) (BLACK)
7KNOB (BLACK)
8WPW10207933 Whirlpool Membrane Switch
9KNOB, DUAL (BLACK)
10SUPPORT, CONTROL PANEL
11SCREW
12Light, Indicator
13OVERLAY STAINLESS MODEL ONLY
14RELAY, AUX
