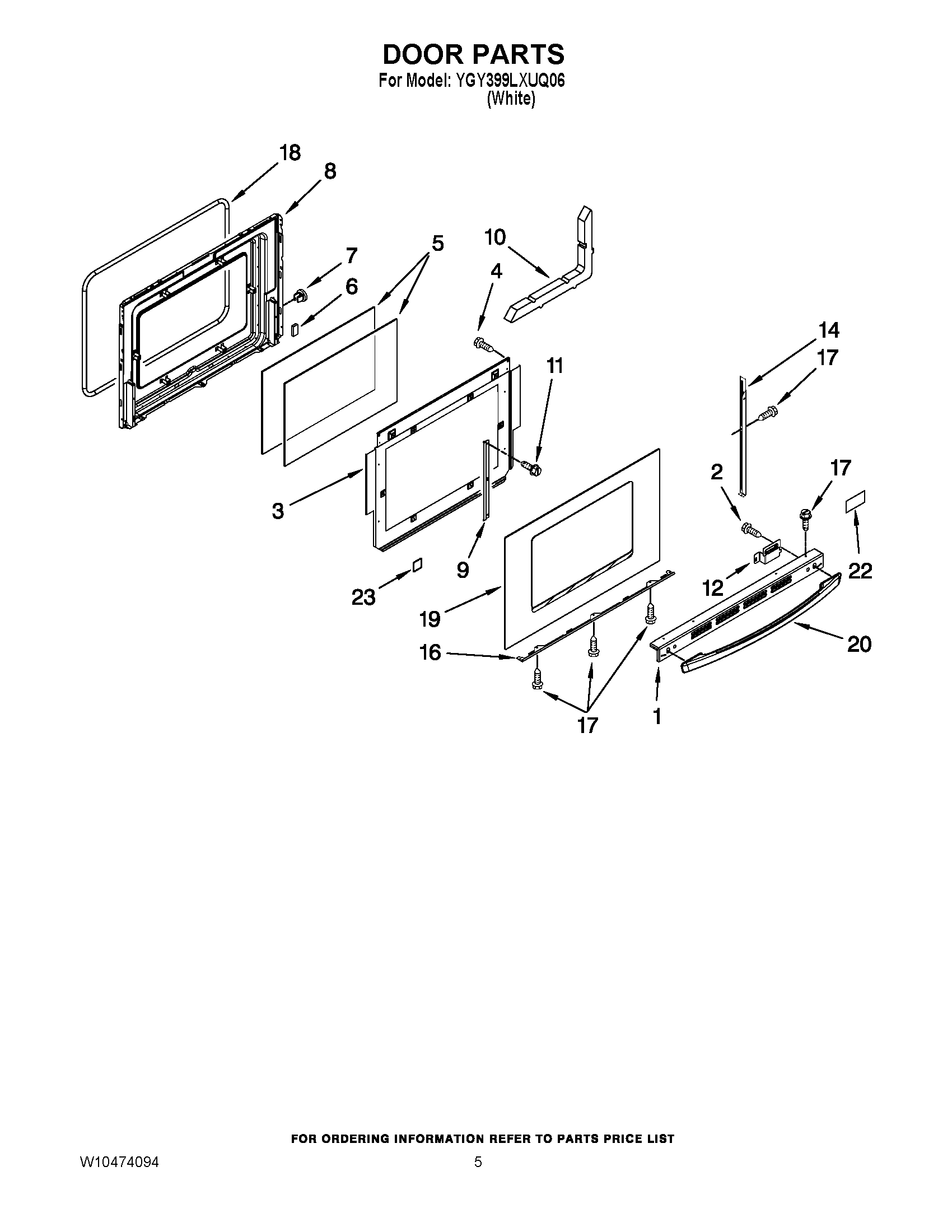

YGY399LXUQ06 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top
2	W11396735 Whirlpool Screw
3	Baffel, Retainer
4	SCREW, HANDLE
5	GLASS, INNER
6	Spacer, Rubber
7	NUT, SNAP
8	Lining, Door
9	Bracket, Glass
10	Insulation, Door
11	SCREW
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
14	TRIM, DOOR SIDE (BLACK, RIGHT)
14	TRIM, DOOR SIDE (BLACK, LEFT)
16	Trim, Door Bottom
17	SCREW (WHITE)
18	GASKT-DOOR OVEN
19	PANEL, OUTER DOOR
20	WPW10118430 Whirlpool Door Handle
22	NAMEPLATE
23	Spacer, Rubber
