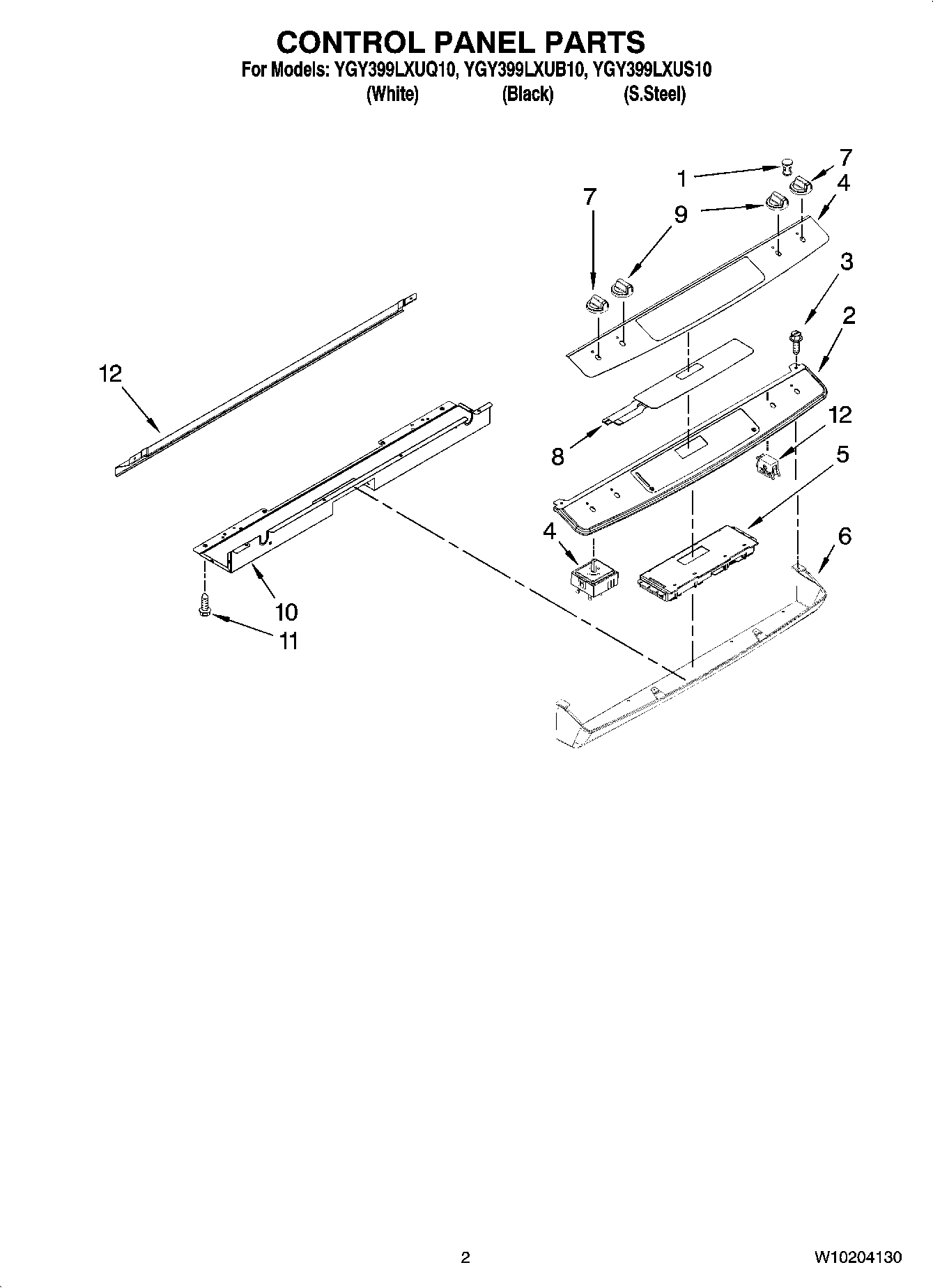

YGY399LXUS10 02 – CONTROL PANEL PARTSadmin2025-04-26T11:10:13+00:00YGY399LXUS10 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | WP22001948 Whirlpool Indicator Lens |
| 2 | Panel, Control (White) |
| 2 | Panel, Control (Black) |
| 2 | Panel, Control (S.Steel) |
| 3 | WPL 7101P30960 |
| 4 | Switch, Infinite 6`` (LF, RR) |
| 4 | SWITCH-ELMNT |
| 5 | WP8507P390-60 Whirlpool Control Board and Clock |
| 6 | PANEL,CONTROL(LWR) (WHITE) |
| 6 | PANEL,CONTROL(LWR) (BLACK) |
| 7 | KNOB (WHITE) |
| 7 | KNOB (BLACK) |
| 8 | WPW10207930 Whirlpool Membrane Switch |
| 8 | WPW10207928 Whirlpool Membrane Switch |
| 9 | KNOB, DUAL (WHITE) |
| 9 | KNOB, DUAL (BLACK) |
| 10 | Support, Control Panel |
| 11 | WP90767 Whirlpool Screw |
| 12 | WP74004153 Whirlpool Indicator Light |
