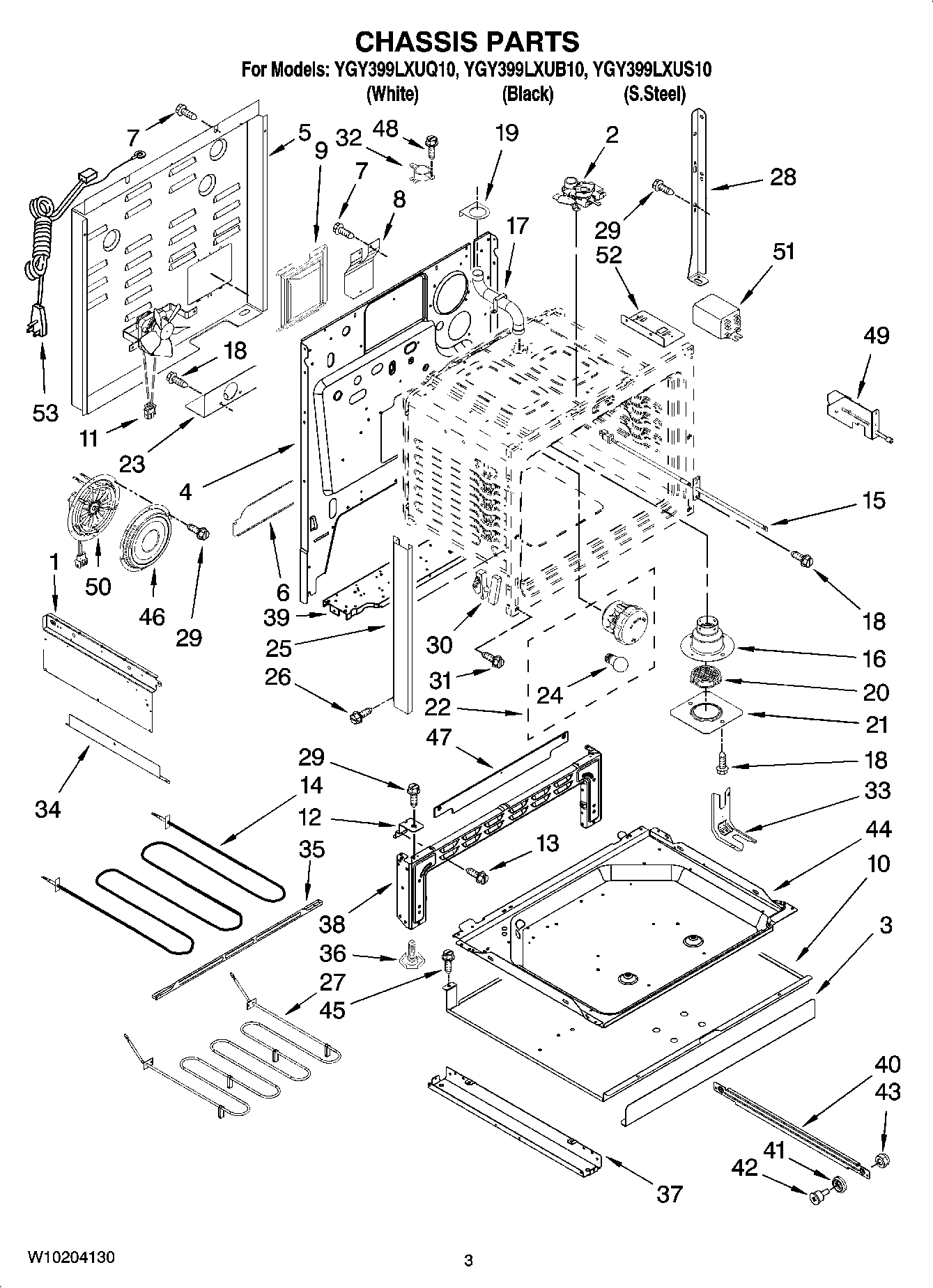

YGY399LXUS10 03 – CHASSIS PARTS

Products

Position	Product
	Insulation
	Insulation, Wrap
	Insulation, Oven Bottom
	Insulation, Back
1	2618F206-51 Whirlpool Panel
1	Panel, Shield (Left)
2	Latch Assembly
3	Cover, Front
4	Main Back
5	4005F810-51 Whirlpool Access Cover
6	Extension, Back
8	Insulator, Cord
9	3804F300-51 Whirlpool Retainer
10	Shield, Warmer
11	WPW10586440 Whirlpool Blower Fan
12	Support, Oven Bottom
13	Screw
14	WP7406P218-60 Whirlpool Broil Element
15	12001656 Whirlpool Range Oven Temperature Sensor
16	Tube, Vent Lower
17	Tube, Vent Upper
19	Holder, Vent Tube
20	Smoke Eliminator
21	Plate, Smoke Elm.
22	WP7407P182-60 Whirlpool Lamp
23	W10190166 Whirlpool Service Bracket
24	BULB, LIGHT
25	WP3608F138-71 Whirlpool Side Trim Assembly
25	WP3608F138-70 Whirlpool Side Trim
27	WP7406P411-60 Whirlpool Bake Element
28	Support, Oven Rear
29	WP7101P434-60 Whirlpool Screw
30	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
31	WP4159193 Whirlpool Screw
32	WP7450P034-60 Whirlpool Limit Switch
33	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
34	Extention, Shield
35	Support, Element
36	WP74010805 Whirlpool Screw
37	4020W035-80 Whirlpool Bottom PE
38	Pedestal, Front
39	Support
40	Runner, Drawer (2)
41	WP74004078 Whirlpool Door Roller
42	Shaft, Roller (2)
43	74005230 Whirlpool Oven Lock Nut (8-32)
44	3804F231-51 Whirlpool Retainer
46	COVER,CONV.FAN
47	Trim, Front
48	WP90767 Whirlpool Screw
49	WP7450P108-60 Whirlpool Lite Switch
50	Fan, Convect
51	Relay, Aux.
52	Support, Spark Module
53	Cord, Power
