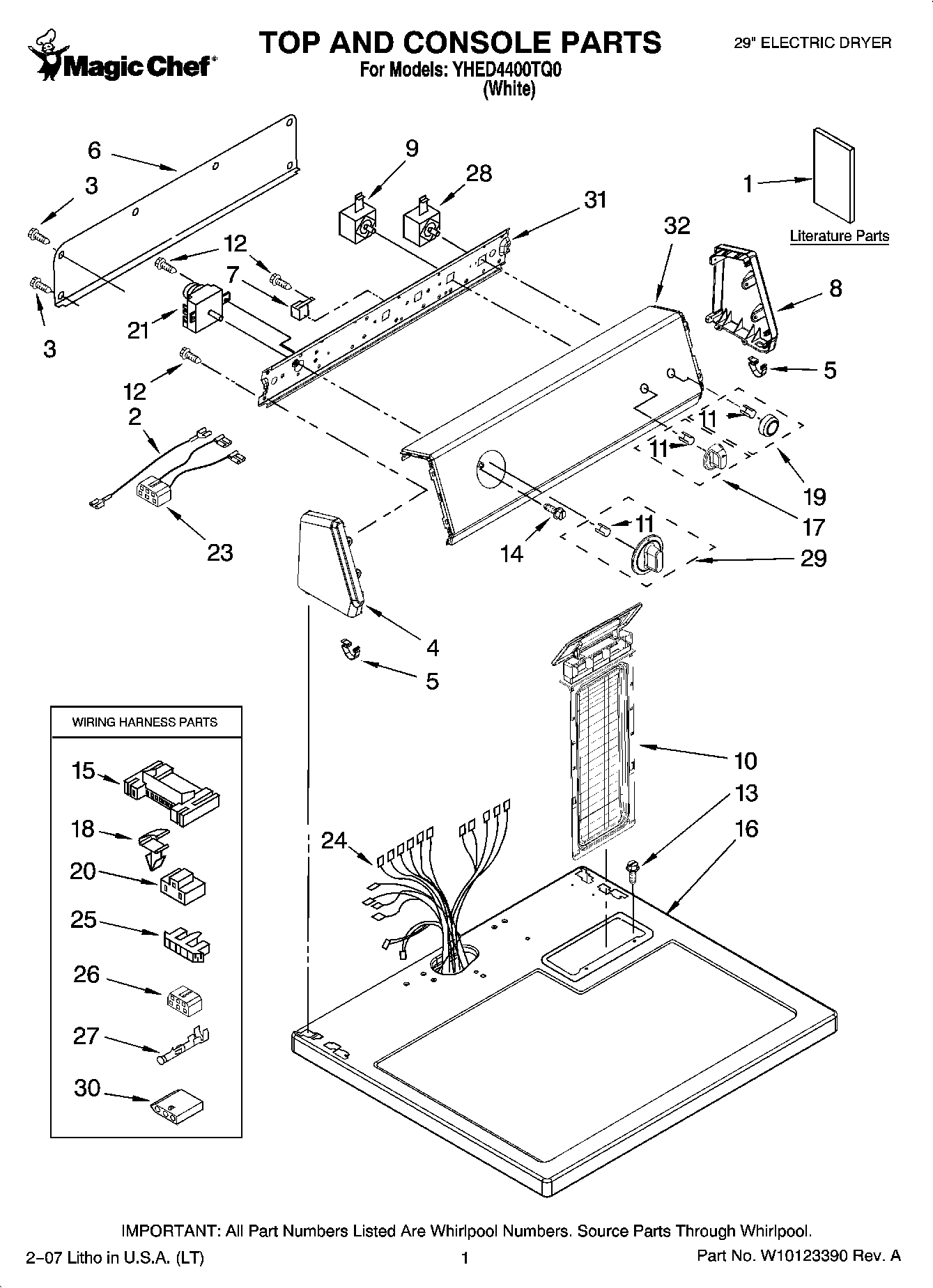

YHED4400TQ0 01 – TOP AND CONSOLE PARTS

YHED4400TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YHED4400TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Instructions Installations
1Sheet, Cycle Feature
1Use & Care
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
5WP8312709 Whirlpool Endcap Clip
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.)
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17WPW10110063 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Knob, Push-To-Start
203401144 Whirlpool Connector
21WP3979617 Whirlpool Timer
238539893 Whirlpool Wire Harness
24Harness, Wiring
25Connector, Timer
26Block, Disconnect
27WP94614 Whirlpool Terminal
28WP3398095 Whirlpool Dryer Start Relay
29Timer-Knob Assembly
303936144 Whirlpool Connector
31Bracket, Control
32Panel, Control
