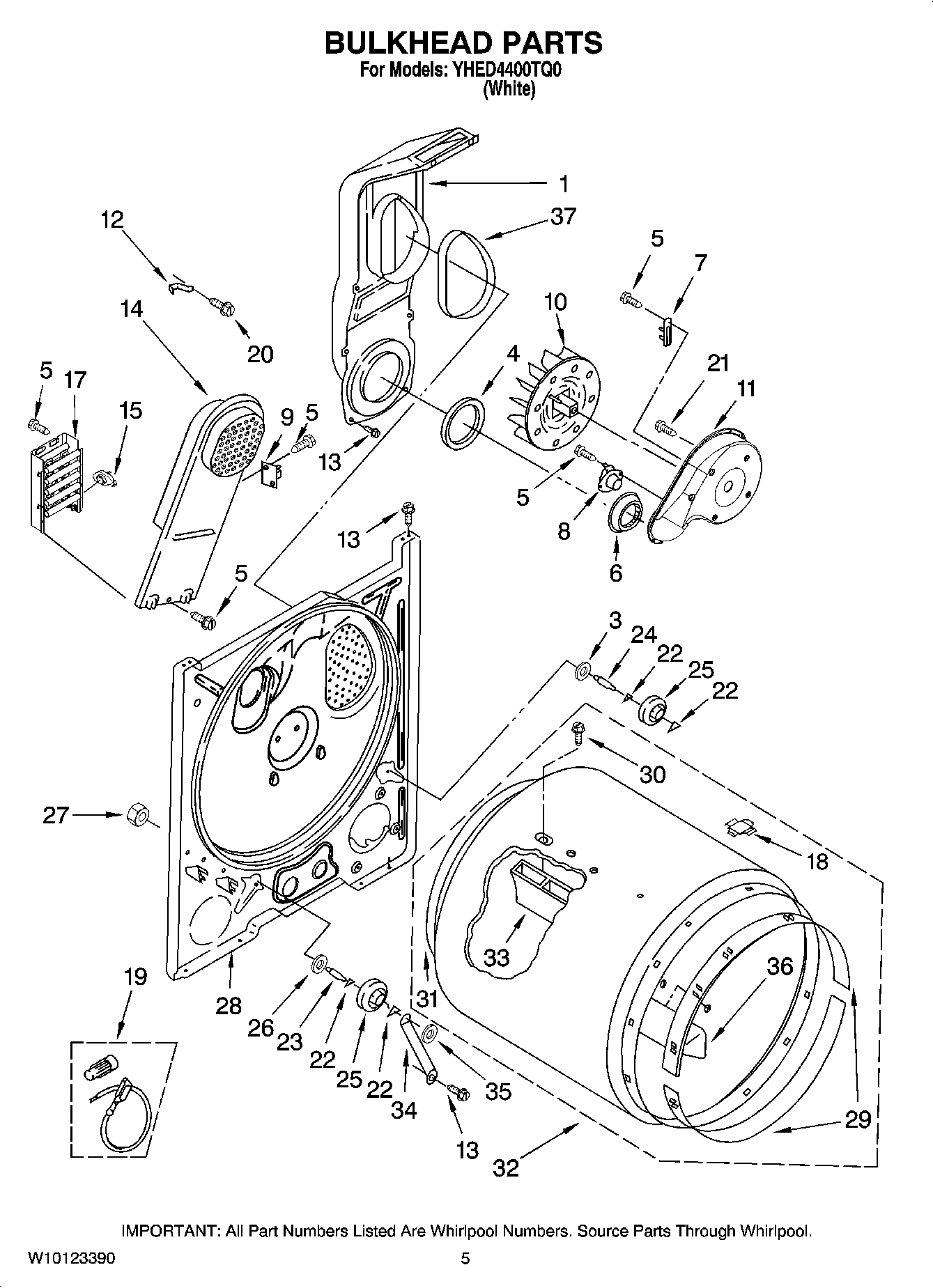

YHED4400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

YHED4400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

YHED4400TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
ACCESSORY PARTS
3406839 Whirlpool Drying Rack
W11224254 Whirlpool Test Kit
4392065 Whirlpool Dryer Maintenance Kit
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
4392899 Whirlpool Biscuit Touch-Up Paint
1W11117429 Whirlpool Chute Assembly
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
17Element, Heater
188066086 Whirlpool Plug
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP488729 Whirlpool Refrigerator Door Screw
22WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
23SHAFT SUPPORT ROLLER DRYER
24SHAFT SUPPORT ROLLER DRYER
25349241T Whirlpool Dryer Drum Support Roller Kit
26WP348197 Whirlpool Washer Assembly
27WP3359452 Whirlpool Nut
28W11178668 Whirlpool Bulkhead
29279441 Whirlpool Front Bearing Ring
30WPW10109200 Whirlpool Screw
31W10612022 Whirlpool Felt Seal
32W10899578 Whirlpool Dryer Drum Assembly
33BAFFLE-DRM
34W11684613 Whirlpool Bracket
35WP90296 Whirlpool Clip
36WP3403636 Whirlpool Drum Baffle
37SEAL
