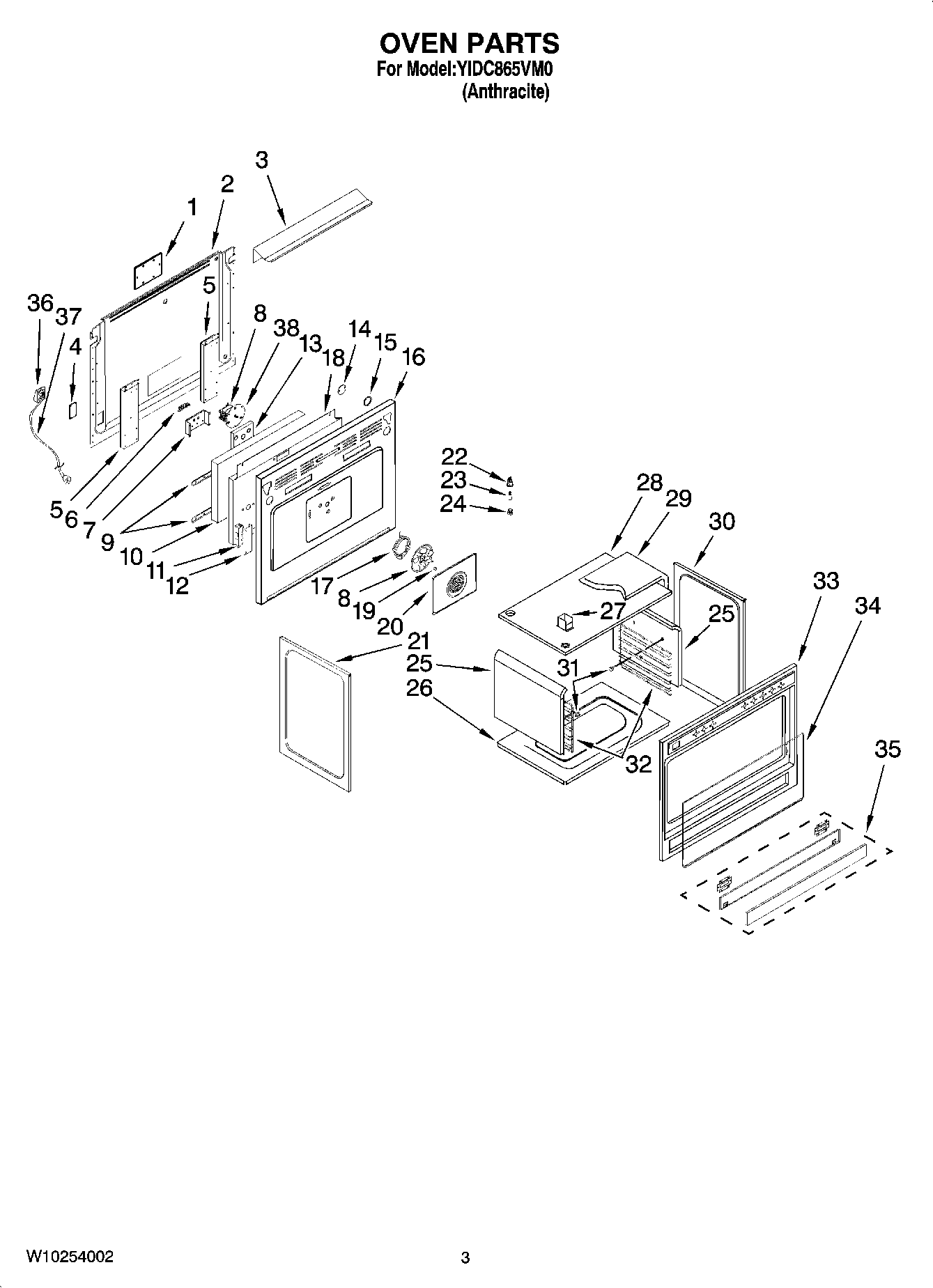

YIDC865VM0 03 – OVEN PARTSadmin2025-04-26T11:08:48+00:00YIDC865VM0 03 – OVEN PARTS
Products
| Position | Product |
|---|
| 1 | Cover, Terminal |
| 2 | Cover, Rear |
| 3 | SUPPORT |
| 4 | Cover, Access |
| 5 | Duct, Air (Right) |
| 5 | Duct, Air (Left) |
| 6 | Block, Terminal |
| 7 | Bracket, Mounting |
| 8 | Motor, Fan-Assy |
| 9 | Brace (4) |
| 10 | INSULATION |
| 11 | Module, Spark |
| 12 | Bracket, Mounting |
| 13 | INSULATION |
| 14 | Cover, Access |
| 15 | Seal, Rear |
| 16 | Liner, Back |
| 17 | Element, Convction |
| 18 | Panel, Rear Wall |
| 19 | Nut M5 |
| 20 | Cover, Fan |
| 21 | Side, Left |
| 22 | Socket, Light |
| 23 | Bulb, Light |
| 24 | Lens, Light |
| 25 | Side, Oven (2) |
| 26 | Bottom, Oven |
| 27 | Box, Wiring |
| 28 | Top, Oven |
| 29 | INSULATION |
| 30 | Side, Right |
| 31 | Clamp, Rack Supprt |
| 32 | Support, Rack |
| 33 | Frame, Front |
| 34 | Gasket, Door |
| 35 | Panel, Outer Drwr |
| 36 | Board, Terminal |
| 37 | Cord, Power |
| 38 | Bracket, Fan Mtr |
