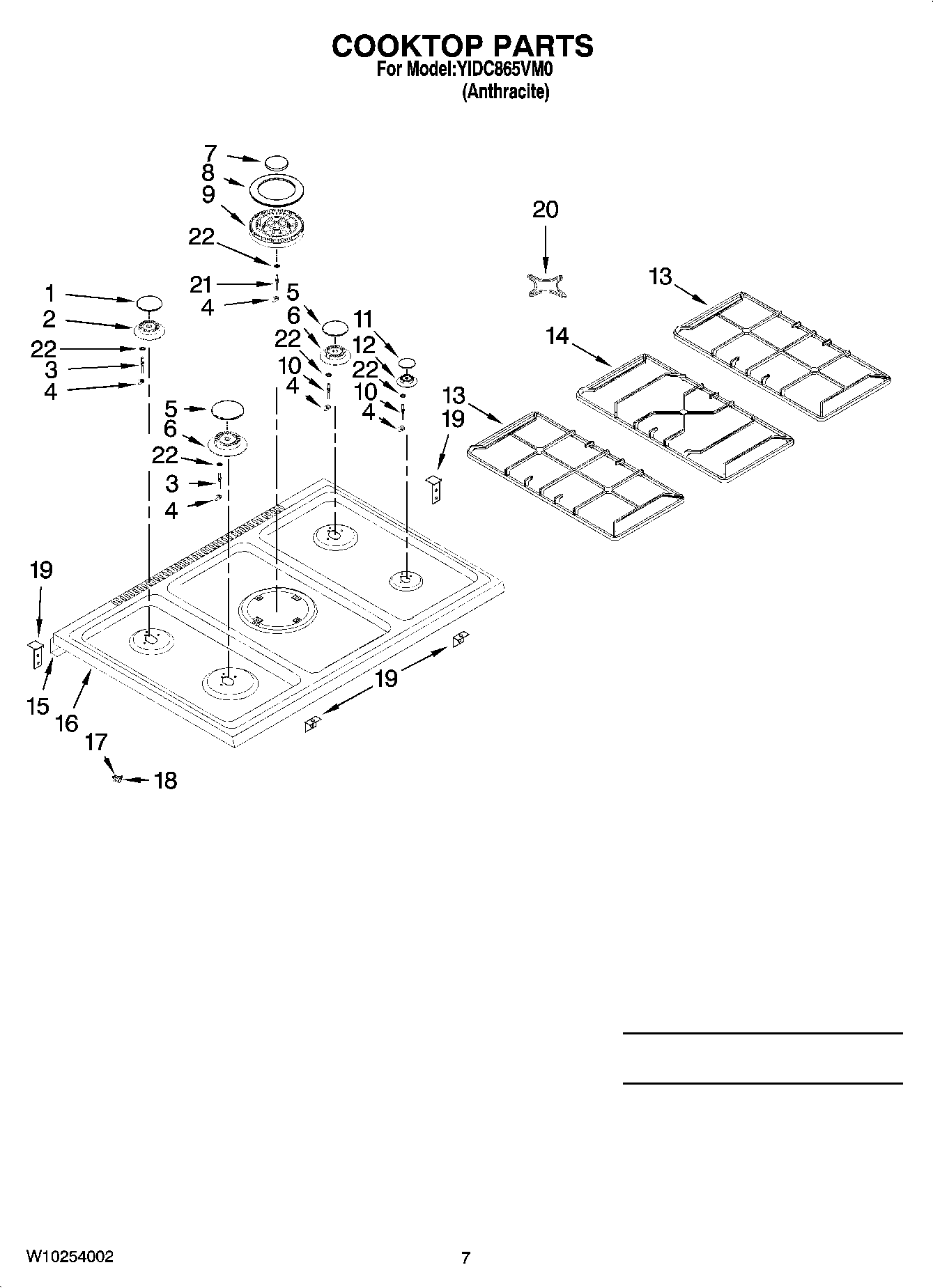

YIDC865VM0 06 – COOKTOP PARTSadmin2025-04-26T11:09:18+00:00YIDC865VM0 06 – COOKTOP PARTS
Products
| Position | Product |
|---|
| Following Parts Not Illustrated |
| Orifice NG 1.55 |
| Orifice NG 0.9 |
| Orifice NG 1.2 (2) |
| Orifice NG 1.5 |
| LP Kit |
| 1 | Cap, Burner-Rapid |
| 2 | W10204044 Whirlpool Burner Head |
| 3 | W10204073 Whirlpool Surface Igniter |
| 4 | Clip, Igniter |
| 5 | Cap, Brnr-Semi Rap |
| 6 | Burner, Semi-Rapid |
| 7 | Cap, Small TCB |
| 8 | Cap, Large TCB |
| 9 | W10204046 Whirlpool Burner Head |
| 10 | W10204072 Whirlpool Surface Igniter |
| 11 | Cap, Burner-Aux |
| 12 | Burner, Auxiliary |
| 13 | Grate, Burner (2) |
| 14 | Grate, Burner |
| 15 | Brace, Rear |
| 16 | COOKTOP |
| 17 | Thermostat - 60C |
| 18 | Bracket, Thermstat |
| 19 | Support, Cooktop (Rear (2)) |
| 19 | Support, Cooktop (Right) |
| 19 | Support, Cooktop (Left) |
| 20 | Grate, Coffee |
| 21 | Igniter, Surface |
| 22 | Gasket, Igniter |
