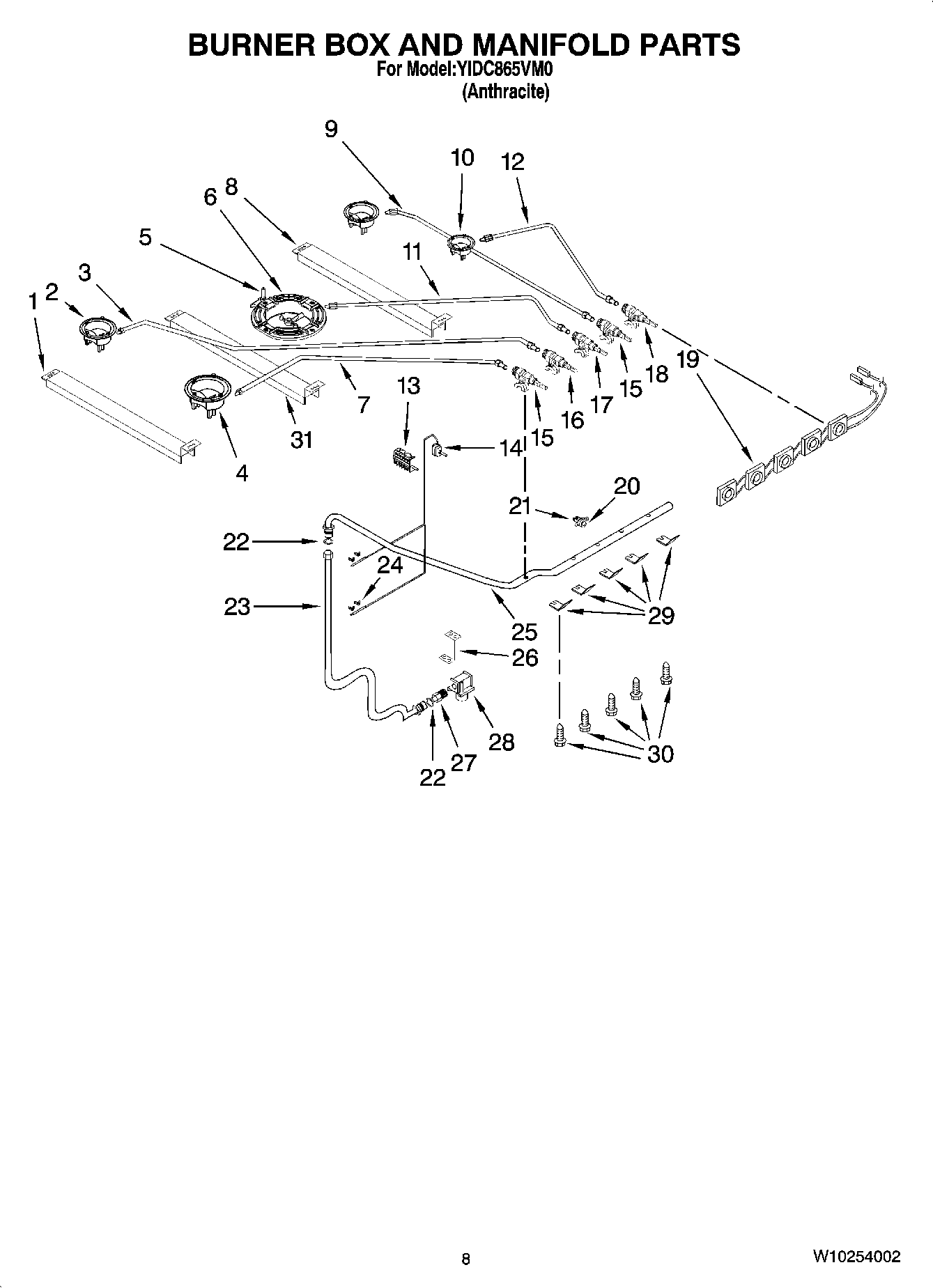

YIDC865VM0 07 – BURNER BOX AND MANIFOLD PARTS

Products

PositionProduct
1Support, Burner
2W10204302 Whirlpool Burner Base
3Tubing, Gas-LR
4Base, Burner (2)
5Igniter, TCB
6W10204299 Whirlpool Burner Base
7Tubing, Gas-LF
8Support, Burner
9Tubing, Gas-RR
10Base, Burner-Aux
11Tubing, Gas-CTR
12Tubing, Gas-RF
13Switch, Oven
14Thermostat, Oven
15Valve, Gas-LF, RR
16W10203799 Whirlpool Burner Valve
17Valve, Gas-CTR
18W10203798 Whirlpool Burner Valve
19Harness, Switch
20Bracket, Thermstat
21Thermostat – 130C
22WASHER
23Tubing, Gas
24Clip, Spring
25Pipe, Manifold
26Bracket, Mounting
27Fitting, Gas
28REGULATOR
29Bracket, Valve
30SCREW
31Support, Burner
