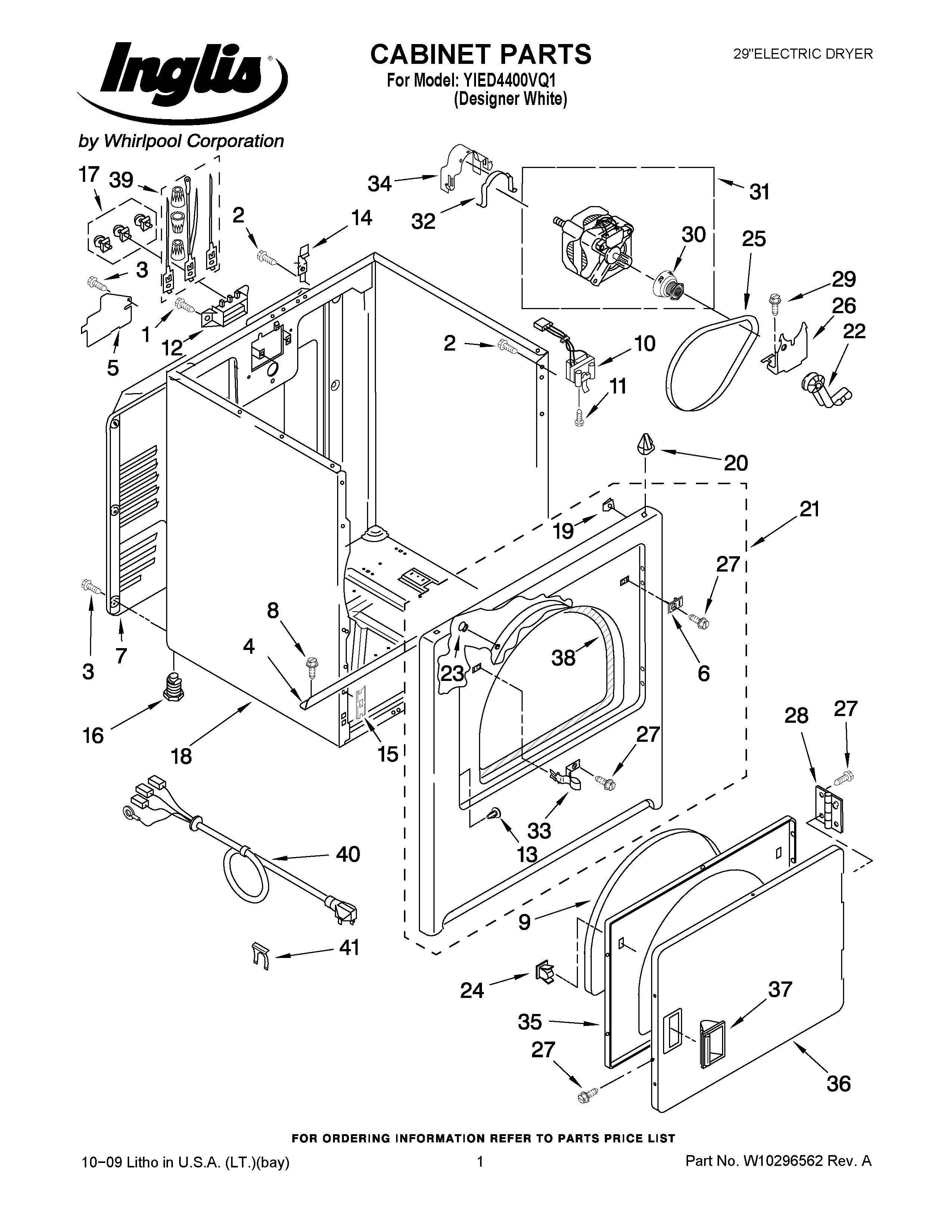

YIED4400VQ1 01 – CABINET PARTS

Products

Position	Product
1	WP308685 Whirlpool Microwave Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	Cover, Block
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	WP3390631 Whirlpool Screw
9	SEAL-DOOR DRYER
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3397659 Whirlpool Terminal Block
13	WP3404413 Whirlpool Plug
14	WP8066217 Whirlpool Hinge
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	W10806345 Whirlpool Panel
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	341241 Whirlpool Dryer Drum Belt
26	WP348780 Whirlpool Base
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	3400500 Whirlpool Screw
30	WP8066184 Whirlpool Dryer Motor Pulley
31	279827 Whirlpool Dryer Drive Motor
32	CLAMP
33	W11429589 Whirlpool Strike
34	WP3404162 Whirlpool Clamp
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	CORD-POWER
41	W11712577 Whirlpool Clip
