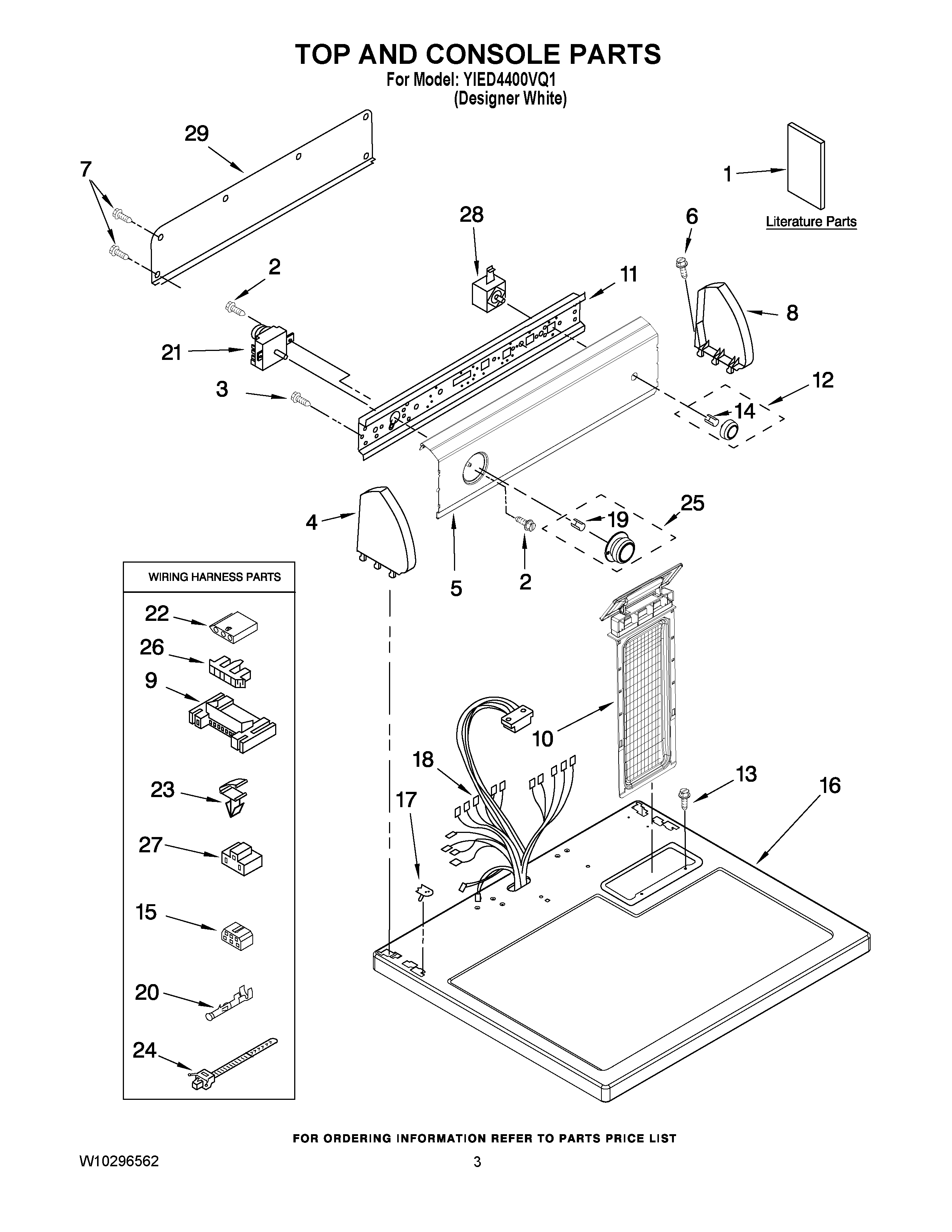

YIED4400VQ1 02 – TOP AND CONSOLE PARTS

YIED4400VQ1 02 – TOP AND CONSOLE PARTS

Written by

in

YIED4400VQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ENERGY GUIDE
1DRYER CYCLE SHEET
1Instructions, Installation
1OWNERS MANUAL
1Wiring Diagram
23400859 Whirlpool Screw
3WP90767 Whirlpool Screw
5Panel, Control
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11Bracket, Control
12Knob, Push-To-Start
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15Block, Disconnect
16Top
17WP357213 Whirlpool Hinge Stopper
18HARNESS, WIRING
19WP688805 Whirlpool Spring Clip
20WP94614 Whirlpool Terminal
21WPW10185972 Whirlpool Timer Assembly
223936144 Whirlpool Connector
23WP3394427 Whirlpool Clip
24Tie, Cable
25WP8557455 Whirlpool Knob Timer
26Connector, Timer
273401144 Whirlpool Connector
28WP3977456 Whirlpool Start Switch
29W10103406 Whirlpool Rear Panel
