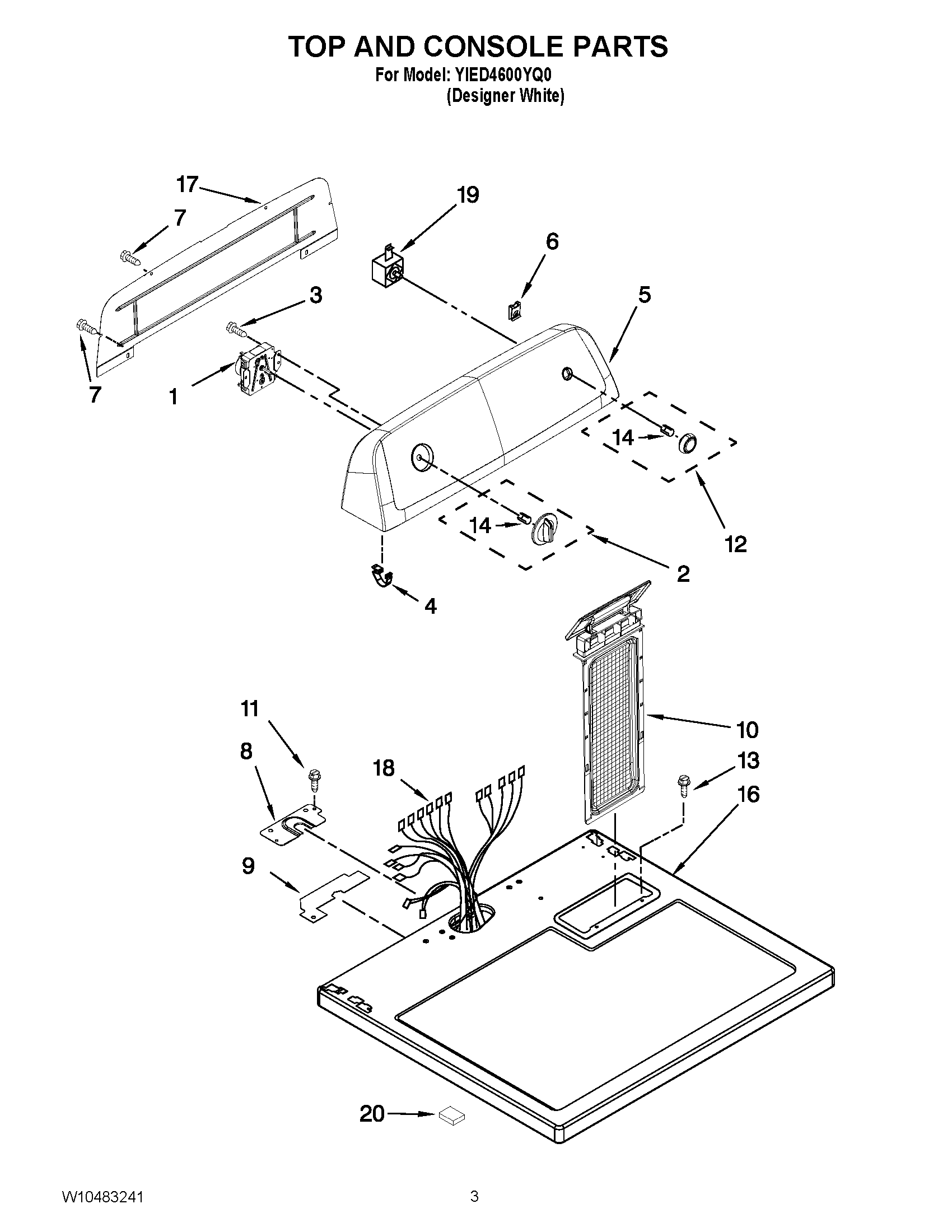

YIED4600YQ0 02 – TOP AND CONSOLE PARTS

YIED4600YQ0 02 – TOP AND CONSOLE PARTS

Written by

in

YIED4600YQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TIMER
2WPW10711289 Whirlpool Washer Control Knob Dryer
4WP8312709 Whirlpool Endcap Clip
5PANEL, CONTROL
6W11213336 Whirlpool Nut
7WP693995 Whirlpool Screw
8BRACKET, HARNESS
9SEAL, HARNESS
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP33001882 Whirlpool Screw
12WPW10453948 Whirlpool Knob
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
16WP8563663 Whirlpool Top Assembly
17WPW10416486 Whirlpool Rear Panel
18HARNESS, WIRING
19WPW10420741 Whirlpool Dryer Start Switch
203389682 Whirlpool Spacer
