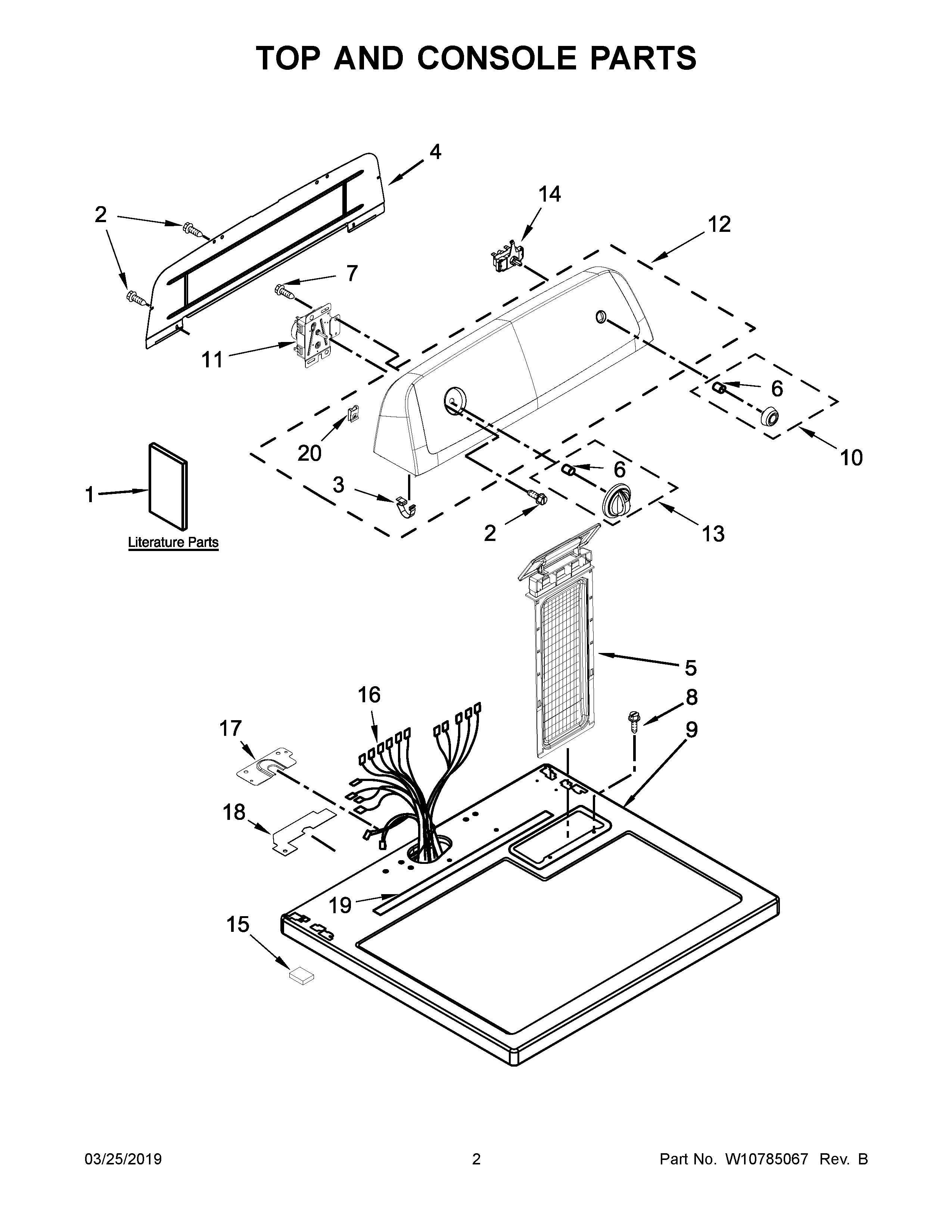

YIED4671EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WPW10416486 Whirlpool Rear Panel
5WPW10717210 Whirlpool Dryer Lint Screen Filter
6WP8536939 Whirlpool Spring Clip
7WP90767 Whirlpool Screw
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453948 Whirlpool Knob
11TIMER
12ASSEMBLY, CONSOLE (WHITE)
13WPW10711289 Whirlpool Washer Control Knob Dryer
14WPW10420741 Whirlpool Dryer Start Switch
153389682 Whirlpool Spacer
16HARNESS, WIRING
17BRACKET, HARNESS
18SEAL, HARNESS
19W10316616 Whirlpool Seal
20W11213336 Whirlpool Nut
