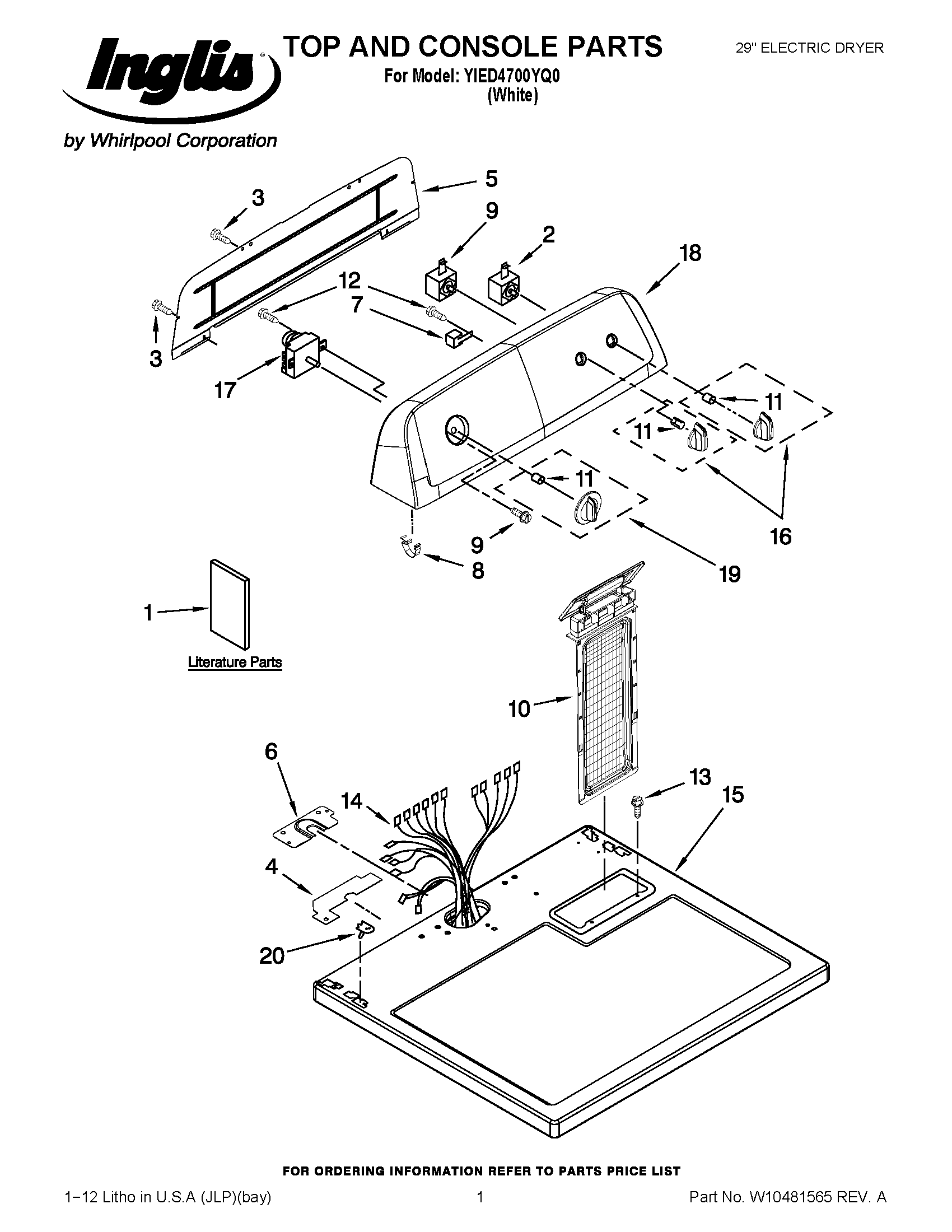

YIED4700YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTIONS
1WIRING DIAGRAM
1USE AND CARE GUIDE
2WPW10446920 Whirlpool Switch Start
3WP693995 Whirlpool Screw
4SEAL, HARNESS
5WPW10416486 Whirlpool Rear Panel
6BRACKET, HARNESS
7WP694419 Whirlpool Buzzer Adjuster
8WP8312709 Whirlpool Endcap Clip
9W11661755 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14HARNESS, WIRING
15WP8563663 Whirlpool Top Assembly
16WPW10453947 Whirlpool Knob
17WPW10436303 Whirlpool Dryer Timer
18PANEL, CONSOLE
19WPW10711289 Whirlpool Washer Control Knob Dryer
20WP357213 Whirlpool Hinge Stopper
