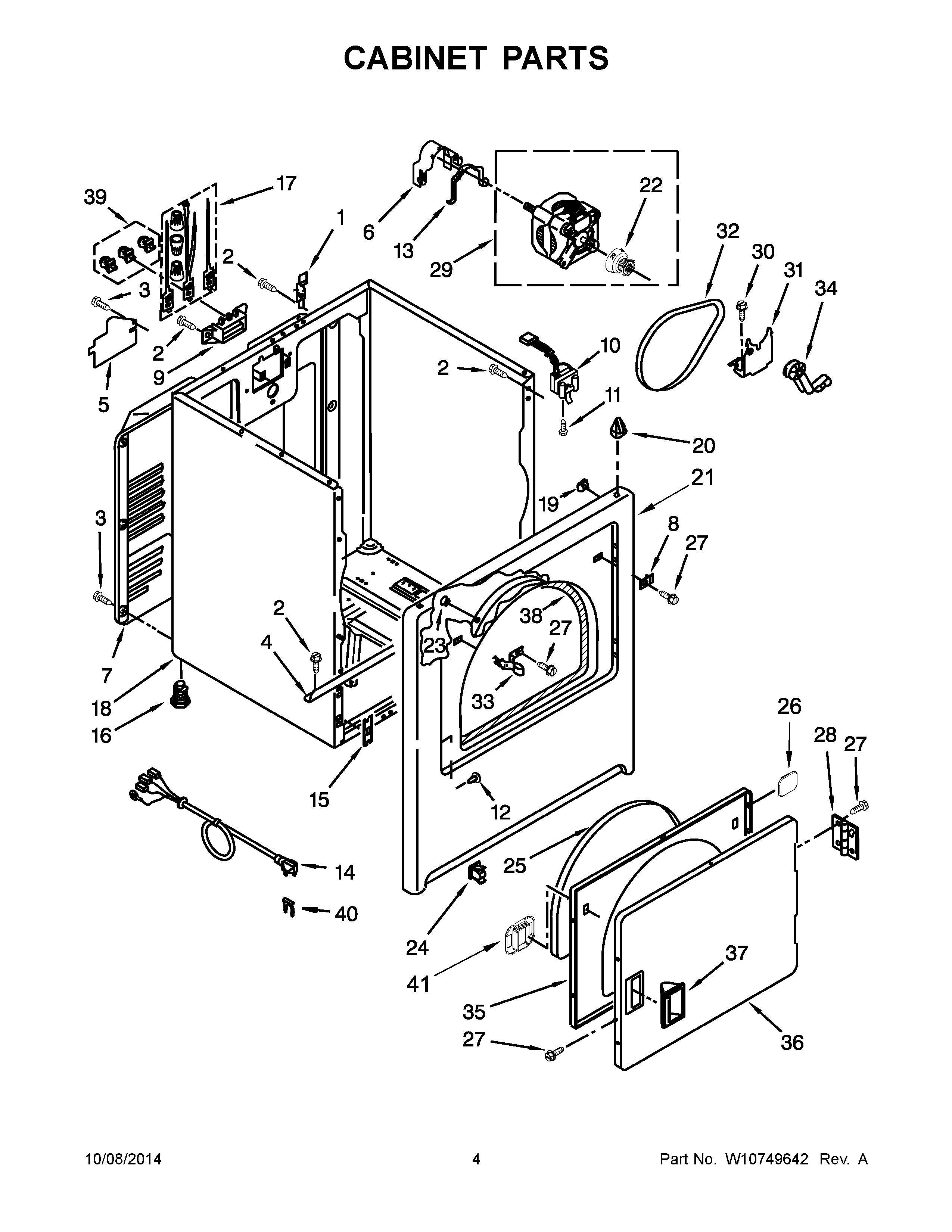

YIED4771DQ0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Hinge, Top
2	SCREW
3	Screw
4	MAY W10236073
5	MAY W10571619
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	MAY 3397659
10	SWITCH, DOOR
11	SCREW
12	PLUG, HINGE HOLES
13	CLAMP, MOTOR MOUNT
14	Power Cord
15	MAY 3394083
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	Panel Front Assembly
22	Pulley, Motor
23	Clip, Felt Pad
24	MAY W10610880
25	SEAL, DOOR
26	COVER, DOOR CATCH
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MOTOR ASSEMBLY
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	DOOR, INNER
36	DOOR FRONT
37	MAY W10549552
38	MAY W10663510
39	MAY 279393
40	STRAIN-RELIEF CLIP
41	BEZEL, DOOR CATCH
