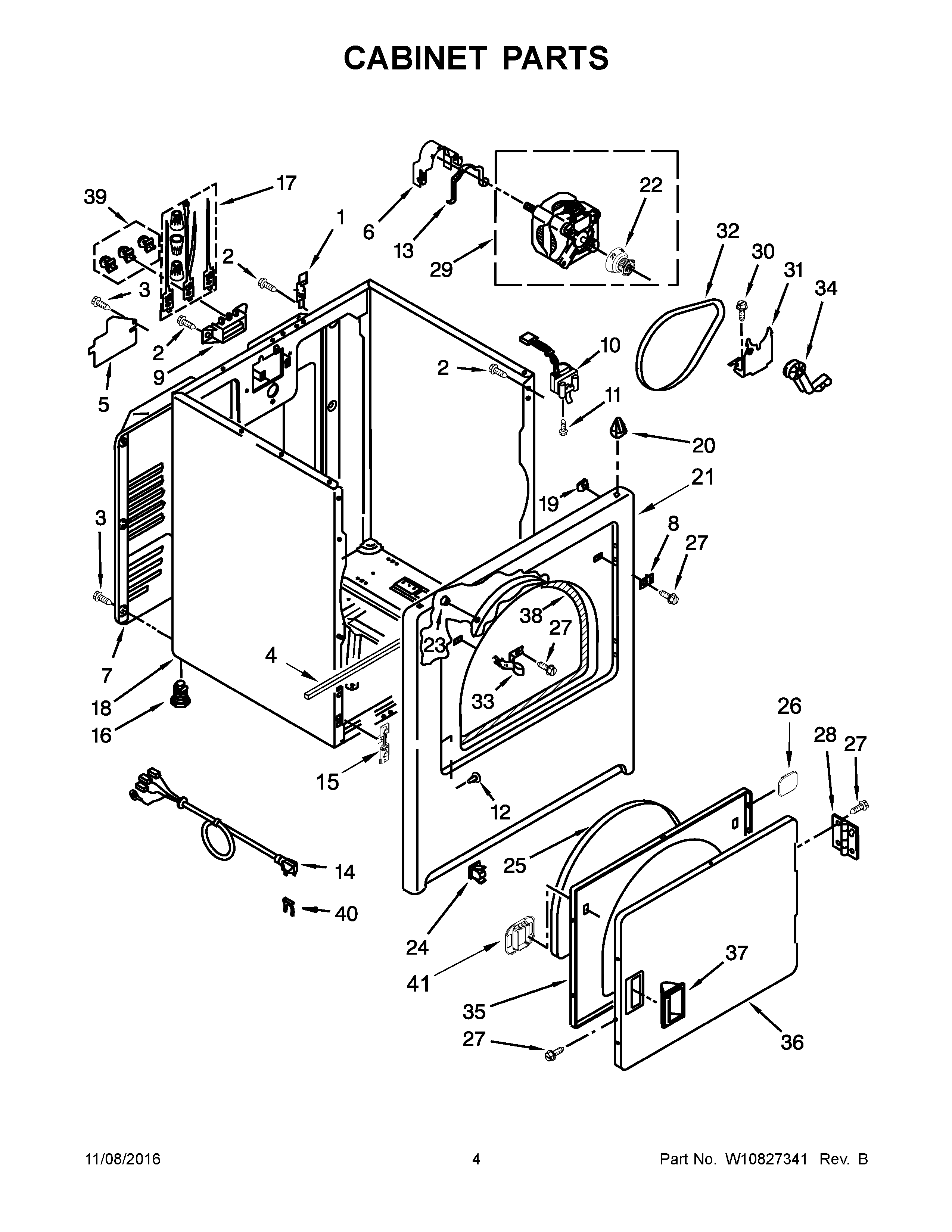

YIED4771EW0 03 – CABINET PARTS

YIED4771EW0 03 – CABINET PARTS

Written by

in

YIED4771EW0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP8066217 Whirlpool Hinge
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4WPW10224768 Whirlpool Foam Spill Guard Seal
5W11298298 Whirlpool Cover
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
8W11684591 Whirlpool Dryer Plug
9WP3397659 Whirlpool Terminal Block
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
13CLAMP
14W11710615 Whirlpool Cord-Power
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21W10806345 Whirlpool Panel
22WP8066184 Whirlpool Dryer Motor Pulley
23279220 Whirlpool Clip
24W11429587 Whirlpool Catch Assembly
25SEAL-DOOR DRYER
26W11173656 Whirlpool Cover
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29279827 Whirlpool Dryer Drive Motor
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33W11429589 Whirlpool Strike
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35WPW10463967 Whirlpool Door Assembly
36W10861227 Whirlpool Door Assembly
37W10909035 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W11712577 Whirlpool Clip
41WPW10529197 Whirlpool Catch Assembly
