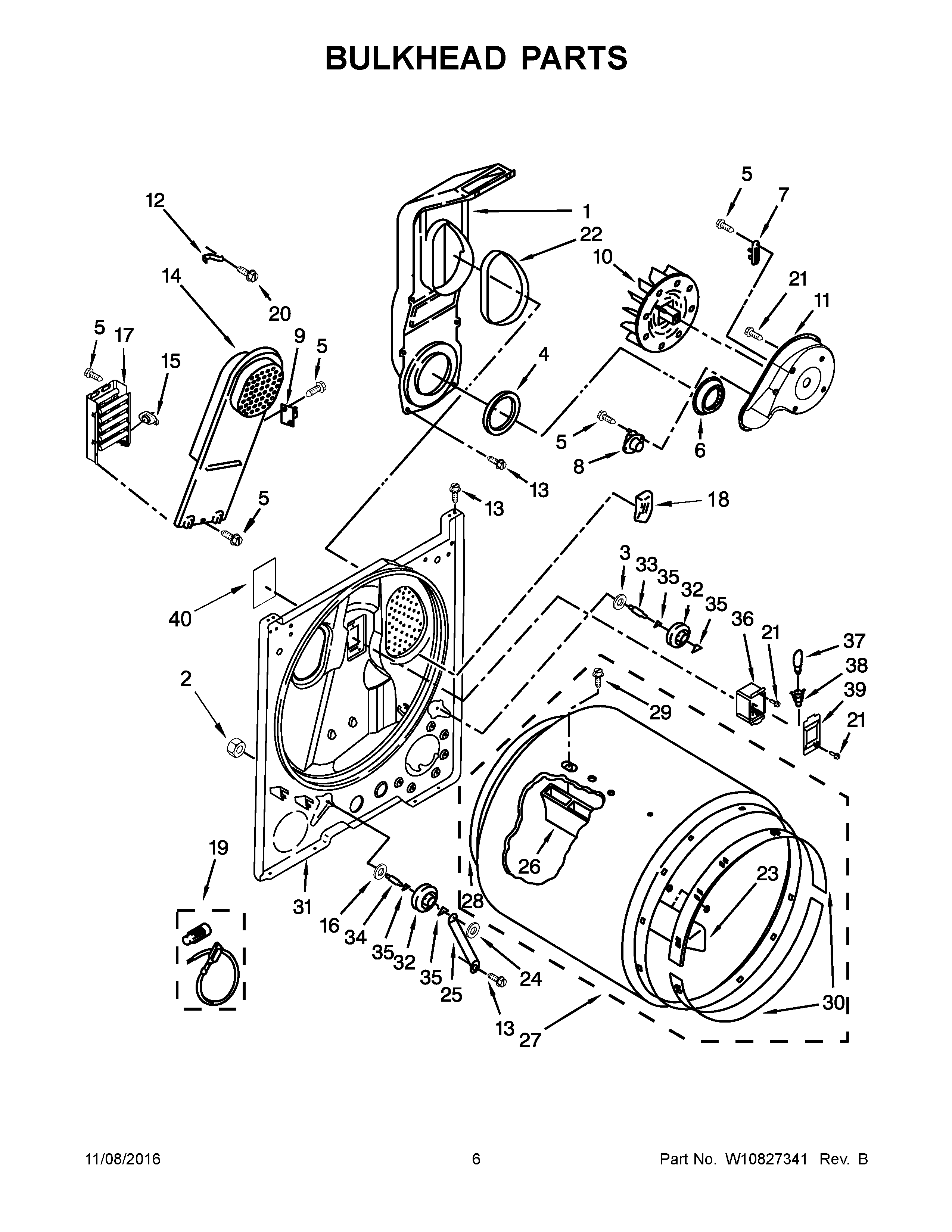

YIED4771EW0 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2W11229607 Whirlpool Nut
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9W10900067 Whirlpool Dryer Cut-Off Timer
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP3390631 Whirlpool Screw
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16WP348197 Whirlpool Washer Assembly
17279838 Whirlpool Dryer Heating Element 5400W
18SENSOR KIT
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP488729 Whirlpool Refrigerator Door Screw
22SEAL
23WP3403636 Whirlpool Drum Baffle
24WP90296 Whirlpool Clip
25W11684613 Whirlpool Bracket
26BAFFLE-DRM
27W10899578 Whirlpool Dryer Drum Assembly
28W10612022 Whirlpool Felt Seal
29W10853898 Whirlpool Screw
30279441 Whirlpool Front Bearing Ring
31W10828905 Whirlpool Bulkhead OS1
32349241T Whirlpool Dryer Drum Support Roller Kit
33SHAFT SUPPORT ROLLER DRYER
34SHAFT SUPPORT ROLLER DRYER
35WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
363977373 Whirlpool Bracket
37WP22002263 Whirlpool Dryer 10W Light Bulb
38W11222979 Whirlpool Socket
39W11226088 Whirlpool Lens Assembly
40W11409002 Whirlpool Pad
