YIED5900HW1 02 – TOP AND CONSOLE PARTS

YIED5900HW1 02 – TOP AND CONSOLE PARTS

Written by

in

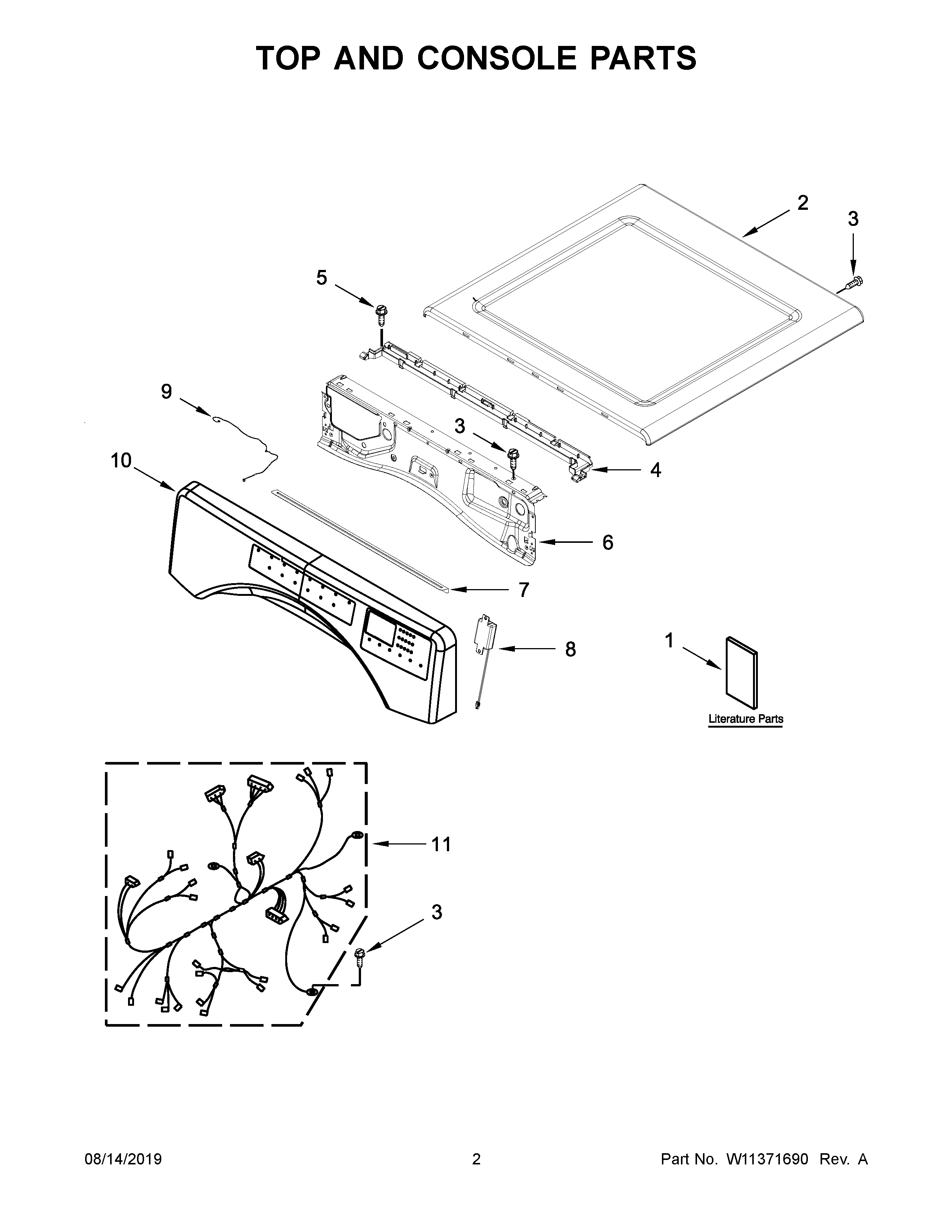

YIED5900HW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1DQUICK START GUIDE
1ATECH SHEET
1USE AND CARE GUIDE
1BINSTALLATION INSTRUCTIONS
2WPW10208383 Whirlpool Top Panel
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7SEAL
8W11123146 Whirlpool Speaker
9W11459337 Whirlpool Wire Harness
10W11375553 Whirlpool Console + Core
11HARNESS, WIRING (MAIN)
