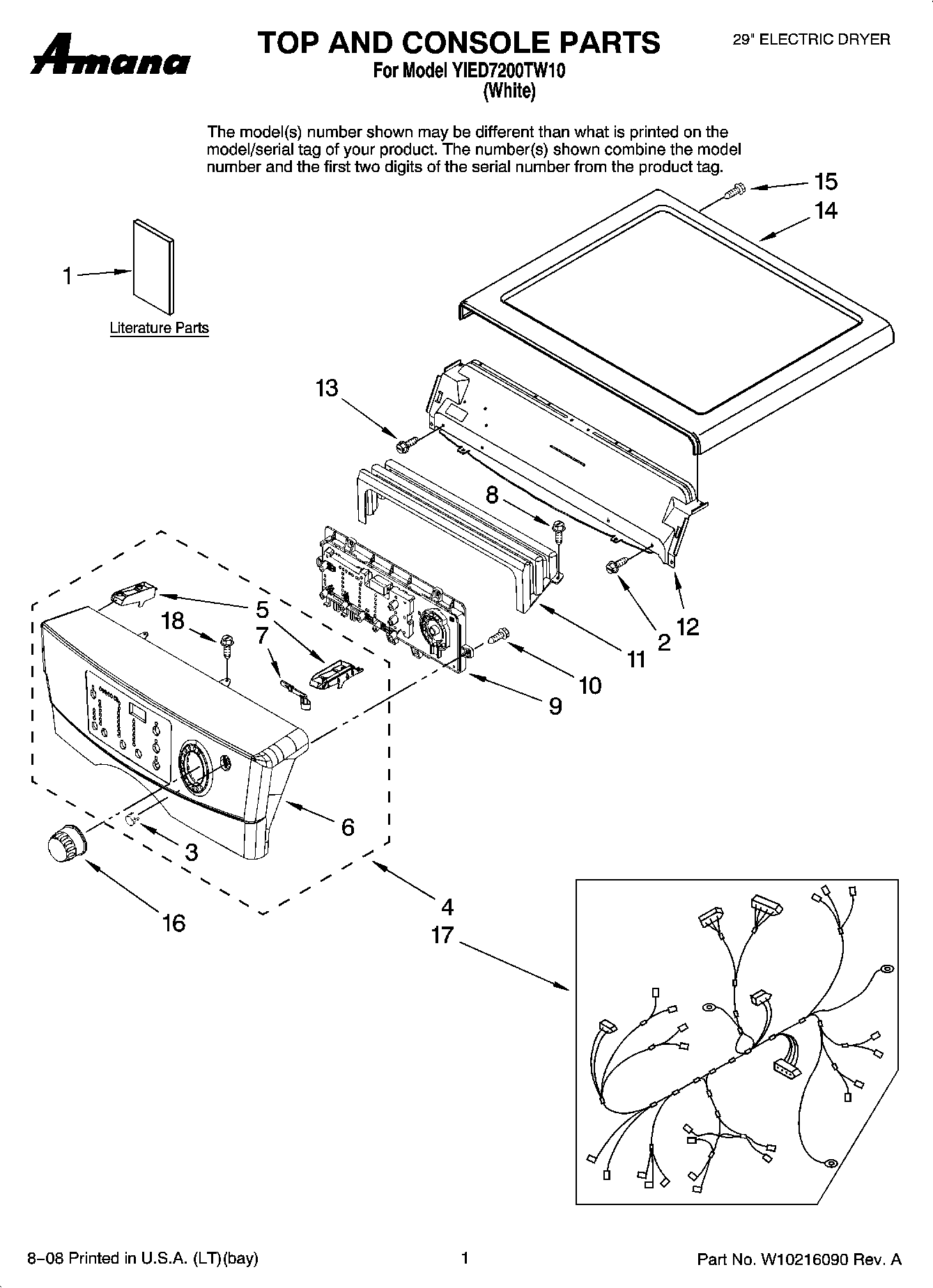

YIED7200TW10 01 – TOP AND CONSOLE PARTS

YIED7200TW10 01 – TOP AND CONSOLE PARTS

Written by

in

YIED7200TW10 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10161019
1MAY 16026881
1Installation, Instruction
2Screw-Tapping (2)
3MAY W10175952
4MAY W10222765
5Bracket, Panel (2)
6MAY 35001229
7LEVER-POWER
8Screw-Tapping (4)
9MAY 35001269
10MAY 6002-000213
11MAY 35001232
12MAY 35001162
13Screw-Tapping
14MAY W10177364
156009-001476 Samsung Washer Dryer Hex Screw Hex+M5 L10 ZPC White
16MAY W10175949
17Harness, Main
18Screw-Tapping (5)
