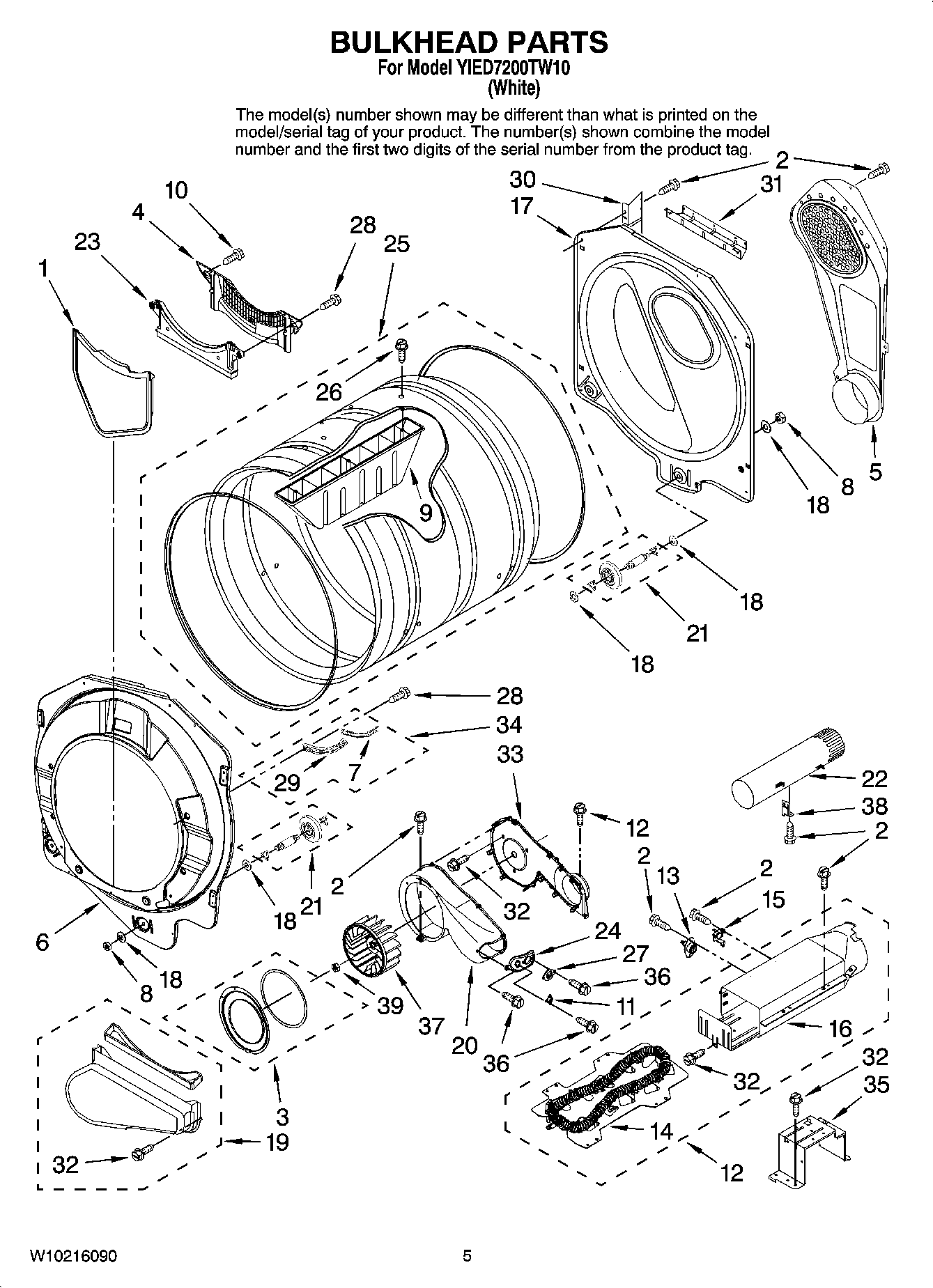

YIED7200TW10 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY W10177426
2	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
3	Cover-Plate Assembly
4	MAY 35001243
5	Air Duct Assembly
6	Bulkhead, Front
7	MAY 35001241
8	MAY 35001132
9	Baffle-Drum
10	MAY 34001214
11	WP35001087 Whirlpool Thermostat
12	MAY W10222771
13	WP35001092 Whirlpool Dryer High Limit Thermostat
14	WP35001247 Whirlpool Heating Element
15	WP35001193 Whirlpool Thermal Fuse
16	Box, Heater
17	MAY W10177410
19	MAY 35001140
20	Housing-Blower Front
21	MAY W10177428
22	Exhaust Pipe
23	MAY 35001144
24	BRACKET-THERMISTOR
25	Assembly, Drum
26	MAY 6002-000215
27	THERMISTOR
28	MAY 6002-001320
29	MAY 35001242
30	Channel Bracket, Rear Bulkhead (2)
31	MAY 35001145
32	Screw-Tapping (5)
33	MAY 35001088
34	Guide-Sensor Assembly
35	Bracket, Heater-Box
36	MAY 6002-00470
37	MAY 35001220
38	MAY 35001155
39	MAY 35001079
