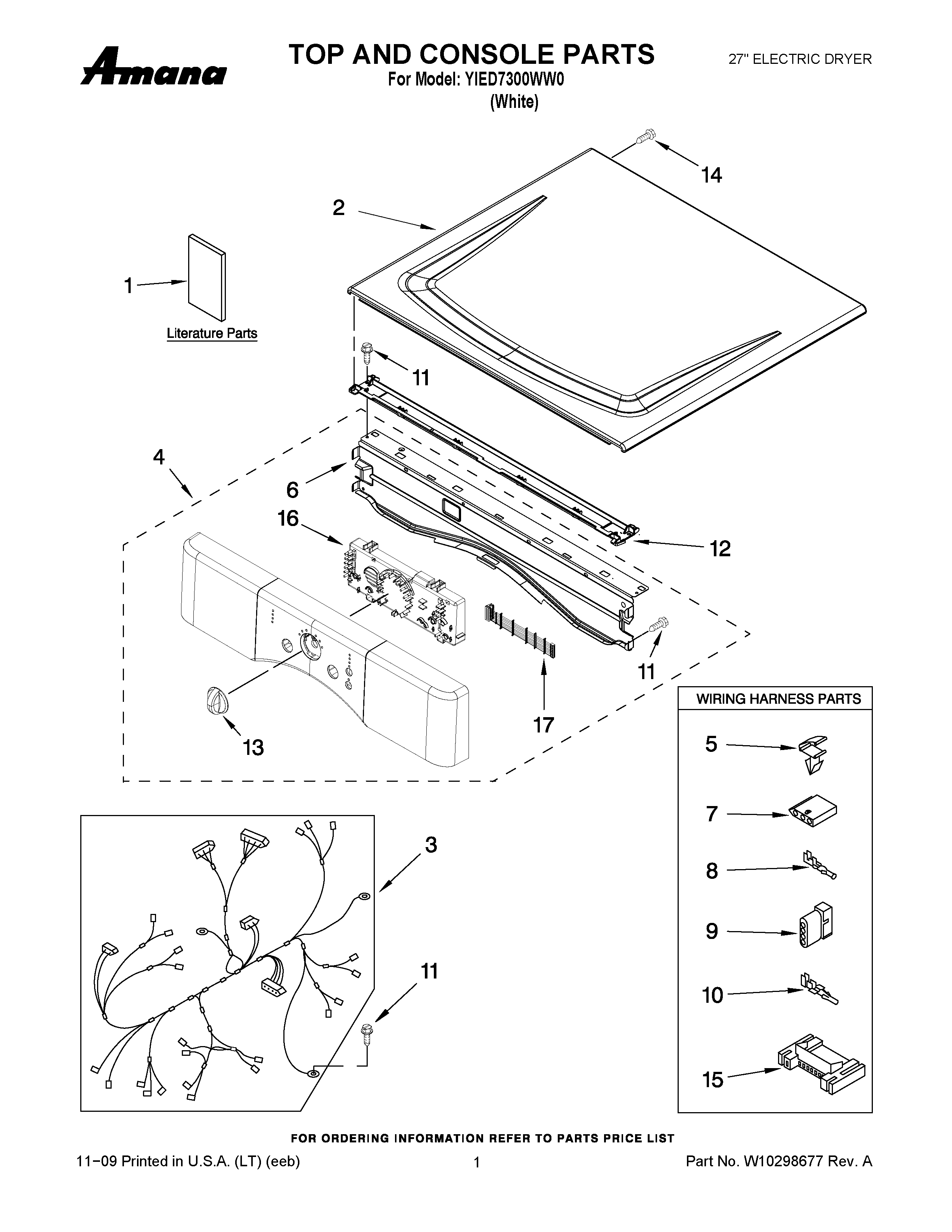

YIED7300WW0 01 – TOP AND CONSOLE PARTS

YIED7300WW0 01 – TOP AND CONSOLE PARTS

Written by

in

YIED7300WW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION, INSTRUCTION
1	MAY W10253344
1	MAY W10238796
2	Top
3	MAY W10251444
4	PANEL, CONSOLE
5	CLIP, HARNESS
6	MAY 8565237
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	CHANEL, WATER
13	ASSEMBLY, KNOB
14	SCREW, TOP
15	CONNECTOR (MOTOR)
16	ASSEMBLY, USER INTERFACE
17	MAY W10259049
