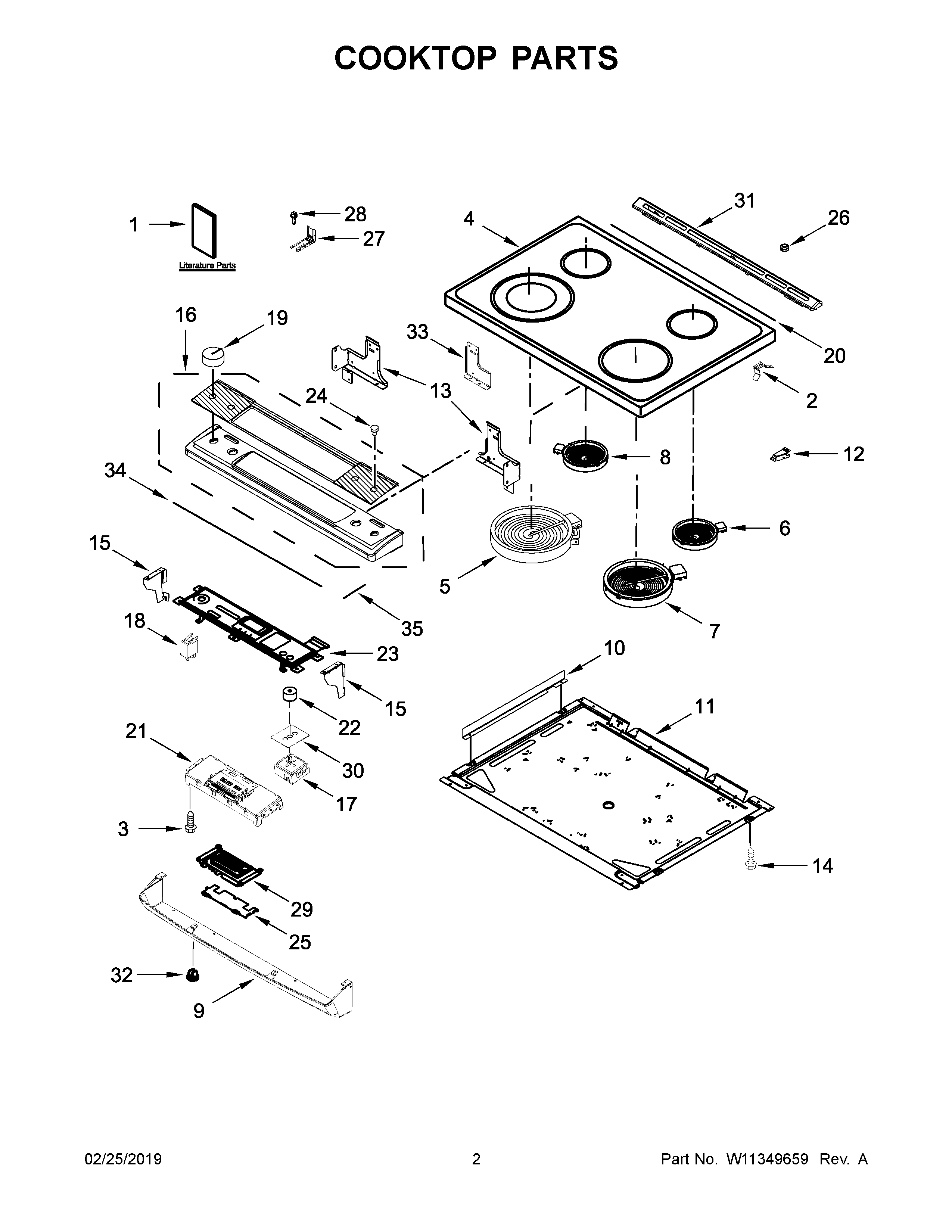

YIEL730CS2 02 – COOKTOP PARTS

Products

Position	Product
NI	WPL W11207144
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10664316 Whirlpool Clip
NI	W11226772 Whirlpool Wire Harness
NI	WPL W11188429
NI	WPL W11188428
NI	W11025616 Whirlpool Wire Harness
1B	SHEET, TECH
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
1C	WIRING DIAGRAM (ENGLISH/FRENCH)
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10751483 Whirlpool Cooktop
5	ELMNT-SURF
6	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
8	WPW10270604 Whirlpool Surface Element
9	W11218703 Whirlpool Mounting Bracket
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13	W10289170 Whirlpool Support Bracket
13A	W10289169 Whirlpool Bracket Support
14	W11244557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16	W10660994 Whirlpool Control Panel
17	SWITCH-INF
17B	W11162115 Whirlpool Infinite Switch
17C	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17A	W10911303 Whirlpool Infinite Switch
18	WP8523265 Whirlpool Indicator Light
19	W11116868 Whirlpool Knob
20	W10802441 Whirlpool Gasket
21	W11355246-includeCORE Whirlpool W11355246 Refrigerator Electronic Control Board + Core
22	W10702912 Whirlpool Switch Gasket
23	W10612579 Whirlpool Membrane Switch
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	W11104127 Whirlpool Bumper Assembly
27	W11502257 Whirlpool Anchor Tip
28	SCREW, ANTI-TIP KIT
29	W11105615-includeCORE Whirlpool W11105615 Refrigerator Electronic Control Board + Core
30	GASKET, SWITCH
31	W11240519 Whirlpool Vent Trim
32	W11025100 Whirlpool Insert
33	W10598048 Whirlpool Support Bracket
34	W10802457 Whirlpool Gasket
35	W11744482 Whirlpool Gasket Assembly
