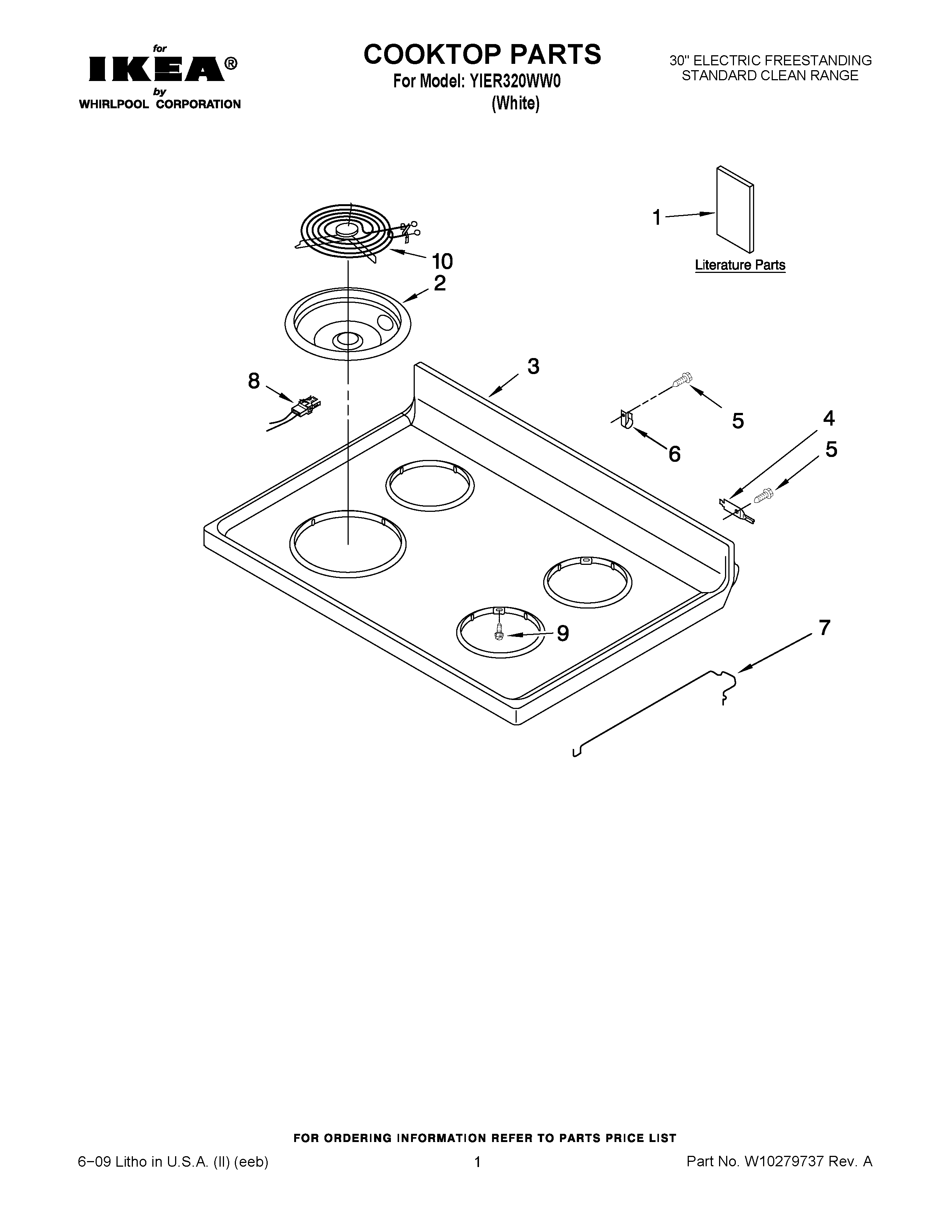

YIER320WW0 01 – COOKTOP PARTS

YIER320WW0 01 – COOKTOP PARTS

Written by

in

YIER320WW0 01 – COOKTOP PARTS

Products

PositionProduct
1Sheet, Tech
1Owners Manual
1Sheet, Tech
1Sheet, Tech French
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Instructions Installation
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
3Cooktop (White)
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8814399 Whirlpool Receptacle Kit
9WP3196154 Whirlpool Screw Assembly
10WP9761346 Whirlpool Stove Surface Burner Element
10WPW10345407 Whirlpool Surface Element
