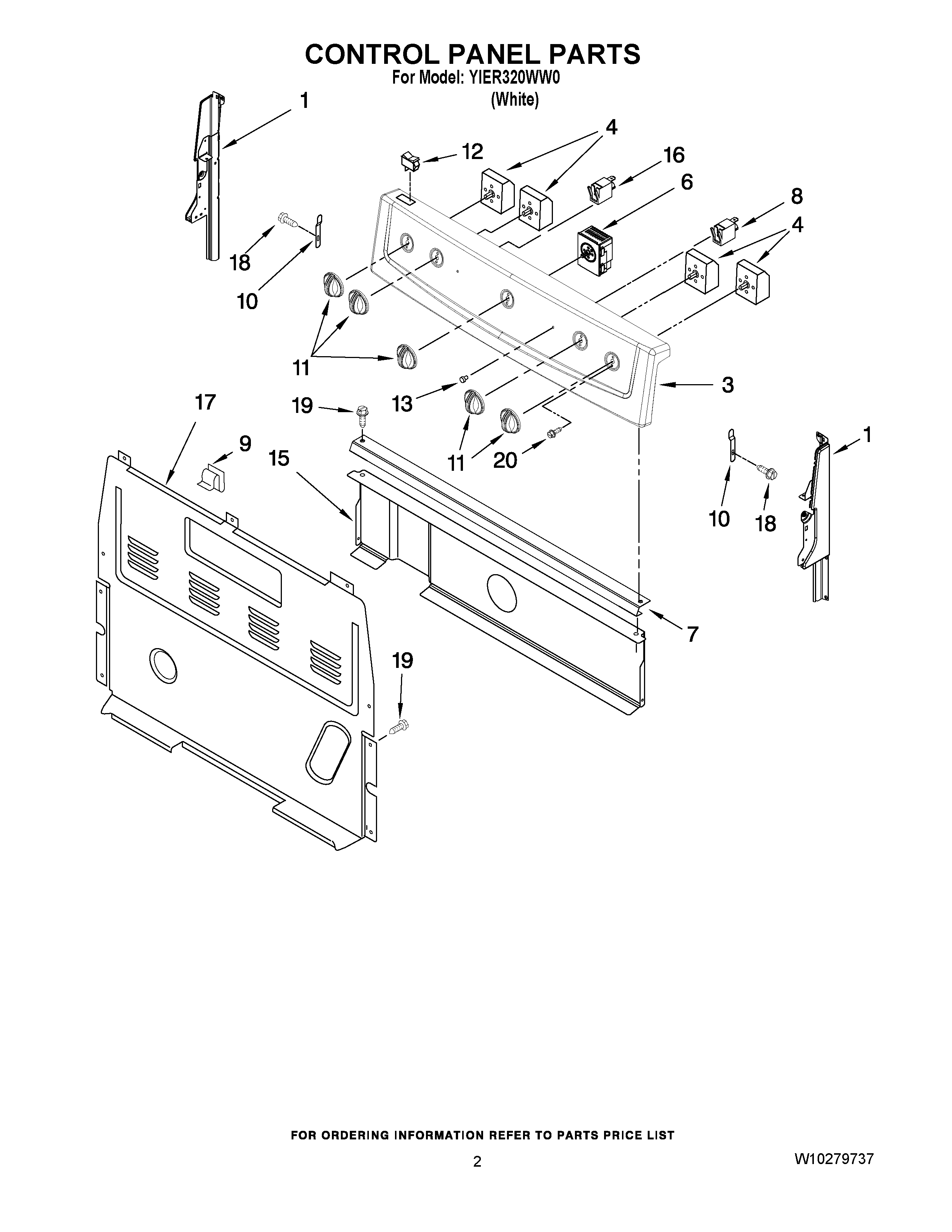

YIER320WW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
3PANEL, BACKGUARD (WHITE)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
6WP9762215 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8WP8523266 Whirlpool Indicator Light
9WP8273564 Whirlpool Clip
103196200 Whirlpool Clip
11W10259208 Whirlpool Knob Assembly
123149360 Whirlpool Light Switch
13WP3196068 Whirlpool Light Lens
15Shield, Heat
16WP8523265 Whirlpool Indicator Light
17WP8272473 Whirlpool Rear Cover
183196166 Whirlpool Screw
19SCREW
20WP3400882 Whirlpool Screw
