YIER660GS0 02 – COOKTOP PARTS

YIER660GS0 02 – COOKTOP PARTS

Written by

in

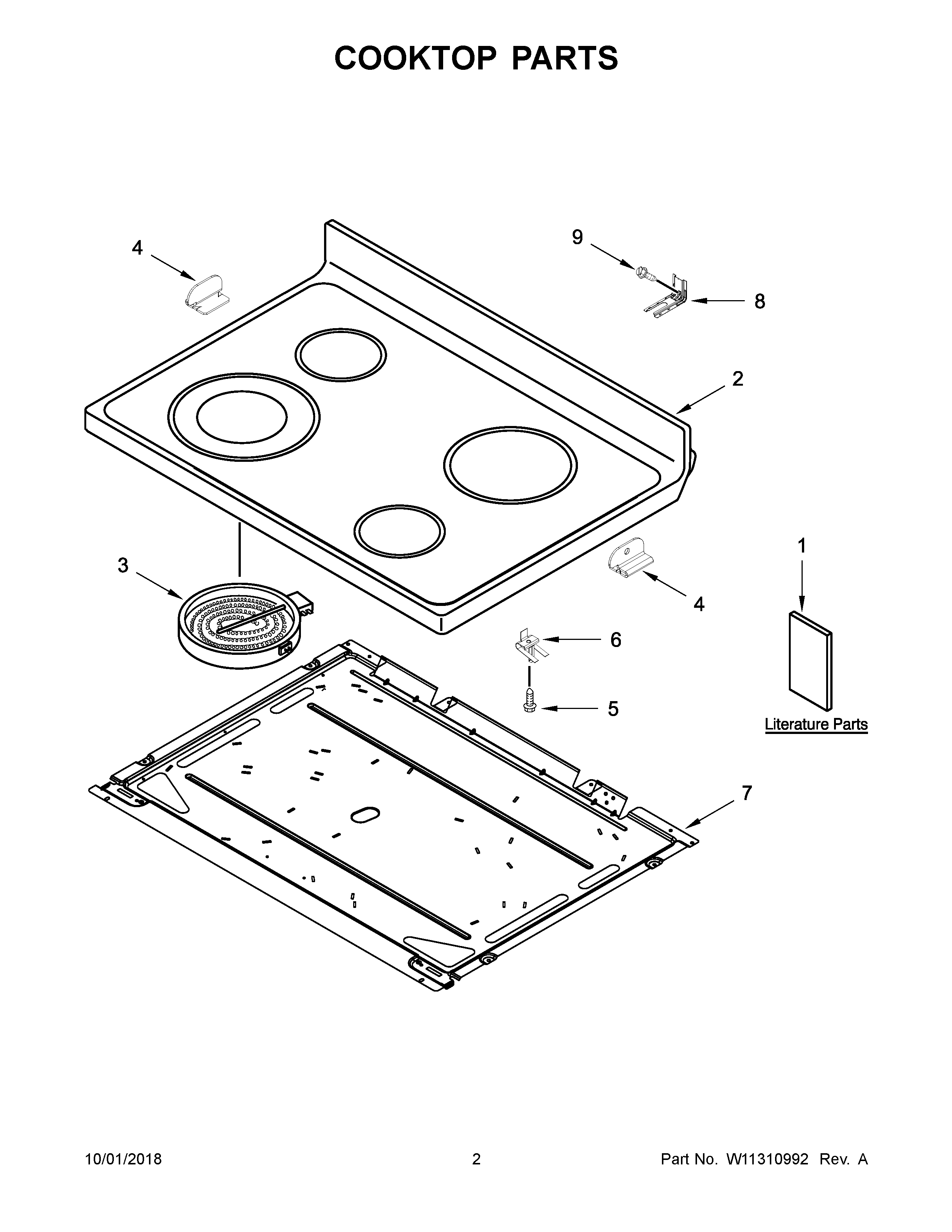

YIER660GS0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (MAIN)
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
1BTECH SHEET (ENGLISH/FRENCH/SPANISH)
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CDIAGRAM, WIRING
2W10908095 Whirlpool Cooktop Assembly
3BWP8273993 Whirlpool Surface Element
3W11517959 Whirlpool Electric Range Radiant Surface Element
3AELMNT-SURF
4AW10607642 Whirlpool Clip
4W10607641 Whirlpool Clip
5WP3196557 Whirlpool Screw
6WPW10225448 Whirlpool Spring Assembly
7PAN
8SCREW, ANTI-TIP KIT
9W11447673 Whirlpool Range Tip Anchor
