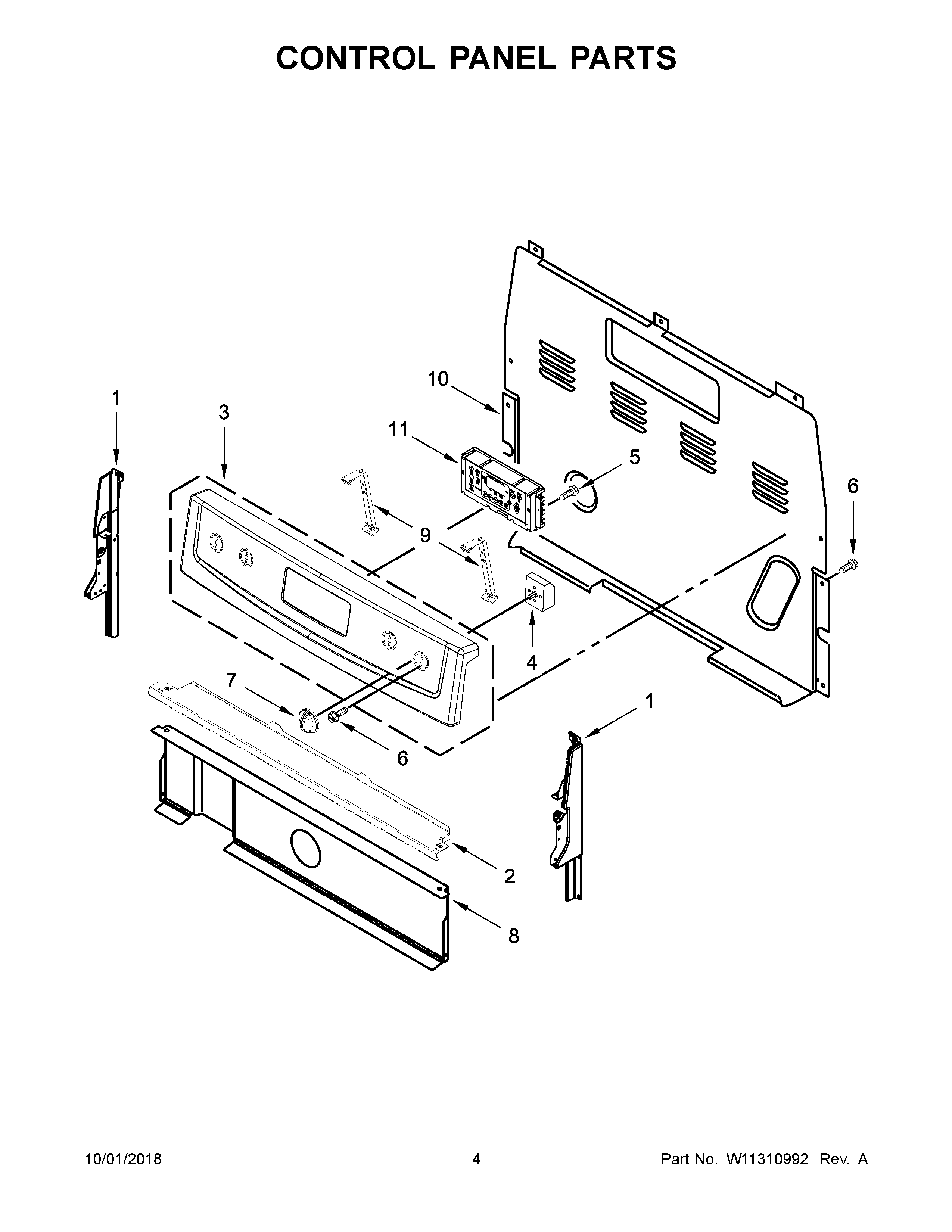

YIER660GS0 03 – CONTROL PANEL PARTS

YIER660GS0 03 – CONTROL PANEL PARTS

Written by

in

YIER660GS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3W11247666 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4BSWITCH-INF
5SCREW
6WP3400882 Whirlpool Screw
7W11210997 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11W11536796-includeCORE Whirlpool W11536796 Refrigerator Electronic Control Board + Core
