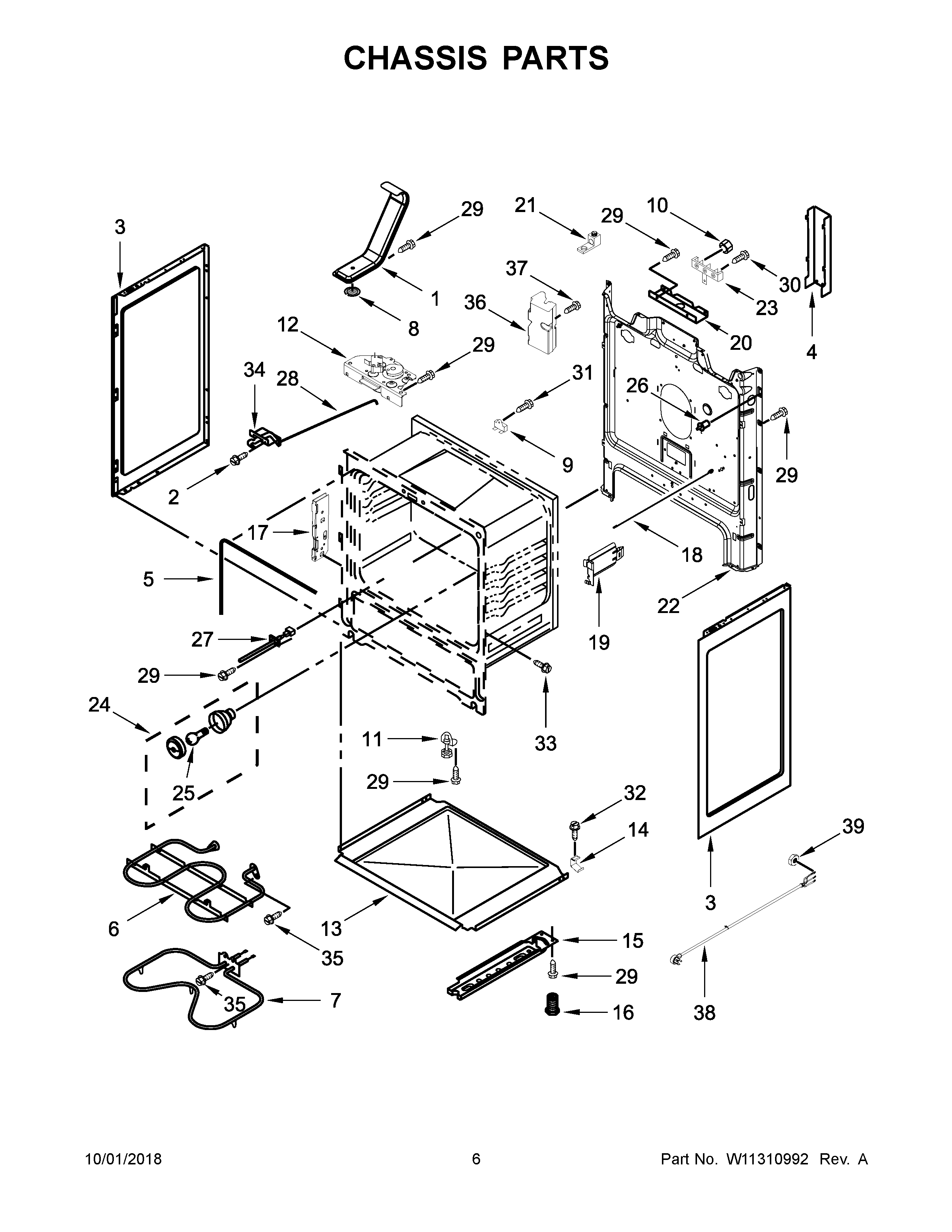

YIER660GS0 04 – CHASSIS PARTS

Products

Position	Product
NI	W11311894 Whirlpool Insulation
NI	W11161831 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684918 Whirlpool Insulation
1	WPW10134285 Whirlpool Vent Tube
2	W11169708 Whirlpool Screw
3	W11730303 Whirlpool Side Panel
4	WPW10326122 Whirlpool Black Cover
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	SCREEN, VENT
9	WP3196548 Whirlpool Thermal Fuse
10	WP3400029 Whirlpool Dishwasher Nut
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10107840 Whirlpool Door Latch
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10647259 Whirlpool Hinge Receiver
18	9757239 Whirlpool Oven Door Rod
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WPW10281322 Whirlpool Connector
22	BACK, MAIN
23	WP8203546 Whirlpool Terminal Block
24	W11594027 Whirlpool Range Oven Light Socket
25	BULB-LIGHT
26	WP9757262 Whirlpool Light Switch
27	WPW10181986 Whirlpool Oven Sensor
28	Rod, Latch
29	SCREW
30	WP3400016 Whirlpool Screw Assembly
31	3196172 Whirlpool Oven Screw
32	W10777162 Whirlpool Screw
33	WPW10067840 Whirlpool Screw
34	WP9761013 Whirlpool Door Latch
35	WP3196154 Whirlpool Screw Assembly
36	W11135752 Whirlpool Anchor Tip
37	W11135756 Whirlpool Screw Torx
38	W11226497 Whirlpool Power Cord
39	Nut
