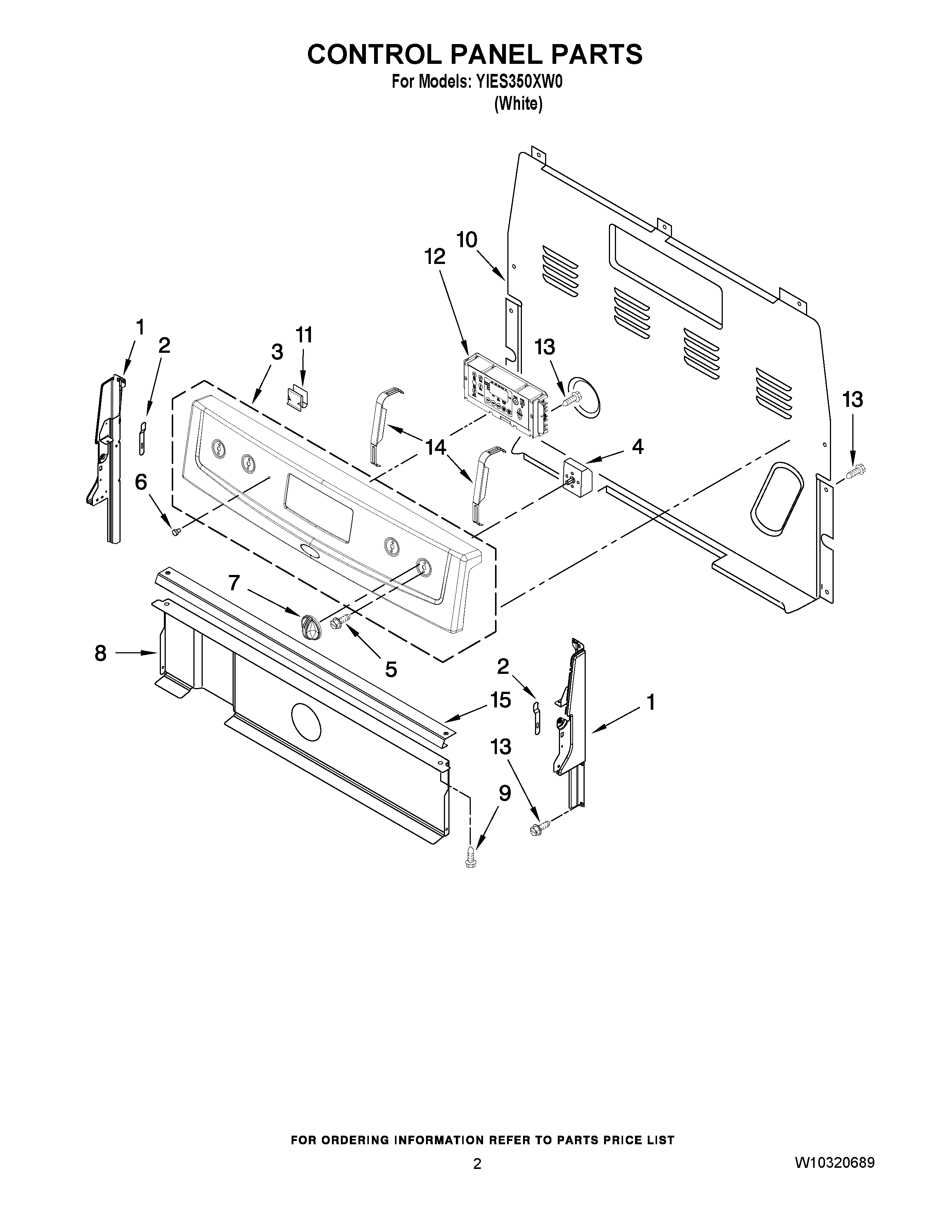

YIES350XW0 02 – CONTROL PANEL PARTS

YIES350XW0 02 – CONTROL PANEL PARTS

Written by

in

YIES350XW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
23196200 Whirlpool Clip
3PANEL, CONSOLE
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP3400882 Whirlpool Screw
6WP3196068 Whirlpool Light Lens
7W10259208 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12WPW10310975 Whirlpool Electronic Control Board
13SCREW
14W11230932 Whirlpool Bracket Mounting
15W10525121 Whirlpool Control Bracket
