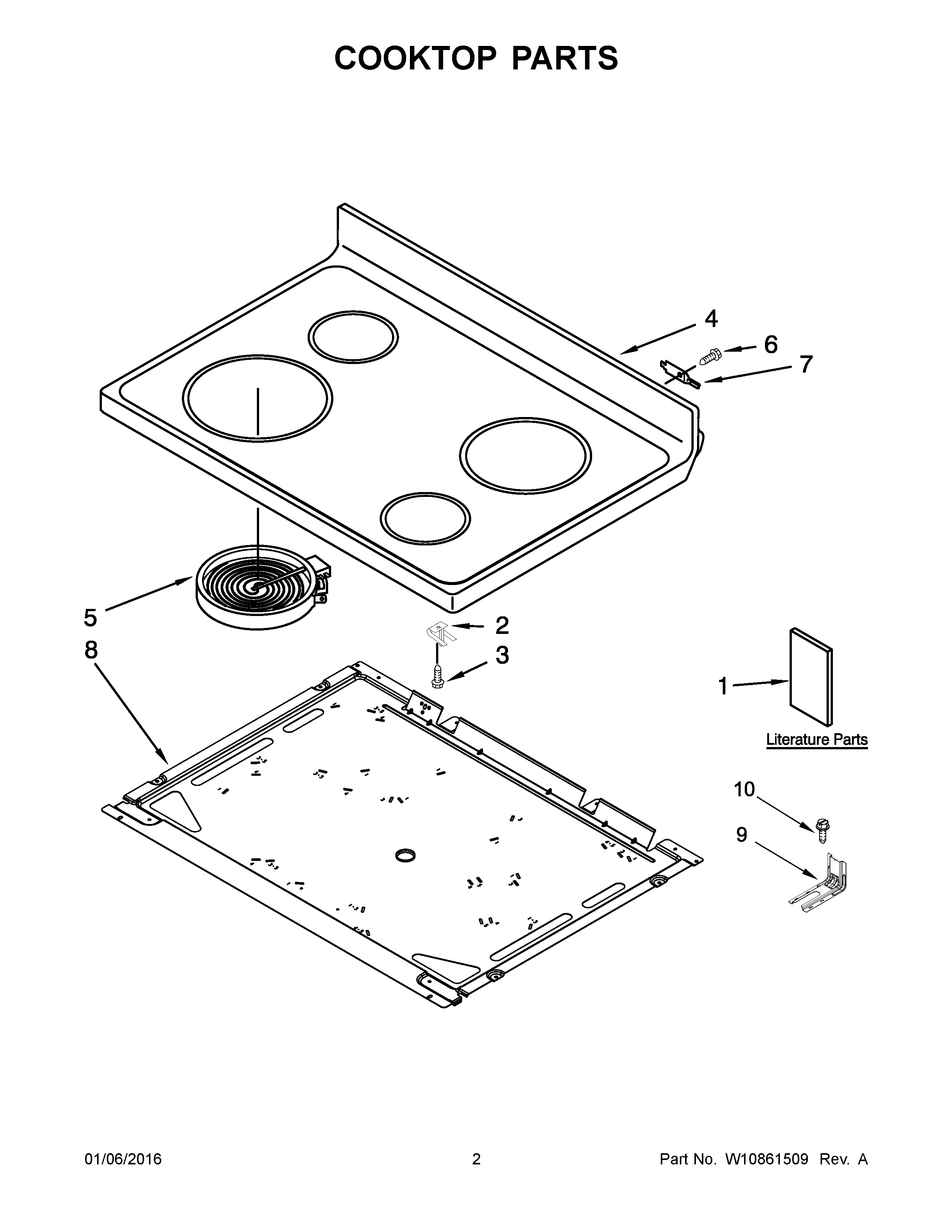

YIES350XW2 02 – COOKTOP PARTS

Products

Position	Product
NI	W11226497 Whirlpool Power Cord
NI	WPW10144763 Whirlpool Tie Wire
NI	W10273584 Whirlpool Wire Harness
NI	W10273585 Whirlpool Wire Harness
NI	W11172424 Whirlpool Wire Harness
NI	WP3196154 Whirlpool Screw Assembly
NI	3184020 Whirlpool Oven Wire
NI	W11244557 Whirlpool Screw
NI	Clip, Ground Wire
NI	HARNESS, MAIN
1	INSTALLATION INSTRUCTIONS
1B	TECH SHEET (ENGLISH)
1C	TECH SHEET (FRENCH)
1D	SAFER COOKING TIPS (ENGLISH
1A	OWNERS MANUAL
1E	Safer Cooking Tips (French)
2	WPW10225448 Whirlpool Spring Assembly
4	W10248202 Whirlpool Cooktop
5	WPW10242957 Whirlpool Element Surface Left Front / Right Rear 2000W
5A	W10823699 Whirlpool Right Front Surface Element
6	WP3196557 Whirlpool Screw
7	WP3195060 Whirlpool Cooktop Pin
8	PAN
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
